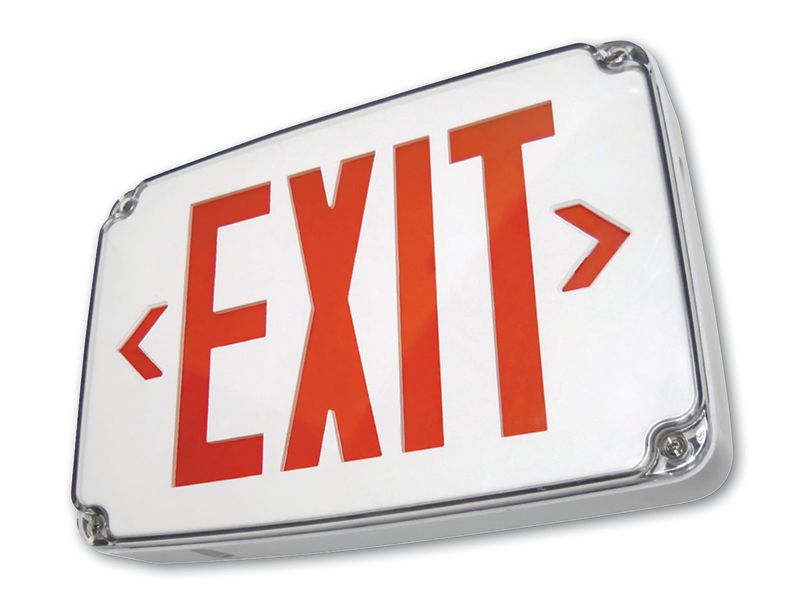

Westgate Wet Location Exit Sign 3.2W, 120-277V - XT-WP-1RB-EM

Key Specification

• Voltage: 120/277V
• LED Power: 3.2W (Red) / 3.8W (Green)
• Emergency Battery: 4.8V Maintenance-Free Ni-Cad
• Emergency Duration: 90 Minutes
• Rated LED Life: 25 Years
• Housing & Lens: UV-Stabilized Polycarbonate, 5VA Flame Rated
• Protection: NEMA 4X
• Location Rating: UL Listed for Wet Locations
• Operating Temperature: Down to -4°F
• Mounting: Top or Back Mount, Single Face
• Canopy: Universal Side or Top Mount for Wall/Ceiling Installation
• Arrows: Snap-Out Left or Right Arrows
• Housing: Impact Resistant with Seamless Silicone Gasket
• Test Switch: Push-Style with Red Indicator Light
• Certifications: UL924 & NFPA 101 Life Safety Code
• Finish: White

The Westgate Wet Location LED Exit Sign with Emergency Battery Backup is a durable and dependable emergency egress solution designed for environments exposed to moisture, humidity and water. Featuring a low-energy 3.2W LED system and a wide 120–277V AC input range, it provides clear exit identification during normal operation and power interruptions. Its wet-location design makes it suitable for demanding commercial, industrial and outdoor-adjacent applications.

Ideal Applications

• Wet and damp locations
• Warehouses and industrial facilities
• Parking garages
• Outdoor covered areas
• Commercial buildings
• Restaurants and food-service facilities
• Pool and recreational areas
• Manufacturing facilities
• Schools and institutional buildings
• Stairwells and emergency exit routes
• Areas exposed to moisture or humidity
• Emergency egress applications

What's Included / Features

The Westgate XT-WP-1RB-EM is designed to provide reliable exit identification in locations where conventional exit signs may not be suitable. Its 3.2W LED system provides efficient and long-lasting illumination, while the wide 120–277V AC input range allows flexible installation across a variety of electrical systems. The integrated emergency battery backup helps maintain exit illumination when normal power is interrupted.

Built specifically for wet-location applications, the fixture is designed to withstand exposure to moisture and demanding environmental conditions. Its durable enclosure provides added protection for the internal components, while the energy-efficient LED technology helps reduce energy consumption and maintenance requirements. This makes it a practical choice for commercial, industrial and institutional facilities requiring dependable emergency exit visibility in challenging locations.

Key Features:

• Product Type: Wet Location LED Exit Sign
• Model: XT-WP-1RB-EM
• Power Consumption: 3.2W
• Input Voltage: 120–277V AC
• Light Source: LED
• Emergency Battery Backup: Integrated
• Wet Location Rated
• Durable Protective Housing
• Energy-Efficient LED Technology
• Low-Maintenance Operation
• Reliable Emergency Egress Illumination
• Designed for Moisture-Prone Environments
• Suitable for Commercial and Industrial Applications
• Ideal for: Parking garages, warehouses, industrial facilities, covered outdoor areas, pool areas, restaurants, schools, stairwells and emergency exit routes
