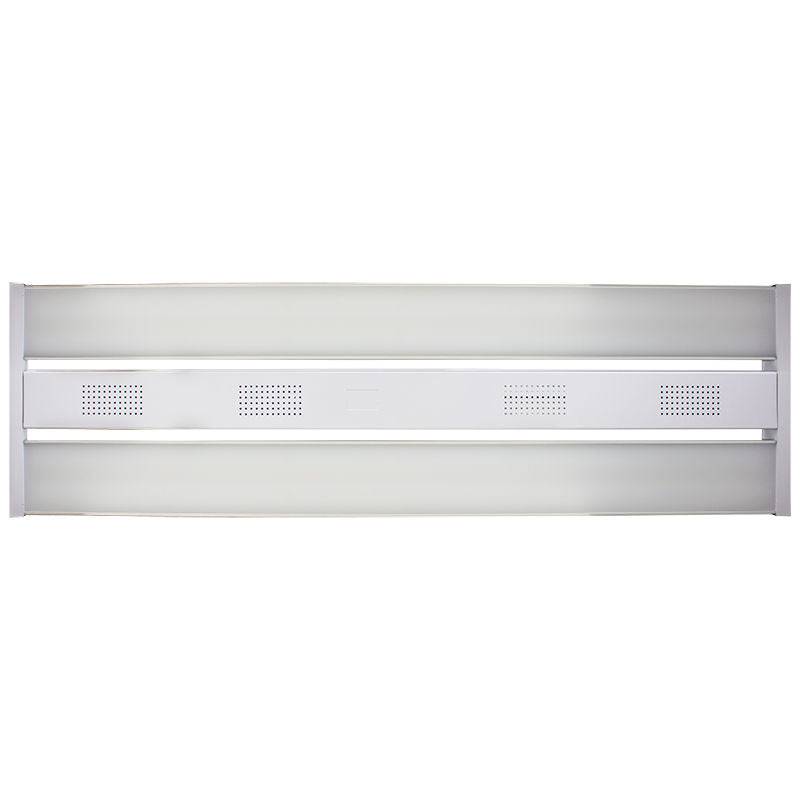

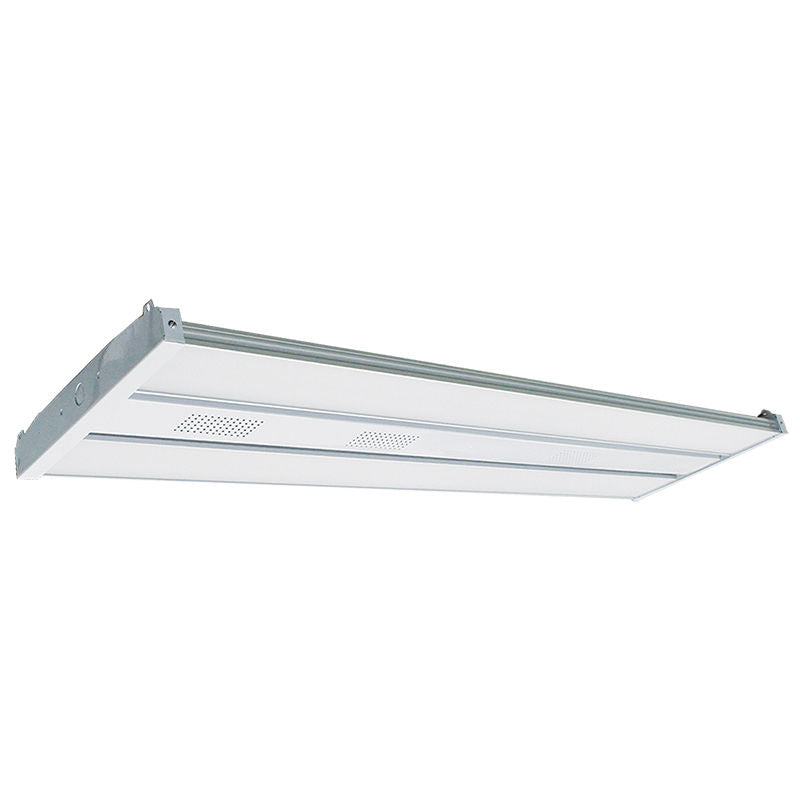

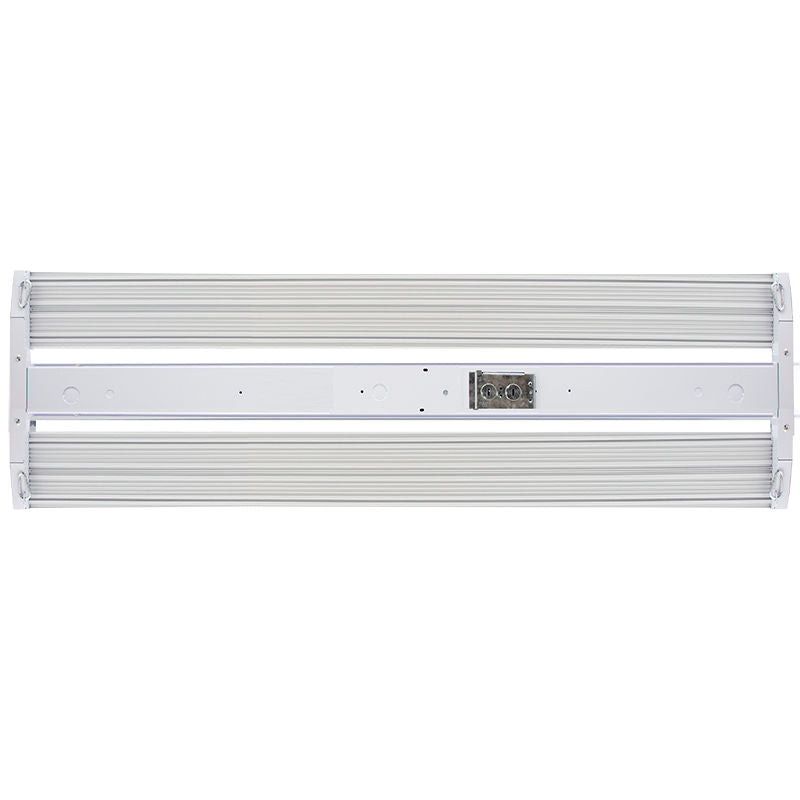

Westgate Multi Power 4th Generation of Linear High Bays 150W/200W/300W, 120~277V, 5000K - LLHB4-300W-MP-50K-D

The Westgate Multi Power 4th Generation Linear High Bay is a high-output LED lighting solution designed for large commercial, industrial and high-ceiling environments. It features selectable power settings of 150W, 225W and 300W, delivering up to 40,800 lumens with a 5000K colour temperature. With a wide 120–277V AC input range and 136 LPW efficacy, it provides powerful and efficient illumination for demanding applications.

Ideal Applications

• Warehouses and distribution centres
• Manufacturing plants
• Industrial facilities
• Commercial buildings
• Grocery stores and supermarkets
• Gymnasiums and sports facilities
• Cold storage facilities
• Large storage areas
• High-ceiling commercial spaces
• Production and workshop areas

What's Included / Features

The Westgate LLHB4-300W-MP-50K-D combines high-output LED performance with multi-power flexibility, allowing the installer to select the appropriate power level for the application. The fixture is designed to provide up to 40,800 lumens at an efficacy of 136 LPW, making it suitable for large spaces that require bright and consistent illumination. Its fixed 5000K colour temperature provides a crisp, daylight-style appearance suitable for industrial and commercial environments.

Constructed with a 24-gauge steel housing, aluminium LED board and polycarbonate lens, this linear high bay is built for demanding commercial and industrial environments. It operates from 120–277V AC at 50–60 Hz, features 0–10V dimming, surge protection and a power factor greater than 0.95. The fixture is also suitable for damp locations and operates in temperatures from -4°F to 104°F.

Key Features:

• Product Type: 4th Generation Linear High Bay
• Selectable Wattage: 150W / 225W / 300W
• Colour Temperature: 5000K
• Maximum Output: 40,800 lumens
• Efficacy: 136 LPW
• Input Voltage: 120–277V AC
• Frequency: 50–60 Hz
• Power Factor: >0.95
• Dimming: 0–10V dimmable
• Housing: 24-gauge steel
• LED Board: Aluminium
• Lens: Polycarbonate
• CRI: >80
• Beam Angle: Wide
• Surge Protection: Yes
• Operating Temperature: -4°F to 104°F
• Location Rating: Suitable for damp locations
• Multi-Power: Switch located on the driver
• Model: LLHB4-300W-MP-50K-D
• Applications: Warehouse, manufacturing, distribution, industrial, commercial, grocery, gymnasium and cold storage
