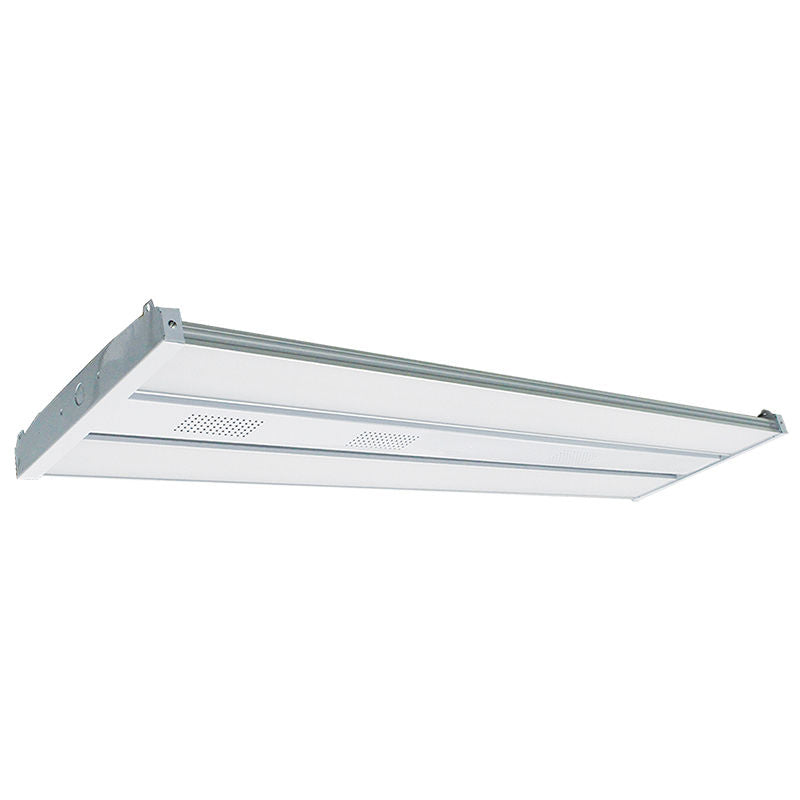

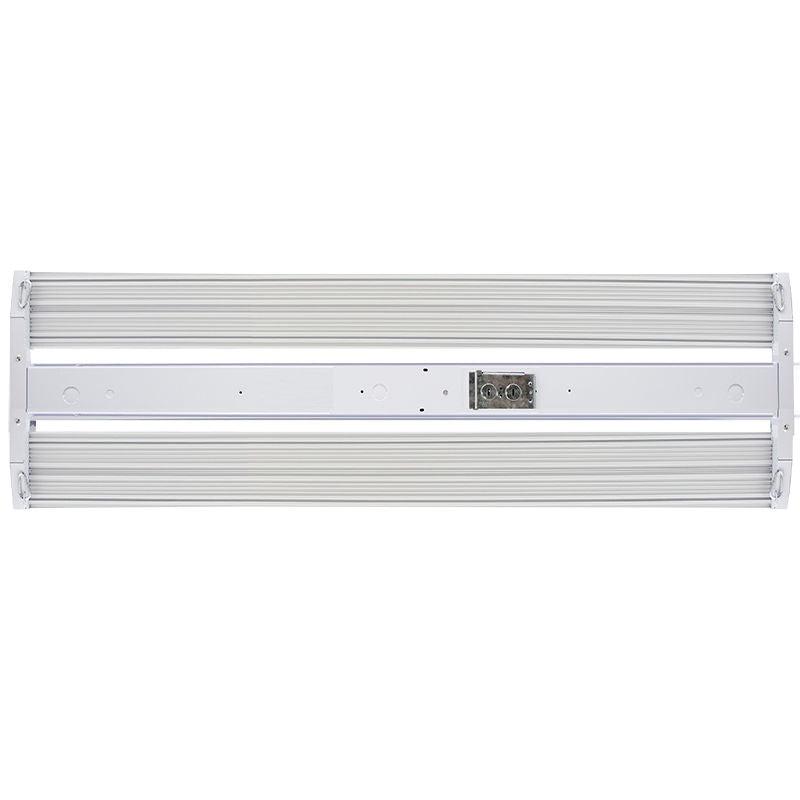

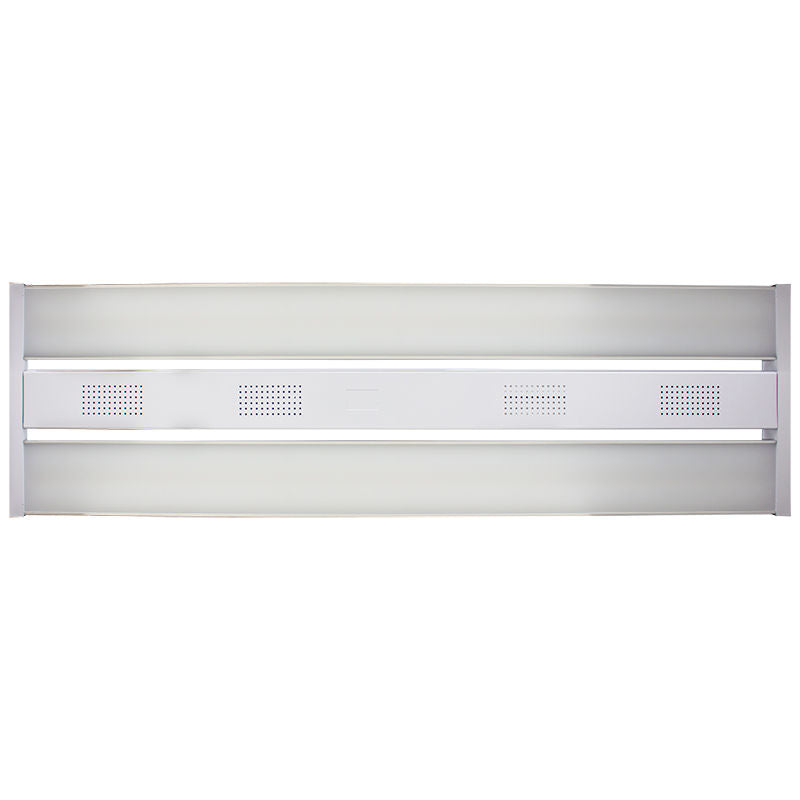

Westgate Multi Power 4th Generation of Linear High Bays 100W/150W/200W,120~277V, 5000K - LLHB4-200W-MP-50K-D

Key Specification

• Wattage: 100W / 150W / 200W
• Voltage: 120–277V AC, 50–60Hz
• Efficacy: 155 LPW
• Total Lumens: Up to 27,200 LM
• Color Temperature: 5000K
• Dimming: 0–10V Dimmable
• Power Factor: >0.95
• CRI: >80
• Beam Angle: Wide Beam
• Lens: Polycarbonate
• Housing: Steel, 24 Gauge
• Operating Temperature: -4°F to 104°F
• Location Rating: Suitable for Damp Locations
• Multi-Power: Switch located on the driver
• Surge Protection: Included

The Westgate Multi Power 4th Generation Linear High Bay is a high-performance LED lighting solution designed for demanding commercial, industrial and high-ceiling applications. It features selectable power settings of 100W, 150W and 200W, providing flexibility for different lighting requirements. With a maximum output of 27,200 lumens, 155 LPW efficacy and a 5000K colour temperature, it delivers bright, efficient illumination for large spaces. The fixture operates on a wide 120–277V AC input range for versatile installation.

Ideal Applications

• Warehouses and distribution centres
• Manufacturing plants
• Industrial facilities
• Commercial buildings
• Grocery stores and supermarkets
• Gymnasiums and sports facilities
• Cold storage facilities
• Large storage areas
• High-ceiling commercial spaces
• Production and workshop areas

What's Included / Features

The Westgate LLHB4-200W-MP-50K-D combines high-output LED performance with multi-power flexibility. Its selectable 100W/150W/200W configuration allows the installer to adjust the fixture's power according to the lighting requirements of the space. At its maximum setting, the high bay produces up to 27,200 lumens with an efficacy of 155 LPW, making it suitable for applications where powerful and energy-efficient illumination is required.

Built with a 24-gauge steel housing, aluminium LED board and polycarbonate lens, the fixture is designed for reliable operation in commercial and industrial environments. It features 0–10V dimming, a power factor greater than 0.95, surge protection and a wide beam angle. The fixture operates from 120–277V AC at 50–60 Hz and is suitable for damp locations, with an operating temperature range of -4°F to 104°F.

Key Features:

• Product Type: 4th Generation Linear High Bay
• Selectable Wattage: 100W / 150W / 200W
• Colour Temperature: 5000K
• Maximum Lumens: 27,200 LM
• Efficacy: 155 LPW
• Input Voltage: 120–277V AC
• Frequency: 50–60 Hz
• Power Factor: >0.95
• Dimming: 0–10V dimmable
• Housing: Steel
• Steel Thickness: 24 Gauge
• LED Board: Aluminium
• Lens: Polycarbonate
• CRI: >80
• Beam Angle: Wide
• Surge Protection: Yes
• Operating Temperature: -4°F to 104°F
• Location Rating: Suitable for damp locations
• Multi-Power: Switch located on the driver
• Model: LLHB4-200W-MP-50K-D
• Applications: Warehouse, manufacturing, distribution, industrial, commercial, grocery, gymnasium and cold storage
