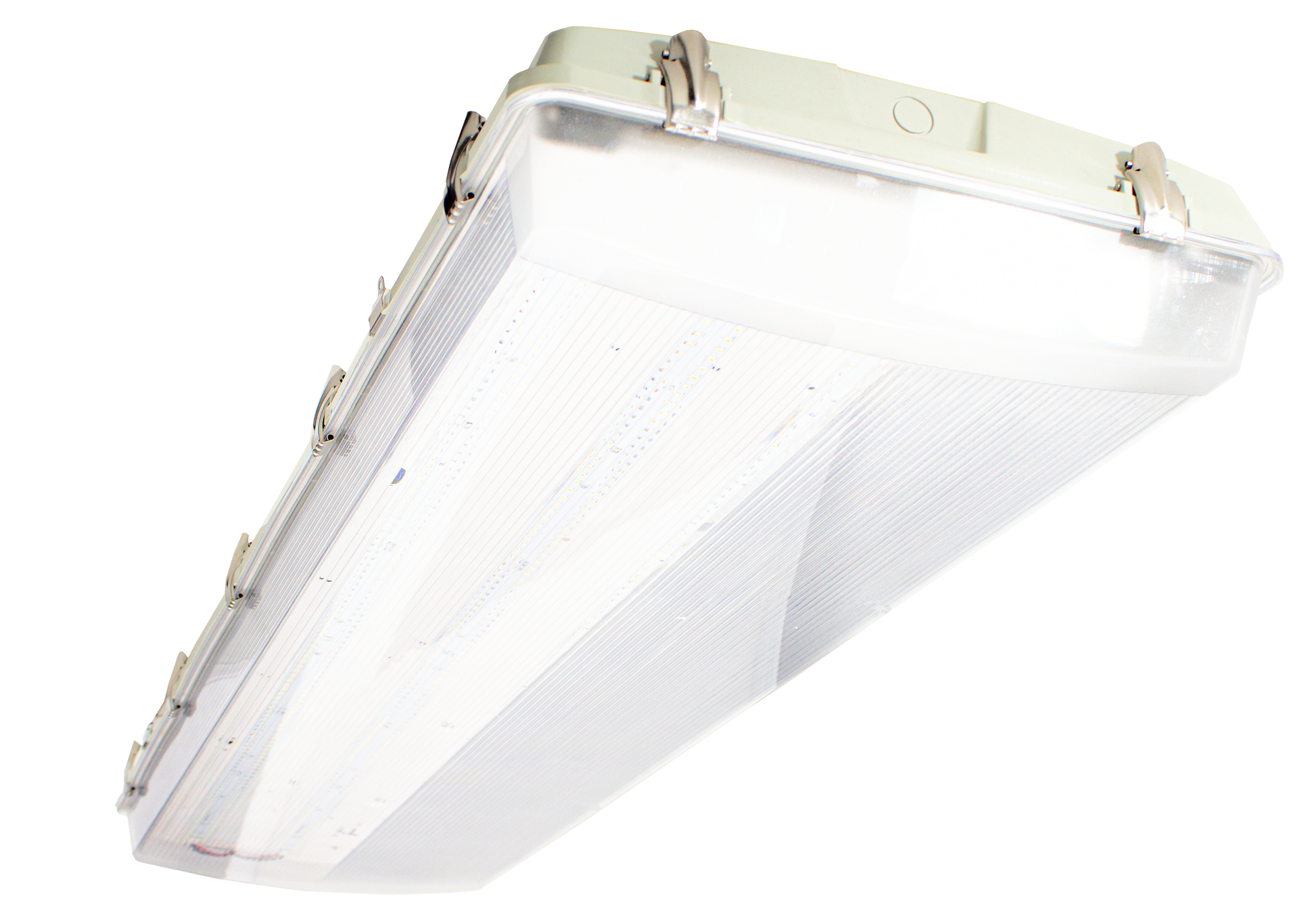

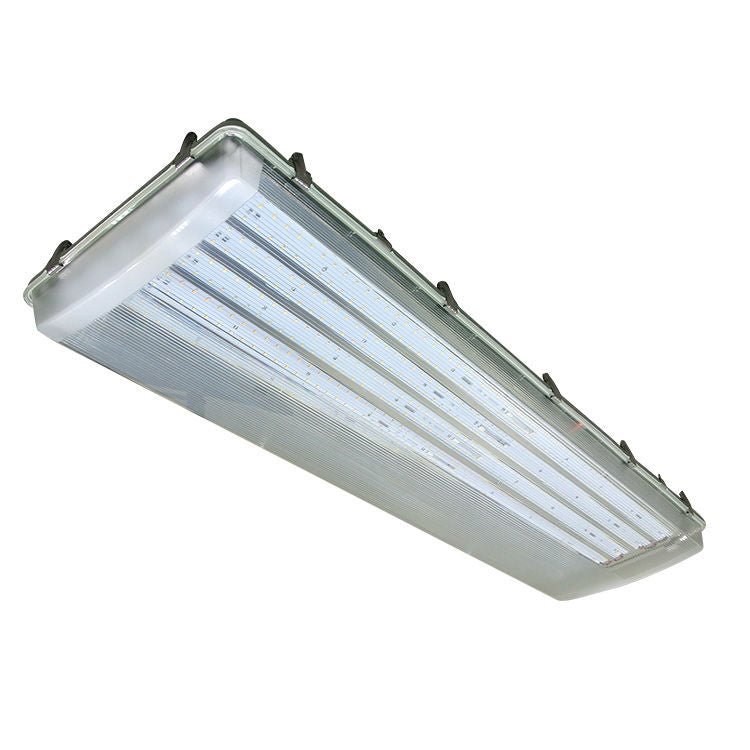

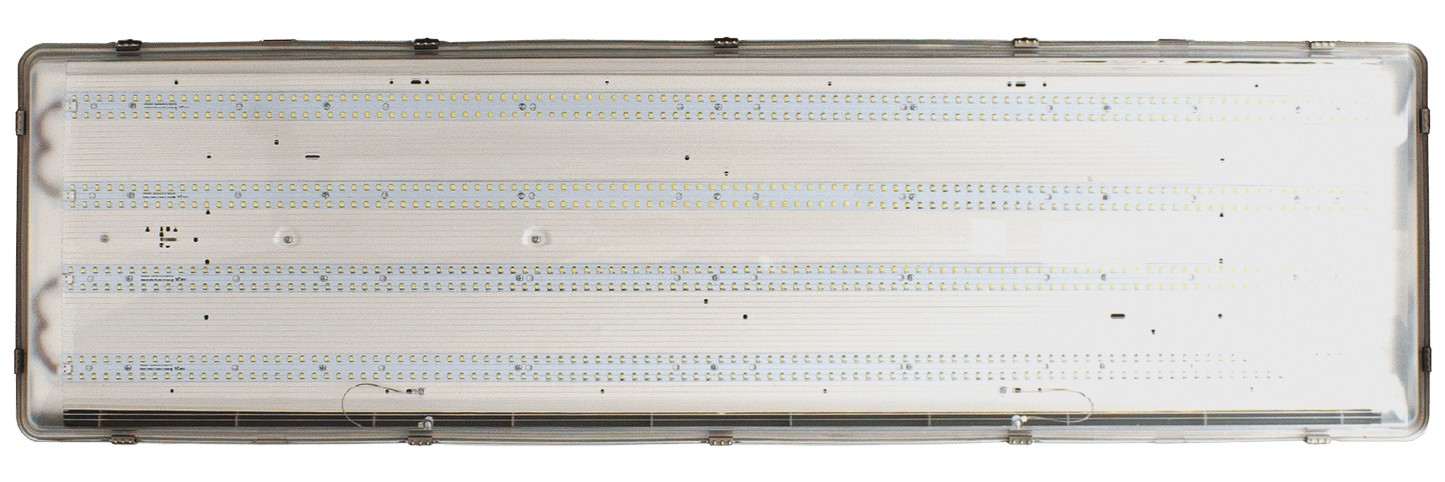

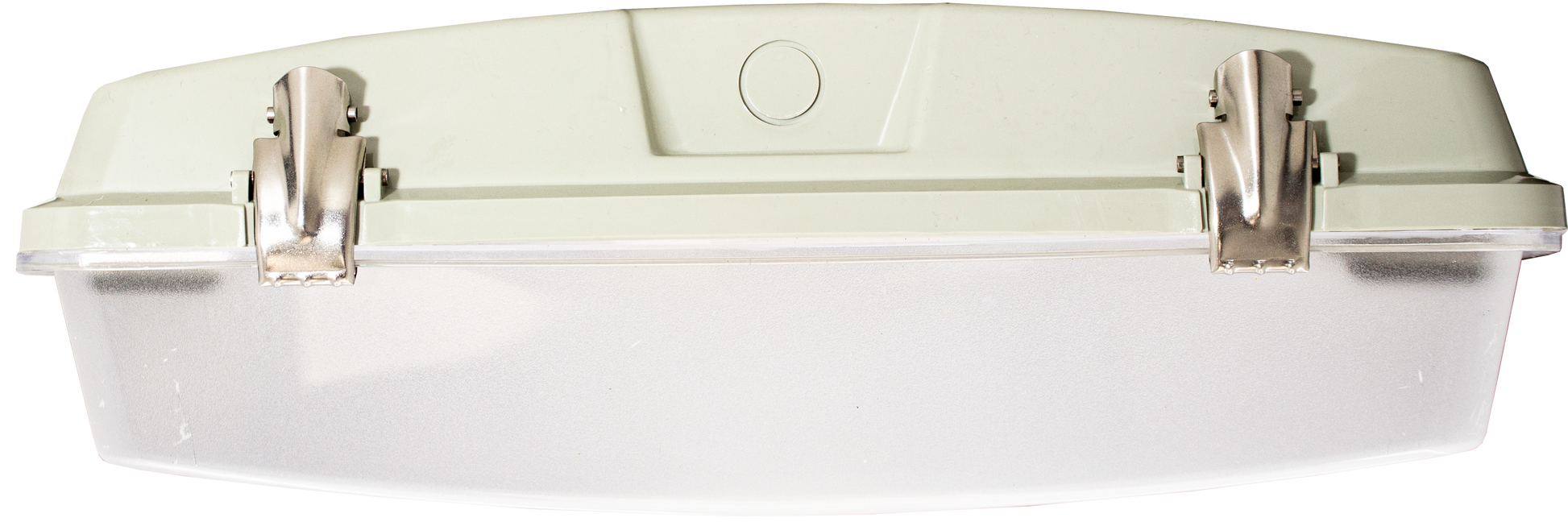

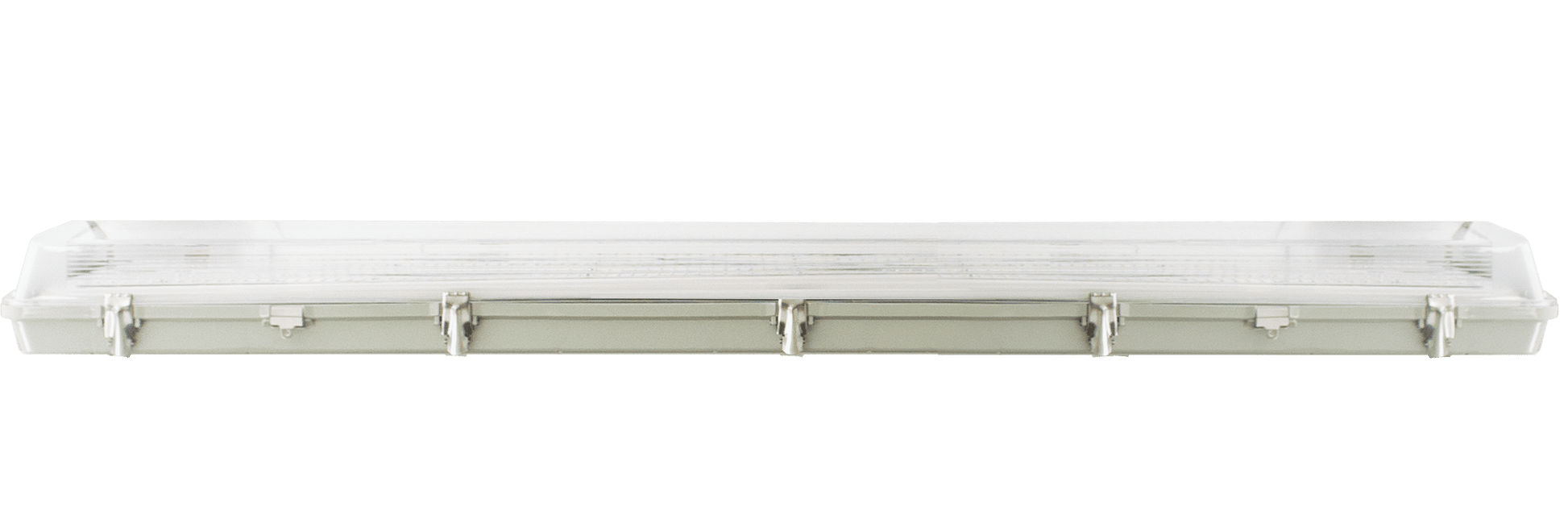

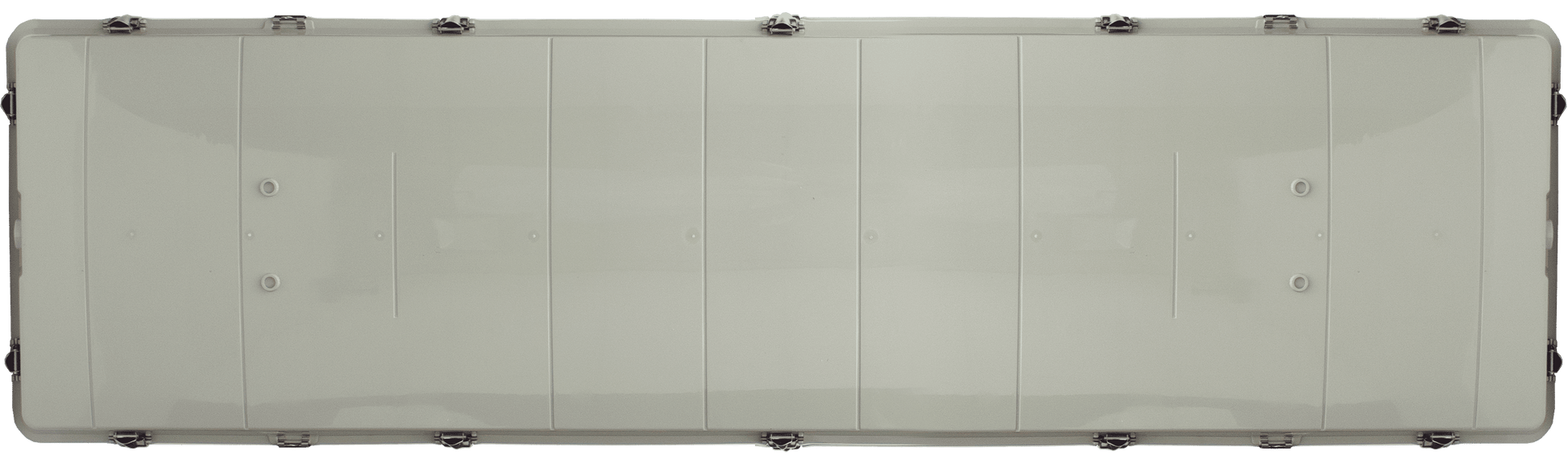

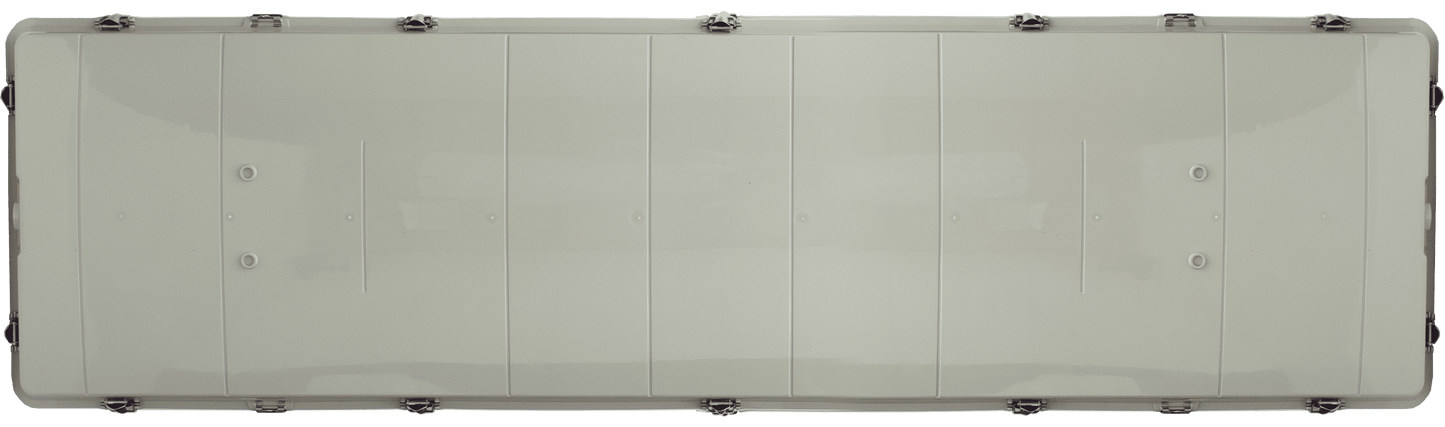

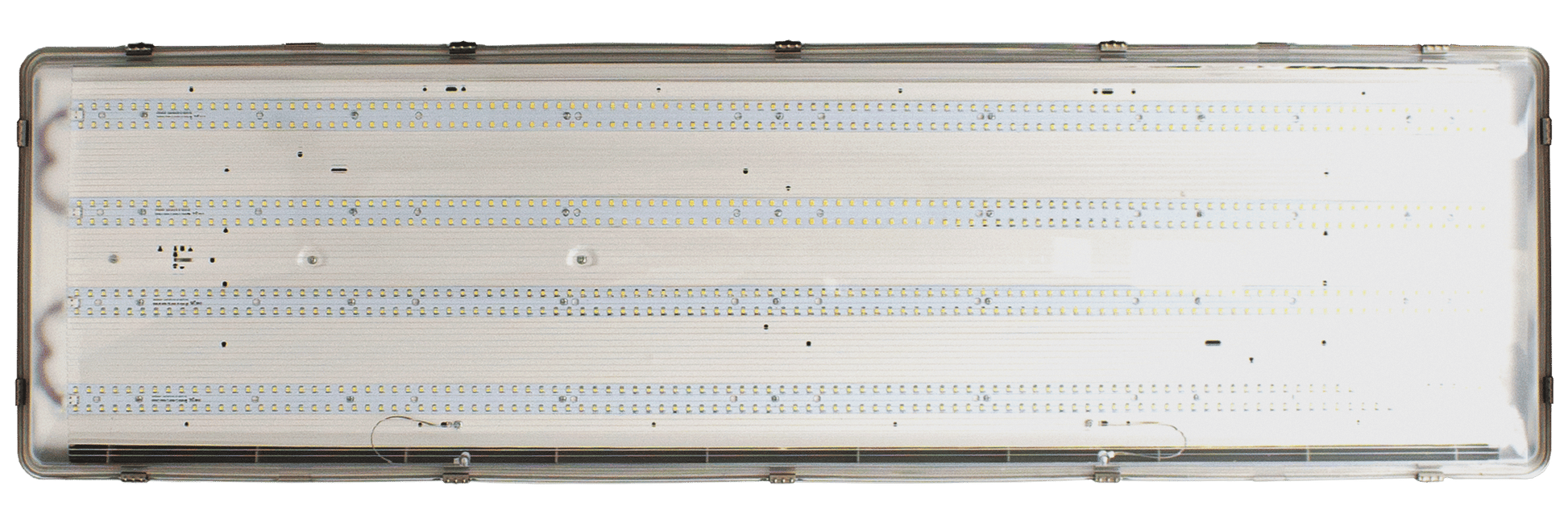

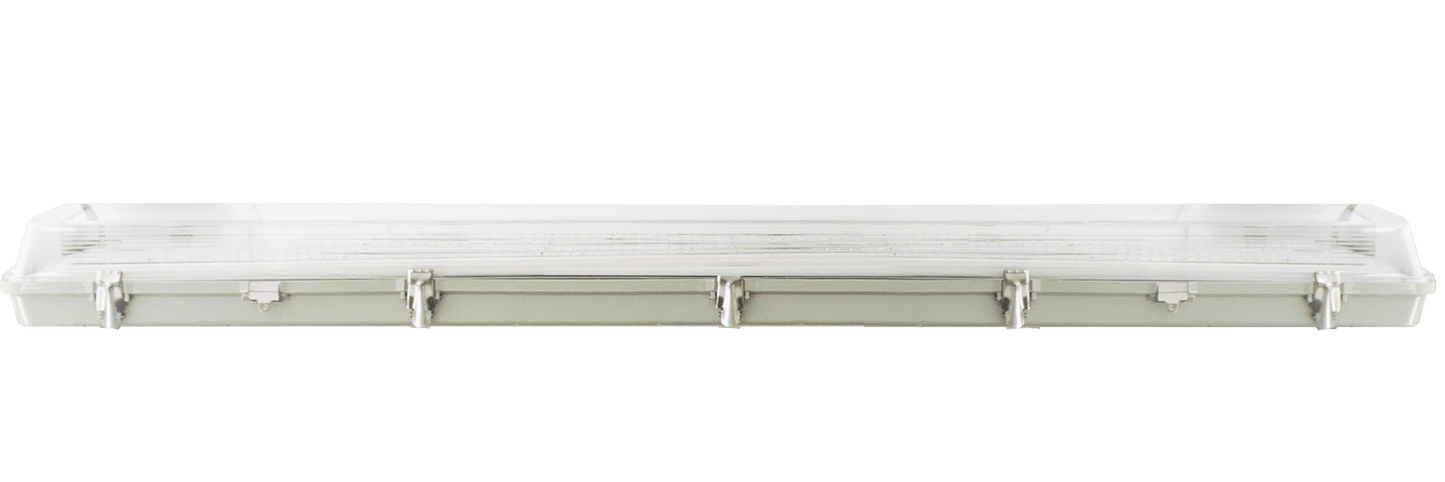

Westgate LED Linear Vapor Lights 150W, 120-277V, 3500K/4000K/5000K - LLVT-4FT-150W-MCT-D

Key Specification

• Wattage: 150W
• Voltage: 120–277V AC, 50/60Hz
• Efficacy: 135 LPW
• Total Lumens: 20,250 LM
• Color Temperature: 3500K / 4000K / 5000K
• CRI: ≥80
• Power Factor: >0.98
• Dimming: 0–10V Dimmable
• IP Rating: IP65
• Location Rating: Suitable for Wet Locations
• Operating Temperature: -22°F to 110°F
• Housing: Polycarbonate, Highly Impact Resistant
• Lens: Vandal-Proof Polycarbonate
• LED Type: Edison 2835 SMD
• Mounting: Stainless Steel Clamp
• Certification: NSF/ANSI 2 – Food Equipment
• Diffuser: UV-Stabilized Polycarbonate for Reduced Glare and Even Light Distribution
• Finish: Grey

The Westgate LED Linear Vapor Light is a powerful 4-foot LED lighting solution designed for commercial, industrial, residential and demanding wet-location applications. Featuring a 150W LED system, it delivers up to 20,250 lumens with selectable 3500K, 4000K and 5000K colour temperatures. Its durable polycarbonate construction, IP65 rating and wide 120–277V AC input range provide reliable performance in a variety of environments.

Ideal Applications

• Offices and commercial buildings
• Retail stores and showrooms
• Warehouses and utility areas
• Restaurants and bakeries
• Food processing and food service facilities
• Gyms and fitness centres
• Pool areas
• Residential applications
• Wet and moisture-prone locations
• Areas where accessing the fixture is challenging
• Food facilities requiring NSF-certified lighting

What's Included / Features

The Westgate LLVT-4FT-150W-MCT-D combines high-output LED performance with selectable colour temperature flexibility. Its 150W LED system produces up to 20,250 lumens, while the selectable 3500K/4000K/5000K CCT settings allow the light colour to be adjusted according to the requirements of the installation. The fixture uses an impact-resistant polycarbonate housing and diffuser designed to provide durable protection and even light distribution.

Designed for demanding environments, this linear vapor light features an IP65 rating and is suitable for wet locations. Its UV-stabilised polycarbonate diffuser helps reduce glare, while diffuser crystals enhance even light distribution. Stainless steel clamps and clips help provide a secure and sealed installation. The fixture also supports 0–10V dimming and is NSF/ANSI 2 certified, making it suitable for applicable food-service and food-equipment environments.

Key Features:

• Product Type: LED Linear Vapor Light
• Wattage: 150W
• Length: 4 ft
• Colour Temperature: 3500K / 4000K / 5000K
• Total Lumens: 20,250 LM
• Efficacy: 135 LPW
• Input Voltage: 120–277V AC
• Frequency: 50/60 Hz
• Power Factor: >0.98
• Dimming: 0–10V dimmable
• Housing: Polycarbonate
• Lens: Vandal-proof polycarbonate
• Diffuser: UV-stabilised polycarbonate
• Finish: Grey
• LED Type: Edison 2835 SMD
• CRI: ≥80
• IP Rating: IP65
• Location Rating: Suitable for wet locations
• Operating Temperature: -22°F to 110°F
• Clamps: Stainless steel
• Construction: Highly impact-resistant polycarbonate
• NSF Certified: NSF/ANSI 2
• Model: LLVT-4FT-150W-MCT-D
