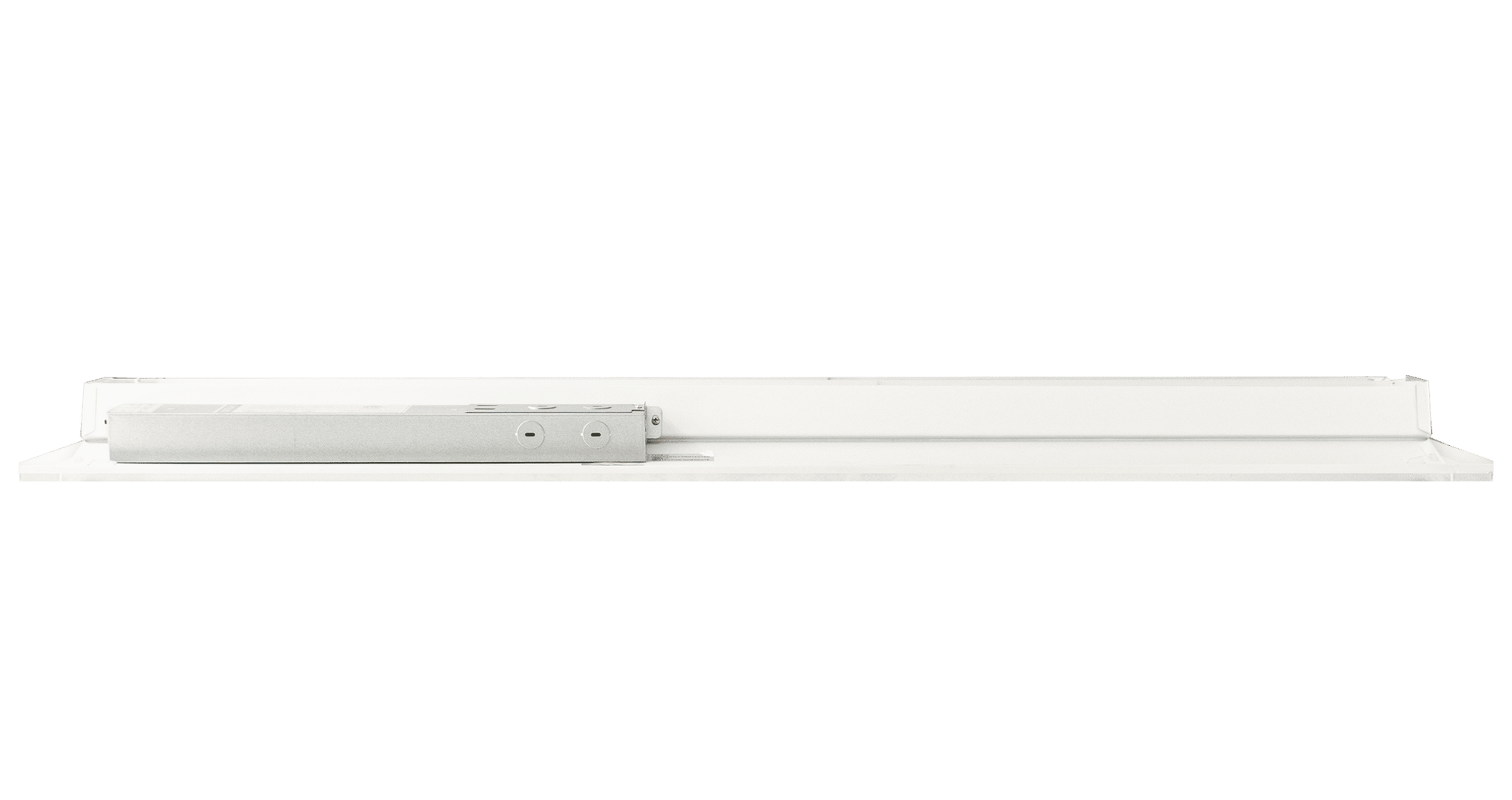

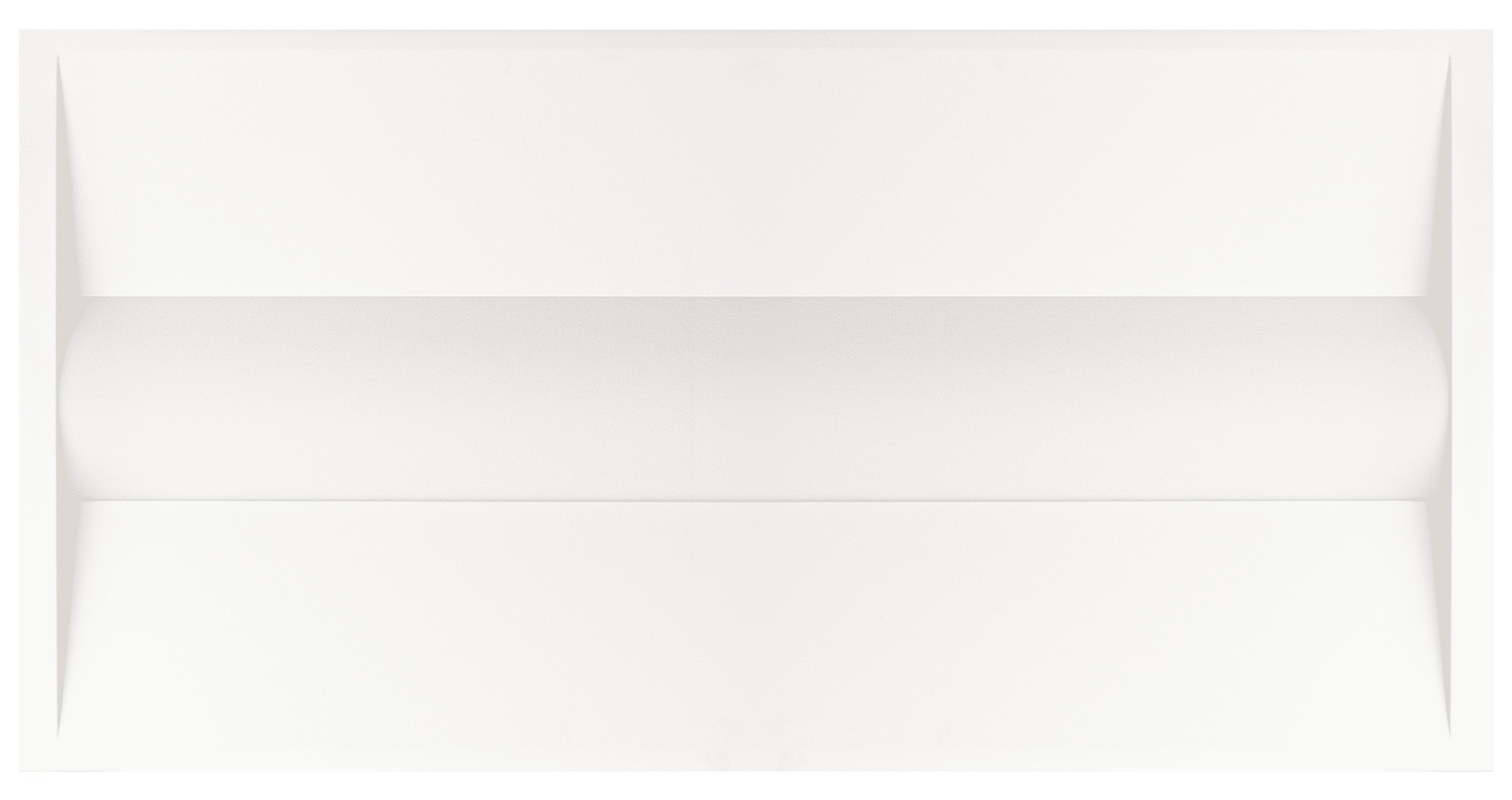

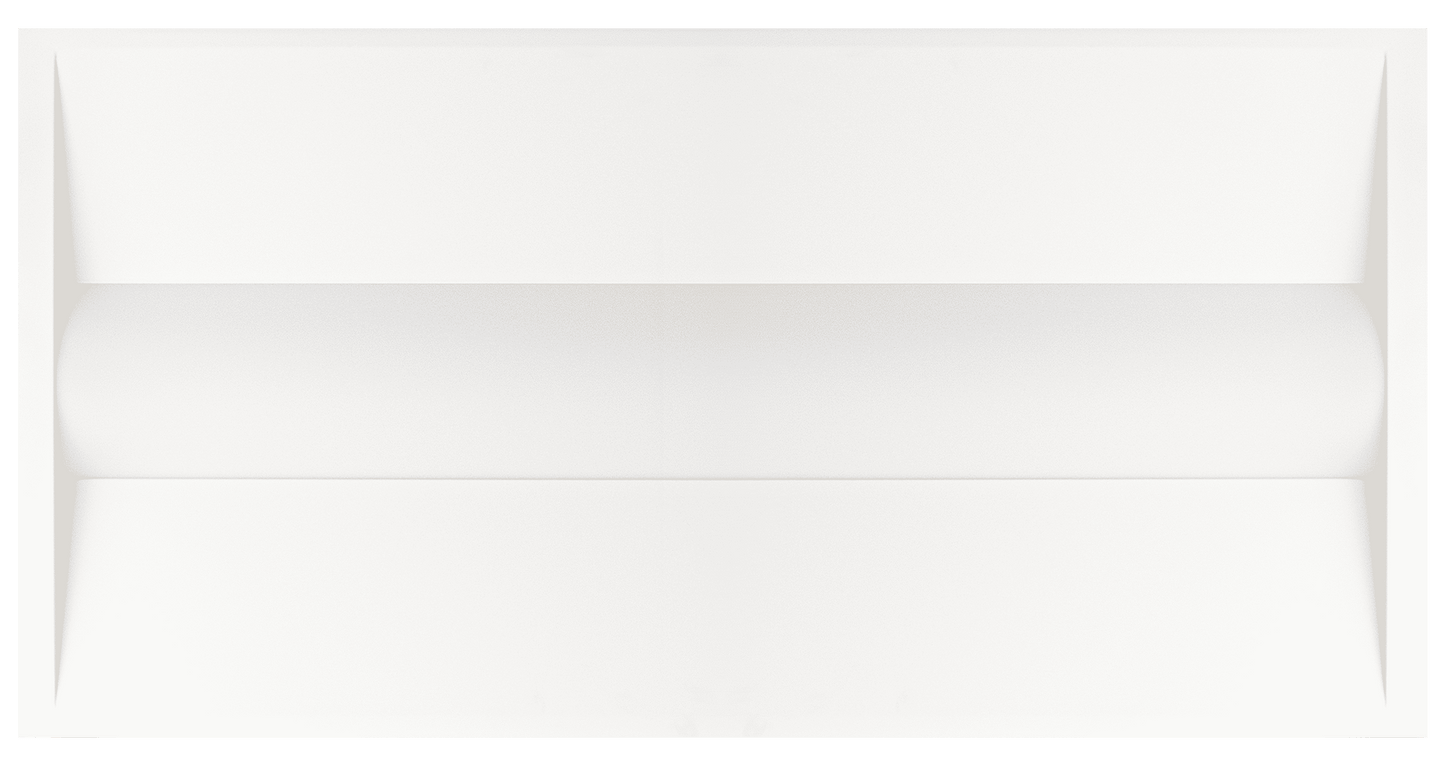

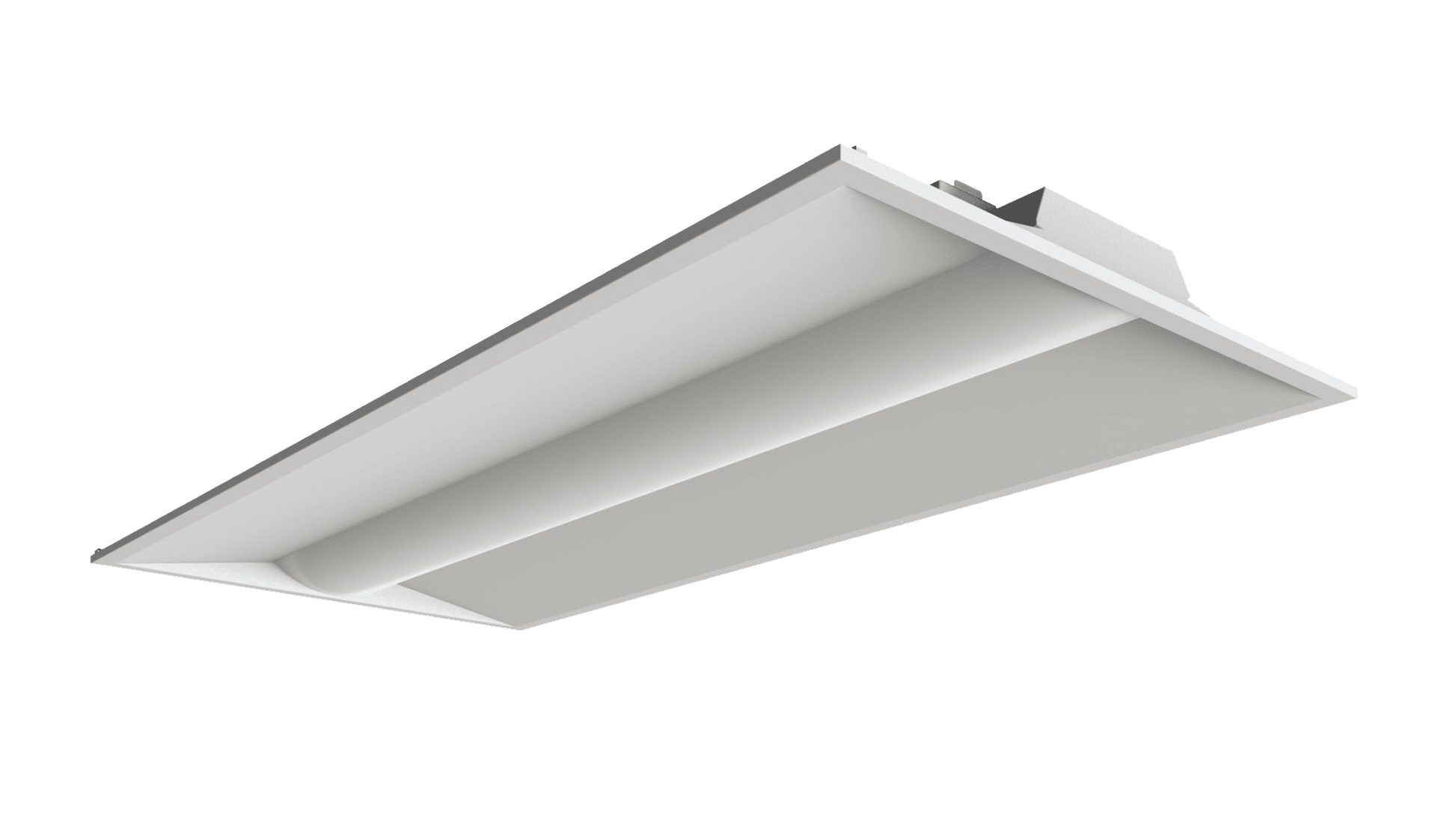

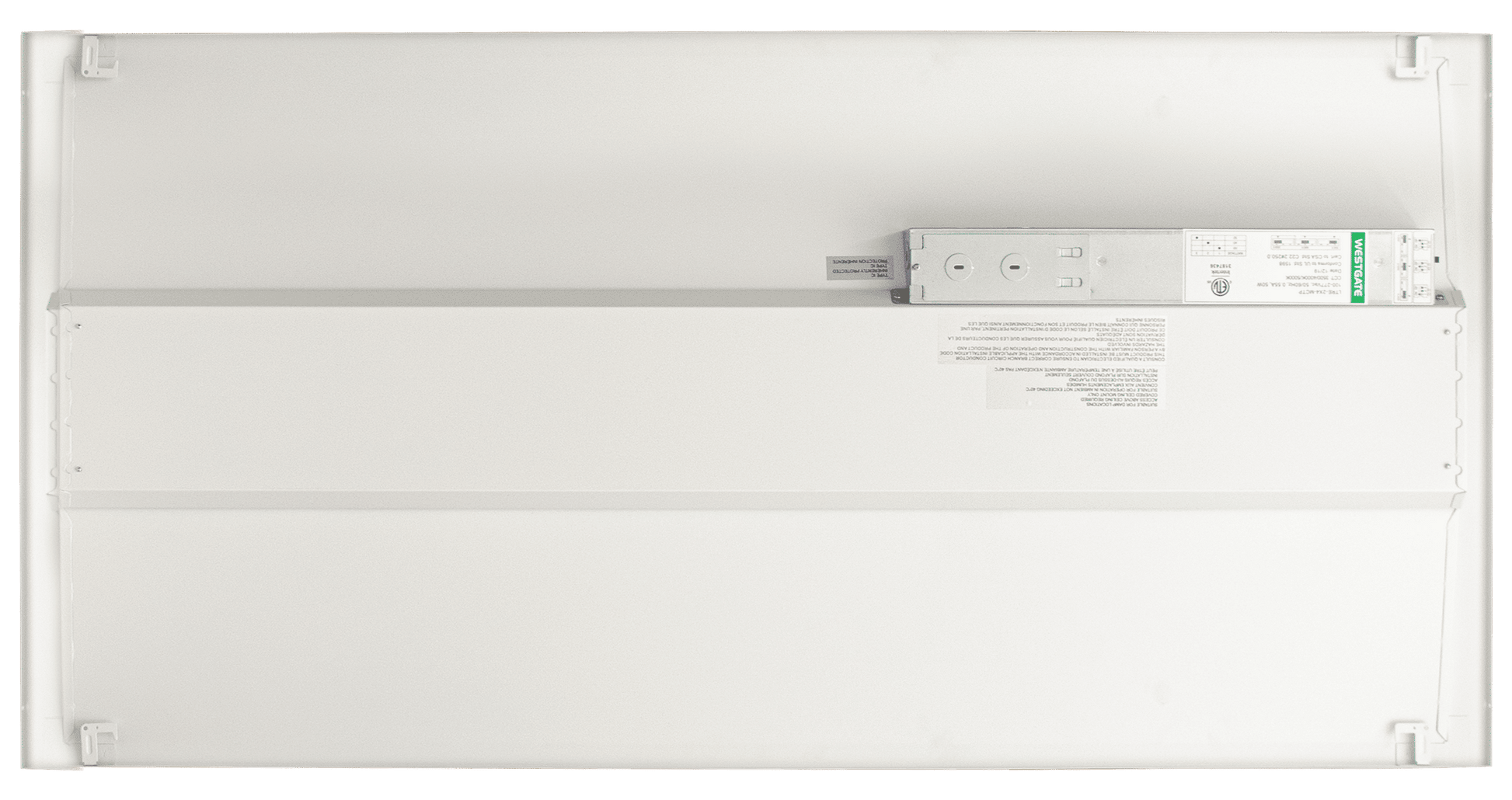

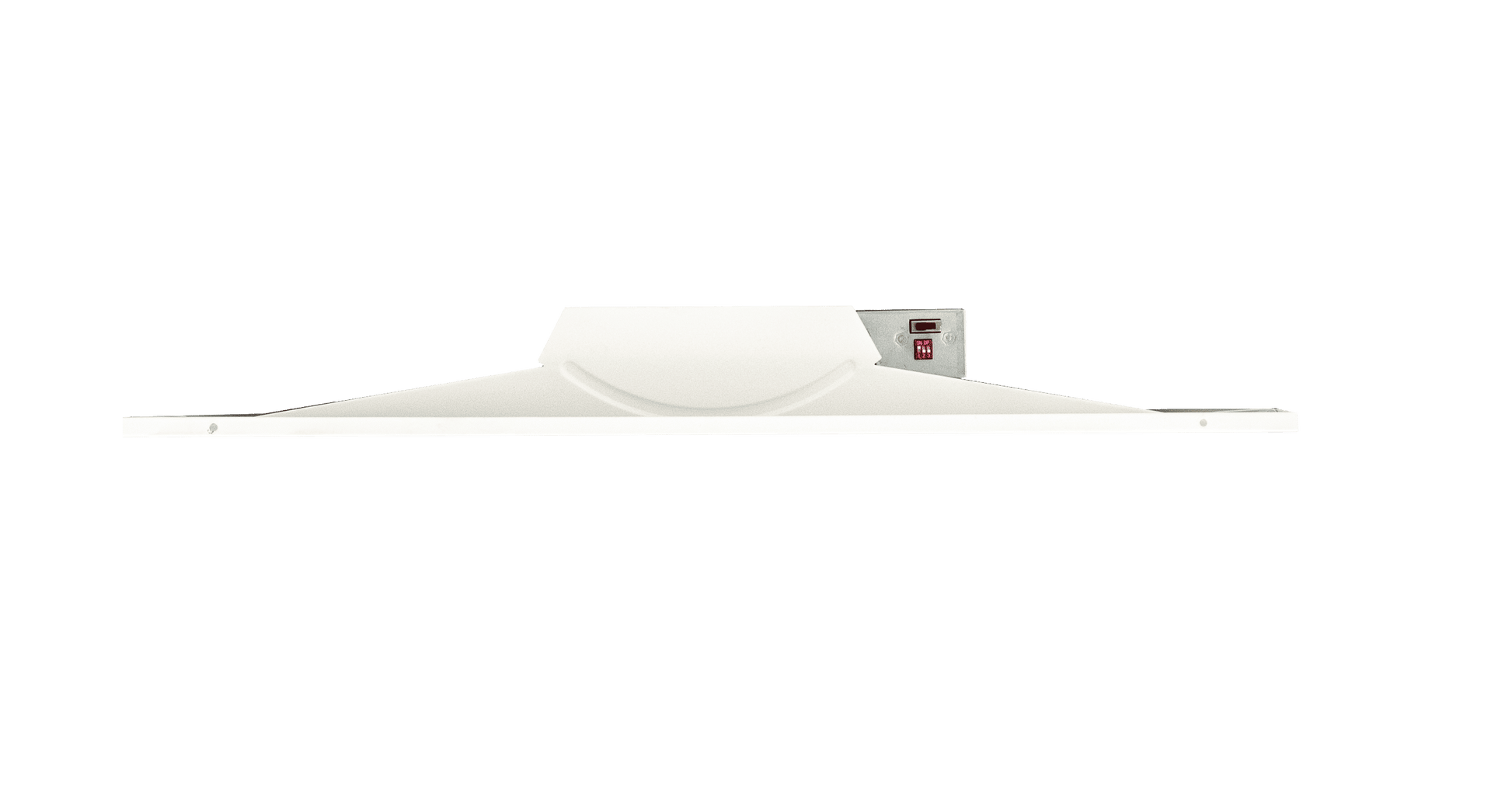

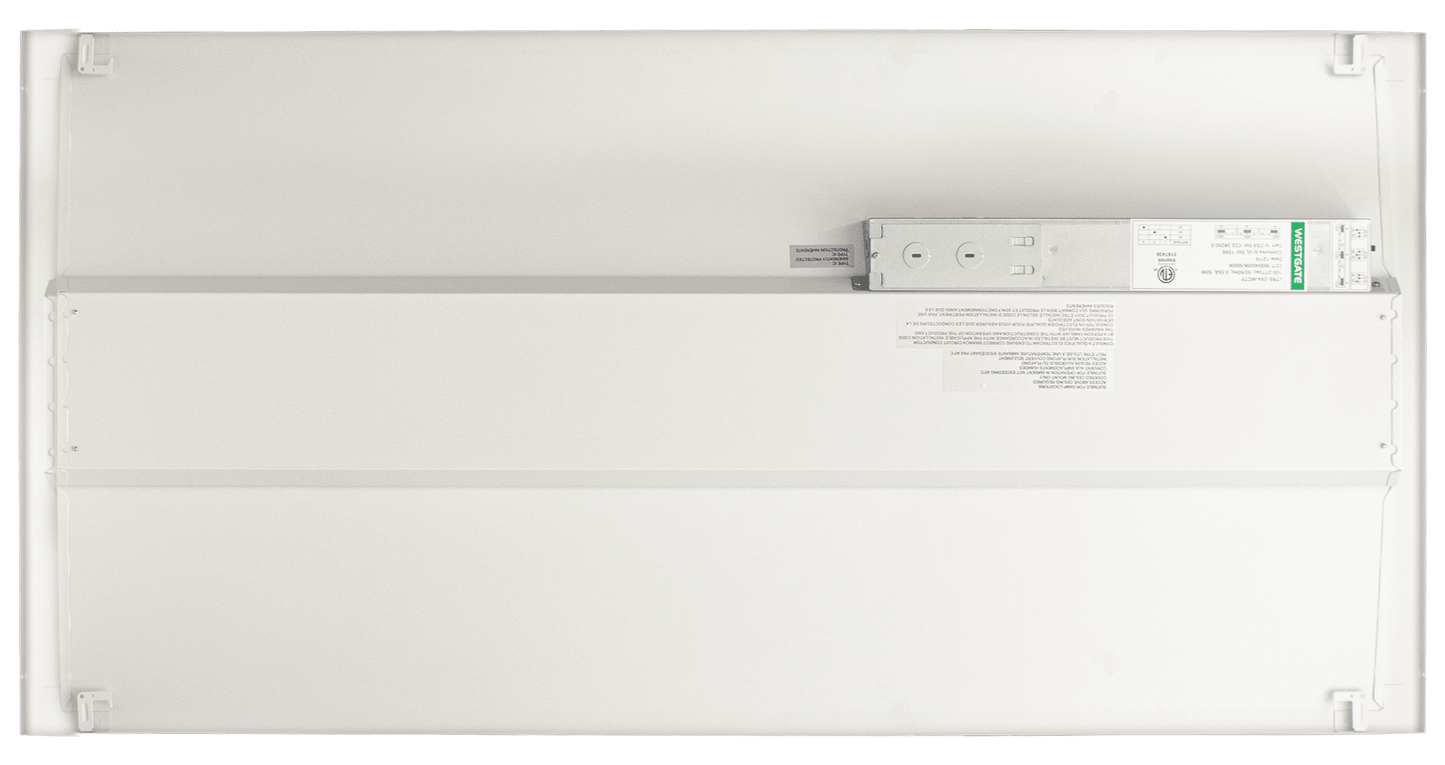

Westgate LED Center-Basket MCTP Troffer Lights 32W/40W/50W, 120-277V, 3500K/4000K/5000K - LTRE-2X4-MCTP

Key Specification

• Wattage: 32W / 40W / 50W
• Voltage: 120–277V AC, 50/60Hz
• Total Lumens: 4,000 / 5,000 / 6,250 LM
• Efficacy: 125 LPW
• Color Temperature: 3500K / 4000K / 5000K
• CRI: ≥80
• Power Factor: >0.97
• Dimming: 0–10V Dimmable
• Multi-CCT & Power: Selectable Switch on Back of Fixture
• LED Type: SMD 2835
• Housing: Cold-Rolled Steel
• Operating Temperature: -4°F to 122°F
• Rated Life: 50,000 Hours
• Warranty: 5 Years
• Finish: White
• Installation: Built-in Earthquake Hooks

The Westgate LED Center-Basket MCTP Troffer Light is an energy-efficient and versatile 2x4-foot commercial lighting solution designed for modern indoor ceiling applications. Featuring selectable power settings of 32W, 40W and 50W and selectable colour temperatures of 3500K, 4000K and 5000K, it provides flexible illumination for a wide range of environments. Its 120–277V AC input range makes it suitable for commercial, institutional and professional lighting installations.

Ideal Applications

• Offices and corporate buildings
• Schools and educational facilities
• Classrooms and training rooms
• Hospitals and healthcare facilities
• Retail stores and shopping centres
• Commercial buildings
• Conference rooms
• Corridors and common areas
• Hotels and hospitality spaces
• Libraries and public facilities
• Indoor workspaces
• Recessed ceiling installations

What's Included / Features

The Westgate LTRE-2X4-MCTP combines a traditional centre-basket troffer design with modern LED technology and multi-selectable performance. The 32W/40W/50W selectable power allows the fixture to be adjusted according to the illumination requirements of the space, while the selectable 3500K/4000K/5000K colour temperatures provide the flexibility to choose warm, neutral or daylight-style lighting.

Designed for commercial and institutional environments, the 2x4-foot troffer provides a clean, professional appearance and integrates with compatible recessed ceiling-grid systems. Its wide 120–277V AC operating range provides electrical installation flexibility, while the multi-power and multi-CCT configuration allows one fixture design to accommodate different lighting requirements across multiple applications.

Key Features:

• Product Type: LED Center-Basket Troffer Light
• Size: 2 ft x 4 ft
• Selectable Wattage: 32W / 40W / 50W
• Selectable Colour Temperature: 3500K / 4000K / 5000K
• Input Voltage: 120–277V AC
• Multi-Power: Yes
• Multi-CCT: Yes
• Centre-Basket Design
• Energy-Efficient LED Technology
• Uniform Light Distribution
• Professional Commercial Design
• Designed for Recessed Ceiling Grids
• Suitable for Indoor Applications
• Ideal for: Offices, schools, healthcare facilities, retail stores, hotels, classrooms and commercial buildings
• Model: LTRE-2X4-MCTP
