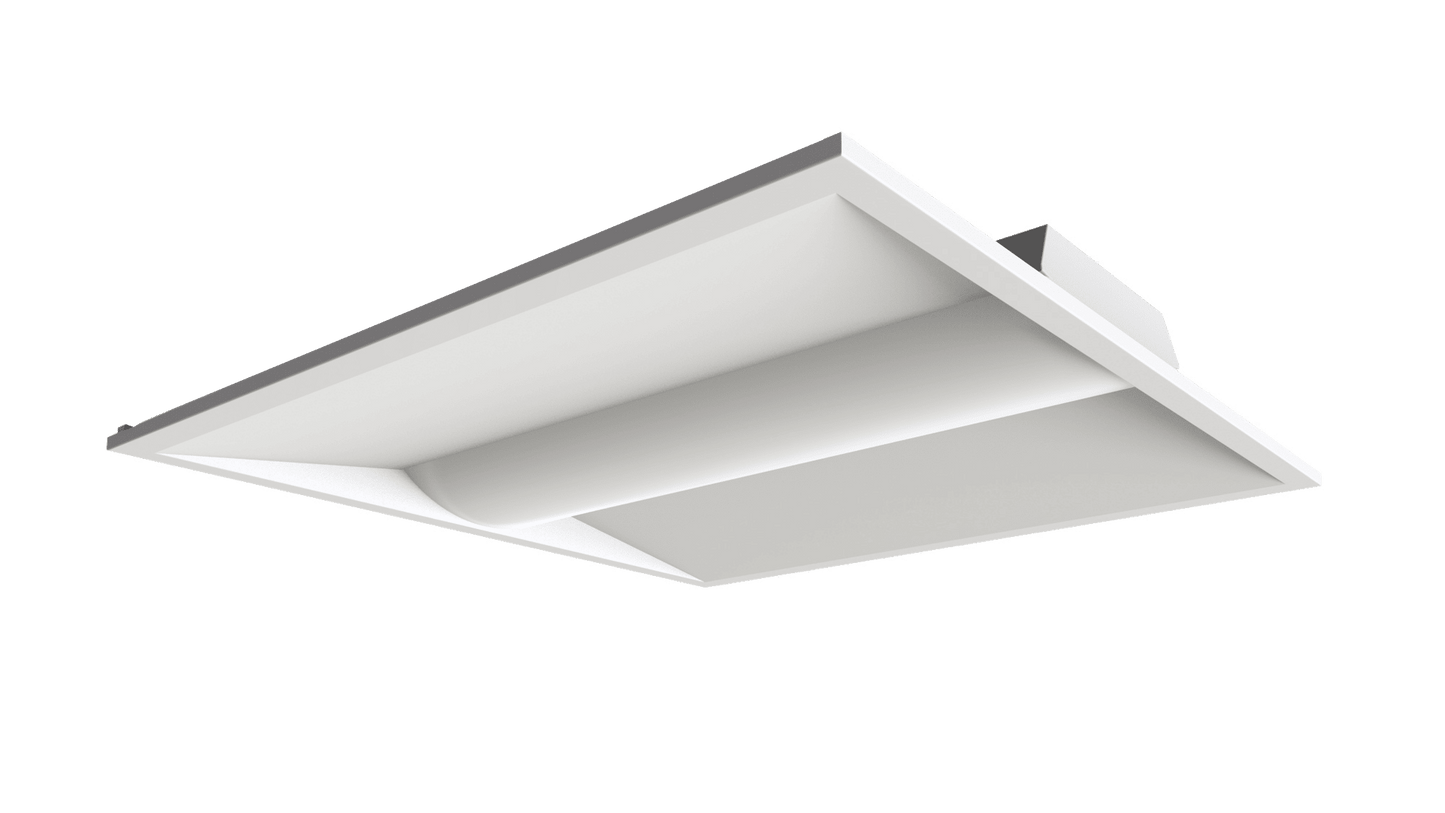

Westgate LED Center-Basket MCTP Troffer Lights 26W/32W/40W, 120-277V, 3500K/ 4000K/ 5000K - LTRE-2X2-MCTP

Key Specification

• Wattage: 26W / 32W / 40W
• Voltage: 120–277V AC, 50/60Hz
• Total Lumens: 3,250 / 4,000 / 5,000 LM
• Efficacy: 125 LPW
• Color Temperature: 3500K / 4000K / 5000K
• CRI: ≥80
• Power Factor: >0.97
• Dimming: 0–10V Dimmable

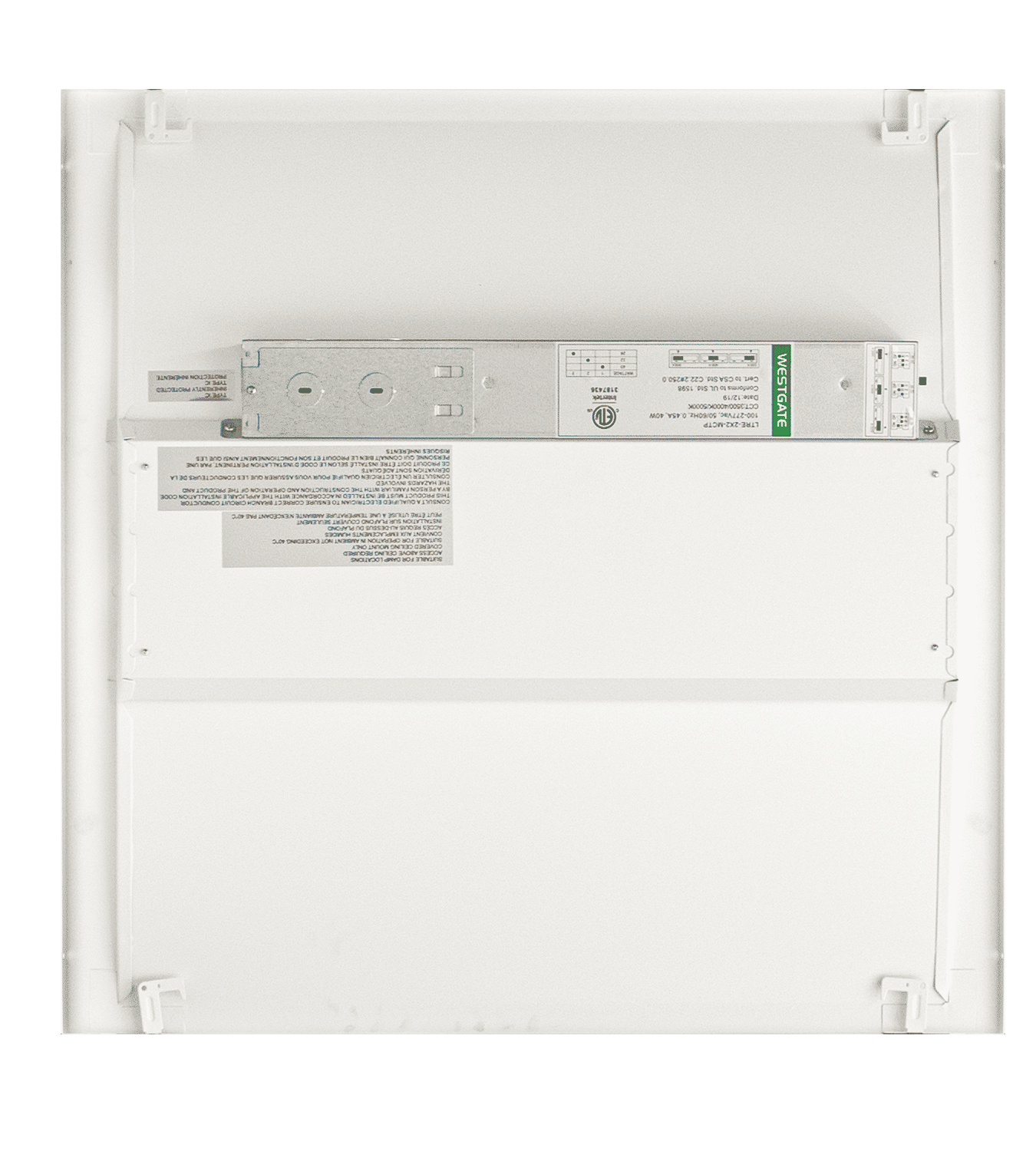

• Multi-CCT & Power: Selectable Switch on Back of Fixture
• LED Type: SMD 2835
• Housing: Cold-Rolled Steel
• Operating Temperature: -4°F to 122°F
• Rated Life: 50,000 Hours
• Warranty: 5 Years
• Finish: White
• Installation: Built-in Earthquake Hooks

The Westgate LED Center-Basket MCTP Troffer Light is a versatile and energy-efficient commercial lighting solution designed for modern indoor ceiling applications. Featuring selectable power settings of 26W, 32W and 40W and selectable colour temperatures of 3500K, 4000K and 5000K, it provides flexible illumination for different environments. Its 120–277V AC input range makes it suitable for a wide variety of commercial and institutional electrical systems.

Ideal Applications

• Offices and corporate buildings
• Schools and educational facilities
• Classrooms and training rooms
• Hospitals and healthcare facilities
• Retail stores and shopping centres
• Commercial buildings
• Conference rooms
• Corridors and common areas
• Hotels and hospitality spaces
• Libraries and public facilities
• Indoor workspaces
• Recessed ceiling installations

What's Included / Features

The Westgate LTRE-2X2-MCTP combines a traditional centre-basket troffer design with modern LED technology and multi-selectable performance. The 26W/32W/40W selectable power allows the fixture to be adjusted according to the lighting requirements of the space, while the 3500K/4000K/5000K selectable colour temperature provides flexibility between warm, neutral and daylight-style illumination.

Designed for commercial and institutional environments, this 2x2 LED troffer provides a clean architectural appearance and is suitable for compatible recessed ceiling-grid installations. Its wide 120–277V AC operating range provides installation flexibility, while the selectable wattage and CCT settings help simplify lighting upgrades and allow the fixture to accommodate different application requirements.

Key Features:

• Product Type: LED Center-Basket Troffer Light
• Size: 2 ft x 2 ft
• Selectable Wattage: 26W / 32W / 40W
• Selectable Colour Temperature: 3500K / 4000K / 5000K
• Input Voltage: 120–277V AC
• Multi-Power: Yes
• Multi-CCT: Yes
• Centre-Basket Design
• Energy-Efficient LED Technology
• Uniform Light Distribution
• Low-Profile Commercial Design
• Designed for Recessed Ceiling Grids
• Suitable for Indoor Applications
• Ideal for: Offices, schools, healthcare facilities, retail stores, hotels, classrooms and commercial buildings
• Model: LTRE-2X2-MCTP
