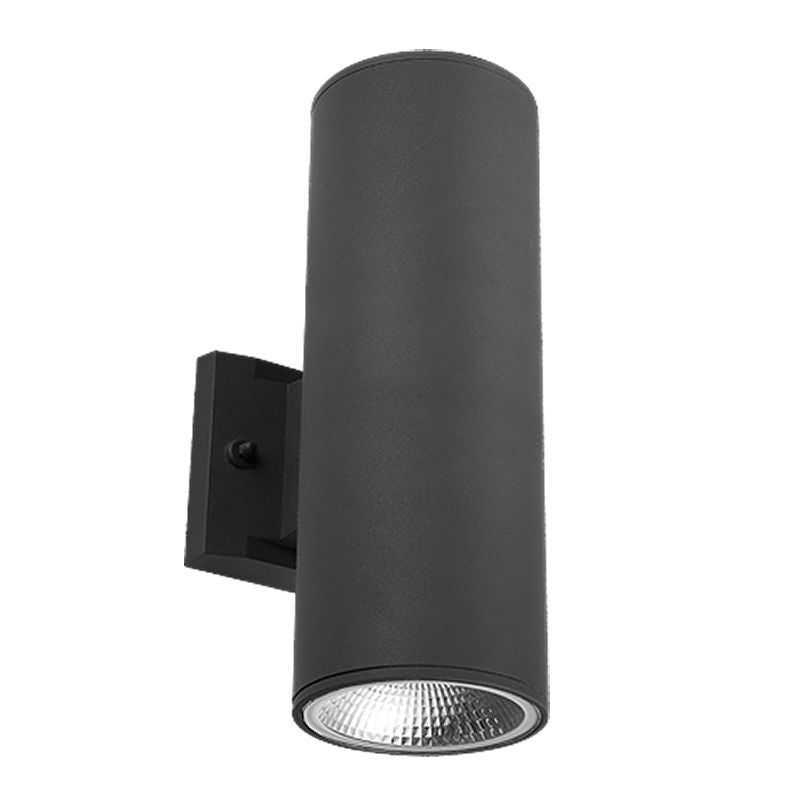

Westgate 6" LED Cylinder Lights with Photocell 2x6W/2x12W/2x16W/2x20W,120-277V, 3000K/4000K/5000K - WMC6-UDL-MCTP-BK-DD-P

Key Specification

• Voltage: 120-277VAC 60Hz
• Wattage: 2×6W / 2×12W / 2×16W / 2×20W
• Power Factor: >0.90
• Efficacy: 80 LM/W
• Lumens: 3200LM Max.
• Color Temperature: 3000K / 4000K / 5000K
• CRI: ≥80
• Dimming: Triac at 120V & 0-10V at 120-277V
• IP Rating: IP65, Weather-Tight
• Housing: Die-Cast Aluminum
• LED: COB Technology with Prismatic Reflector & Frosted Lens
• Light Direction: Up & Down
• Beam Angle: 40° Each Side
• MCTP: Multi-CCT & Multi-Power Selectable
• Photocell: DC Button Photocell with ON/OFF Switch
• Rated Life: 70,000 Hours
• Operating Type: Outdoor Wall Cylinder
• Warranty: 7 Years

The Westgate 6" LED Cylinder Lights with Photocell are a modern and versatile lighting solution designed to provide stylish and dependable exterior illumination for residential and commercial applications. Featuring selectable power levels of 2 x 6W, 2 x 12W, 2 x 16W and 2 x 20W and three selectable colour temperatures — 3000K, 4000K and 5000K — these cylinder lights offer flexible performance for a wide range of lighting requirements. The black finish provides a sleek and contemporary architectural appearance.

Ideal Applications

• Residential exterior walls
• Commercial building exteriors
• Entrances and doorways
• Porches and patios
• Walkways and pathways
• Hotels and hospitality properties
• Restaurants and retail spaces
• Apartment and condominium buildings
• Office buildings
• Outdoor common areas
• Architectural accent lighting
• General exterior lighting

What's Included / Features

The Westgate WMC6-UDL-MCTP-BK-DD-P combines a contemporary 6-inch cylinder design with efficient LED technology, selectable power levels, multi-CCT functionality and an integrated photocell. Its 2 x 6W / 2 x 12W / 2 x 16W / 2 x 20W selectable power configuration allows users to choose the appropriate light output for different applications.

The selectable 3000K/4000K/5000K colour temperatures provide flexibility in light appearance, allowing users to choose the preferred lighting effect for different exterior environments. The integrated photocell enables automatic lighting control based on ambient light conditions, making the fixture suitable for convenient dusk-to-dawn operation.

Designed for a broad 120–277V AC input range, the fixture provides installation flexibility across residential and commercial electrical systems. Its black finish complements contemporary, modern and industrial architectural styles while providing a clean and professional appearance.

Key Features:

• Product Type: LED Cylinder Light with Photocell
• Model: WMC6-UDL-MCTP-BK-DD-P
• Size: 6 Inches
• Selectable Wattage: 2 x 6W / 2 x 12W / 2 x 16W / 2 x 20W
• Input Voltage: 120–277V AC
• Selectable Colour Temperature: 3000K / 4000K / 5000K
• Multi-Power: Yes
• Multi-CCT: Yes
• Photocell: Integrated
• Finish: Black
• Dual-Light Cylinder Design
• Energy-Efficient LED Technology
• Flexible Power Selection
• Flexible Colour Temperature Selection
• Automatic Photocell Operation
• Dusk-to-Dawn Lighting Control
• Wide Voltage Compatibility
• Modern Architectural Styling
• 6-Inch Cylinder Form Factor
• Reliable Exterior Illumination
• Low-Maintenance Operation
• Suitable for Residential and Commercial Applications
• Ideal for: Entrances, doorways, porches, patios, walkways, hotels, restaurants, retail properties, offices, apartments and architectural exterior lighting
