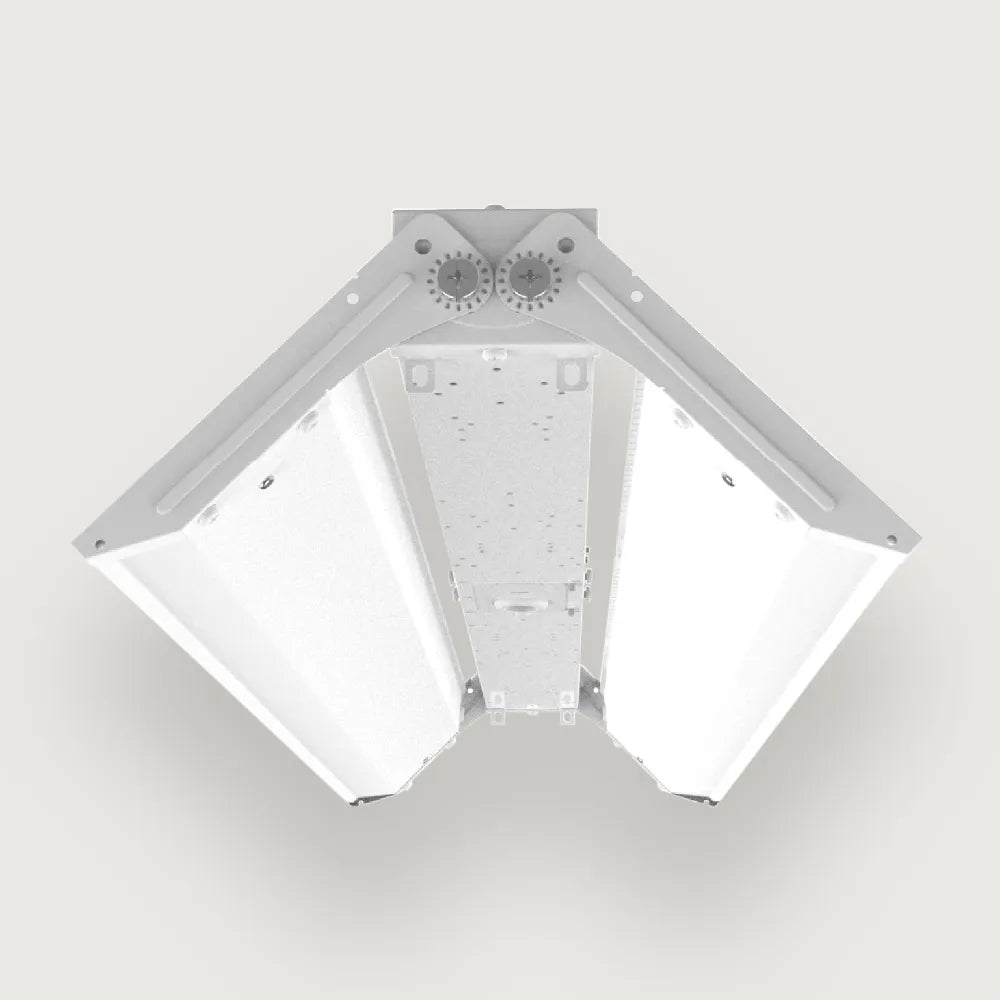

The TriLum Foldable LED Linear High Bay 165W Max delivers high-efficiency illumination at 150 LM/W, ideal for warehouses, workshops, and commercial spaces. Featuring selectable 3-wattage settings and a foldable panel design, it allows adjustable light distribution for optimal coverage. Damp-rated, dimmable, and smart-enabled in a sleek black finish, it operates on 120–277V for versatile installation.
Applications
Premium indoor luminaire for hanging or pendant mounting in high ceiling spaces below and above 25 feet. Suitable for gymnasiums, warehouses, manufacturing, packaging, storage, aisles, and covered decks.
Construction
Manufactured for durability using aluminum sheet housing with semi-gloss coating to resist corrosion, discoloration, and scratching. Ventilated driver bay for additional heat dissipation. Damp Location rated.
Electrical
Input voltages 120-277V models with 0-10V Continuous Dimming. Tunable 3-CCT (3500K, 4000K, 5000K) and Tunable 3-Wattages. Operating temperatures -40°F to 113°F (-40°C to 45°C).
Mounting
Aluminum V-Hooks and Chains for hanging standard. Optional Pendant Mount Bracket or pair of 10-FT Aircraft Hanging Cables available. Includes 6-inch 5 core, 18AWG wiring cable.
Optics
Anti-UV Frosted Micro-Filter Polycarbonate Lens standard.
Controls
Fixture mounted PIR or Microwave AUX Input Smart Sensor with Daylight Priority. Remote Control available. Installed Step-Down Autotransformer for 480V to 277V applications available.
Emergency
Installed 90 Minute Emergency Backup Battery Driver options available.
Warranty
5 year exclusive limited warranty.
