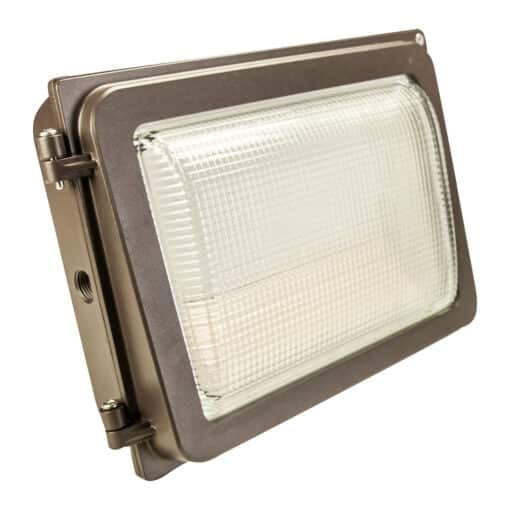

TCP LED Wall Pack 60/80/100W CCT Selectable 120-277V – SWPUZDSW8CCT

Key Specification

• Weight: 9.5 lbs
• Wattage: 60W/80W/100W
• Lumens: 7,800/11,200/13,000
• Color Temperature (CCT): 3000K/4000K/5000K
• Voltage: 120-277V
• Dimmable: Dimmable

The TCP SFWPUZDSW8CCT LED Wall Pack offers powerful and adaptable outdoor lighting with field‑selectable wattage and color temperature options. Designed for versatility, this fixture provides 60W, 80W, or 100W selectable output along with 3000K, 4000K, or 5000K CCT to suit various lighting needs. It operates on 120–277V universal voltage and delivers bright, energy‑efficient illumination for commercial and security lighting applications. Durable and reliable, it’s ideal for exterior walls, entrances, and perimeter areas.

Ideal Applications

• Building and facility exterior wall lighting
• Perimeter and security lighting
• Walkways, entryways, and exits
• Loading docks and service areas
• Commercial and industrial outdoor lighting

What’s Included / Features

The TCP SFWPUZDSW8CCT LED wall pack is engineered with field‑selectable wattage and CCT, allowing installers to adjust the fixture’s output during installation without changing the fixture itself. With selectable 60W, 80W, or 100W settings and 3000K/4000K/5000K color temperatures, it provides flexibility for different lighting environments while reducing inventory needs. Depending on the selection, the light can deliver approximately 7,800, 11,200, or 13,000 lumens of bright illumination to effectively light building exteriors and outdoor spaces.

Constructed with a durable die‑cast aluminum housing and impact‑resistant glass lens, this wall pack is built to withstand harsh outdoor conditions. It is IP65 wet‑location rated for reliable performance in exposed environments and includes an integrated photocell for automatic dusk‑to‑dawn operation, helping save energy and simplify control. With a long 50,000‑hour rated life and >80 CRI, it delivers consistent, high‑quality lighting while reducing maintenance and operating costs.

Key Features

• Selectable 60W / 80W / 100W power output
• Selectable 3000K / 4000K / 5000K color temperature
• Universal 120–277V operation
• Up to 13,000 lumens depending on settings
• Durable die‑cast aluminum housing with impact‑resistant lens
• IP65 wet‑location rated for outdoor use
• Integrated photocell for automatic dusk‑to‑dawn control
• >80 CRI for quality illumination
• Long 50,000‑hour LED rated life for reduced maintenance
• Designed for commercial and industrial outdoor lighting
