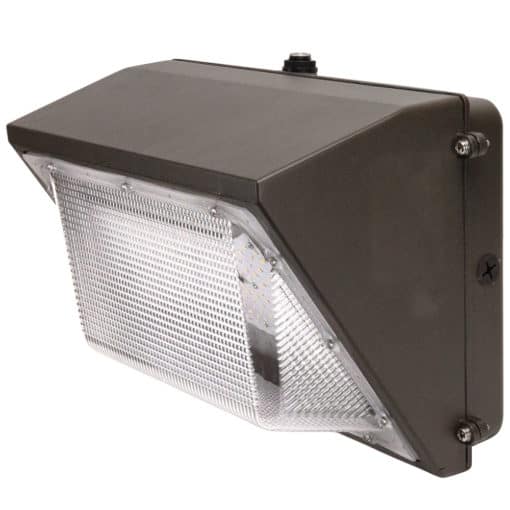

TCP LED Wall Pack 35/45/55W CCT Selectable 120-277V – TWPUZDB1CCT

Key Specification

• Weight: 8.6 lbs
• Wattage: 35/45/55
• Lumens: 4725/6075/7425
• Color Temperature (CCT): 2950K 4000K 5000K
• Voltage: 120-277V
• Beam Angle: 90
• Dimmable: Dimmable

The TCP TWPUZDB1CCT LED Wall Pack provides versatile and energy‑efficient outdoor lighting with selectable wattage and color temperature options. Designed for commercial exterior lighting, it allows you to choose between 35W, 45W, or 55W output and 3000K, 4000K, or 5000K color temperatures. Operating on 120–277V universal voltage, this wall pack delivers bright, uniform illumination ideal for building exteriors, walkways, and perimeter security areas.

Ideal Applications

• Building and facility exterior wall lighting
• Security and perimeter illumination
• Walkways and entryway lighting
• Parking lot and stairwell lighting
• Commercial and industrial outdoor lighting

What’s Included / Features

The TCP TWPUZDB1CCT LED wall pack is engineered with field‑selectable wattage and CCT, allowing installers to adjust output during installation without changing the fixture. With selectable power levels of 35W, 45W, or 55W, and selectable color temperatures of 3000K, 4000K, or 5000K, this fixture provides flexibility for adapting light output and color to suit different outdoor environments and project needs. Depending on the selected settings, the wall pack can deliver bright and consistent illumination suitable for exterior walls, entrances, and outdoor spaces.

Constructed with a durable die‑cast aluminum housing and high‑quality lens, this LED wall pack is built to withstand outdoor conditions while maintaining long‑term performance. It supports 0–10V dimming for integration with lighting control systems and features IP65 wet location rating for dependable operation in harsh weather. With a long 50,000‑hour LED lifespan, this wall pack helps reduce maintenance needs while providing reliable lighting performance for commercial applications.

Key Features

• Selectable 35W / 45W / 55W power output
• Selectable 3000K / 4000K / 5000K color temperature
• 120–277V universal voltage operation
• 0–10V dimmable for lighting control systems
• Durable die‑cast aluminum housing for outdoor use
• IP65 wet‑location rated for dependable performance
• Long 50,000‑hour LED rated life
• Ideal for commercial and industrial exterior wall lighting

Download Spec Sheet
