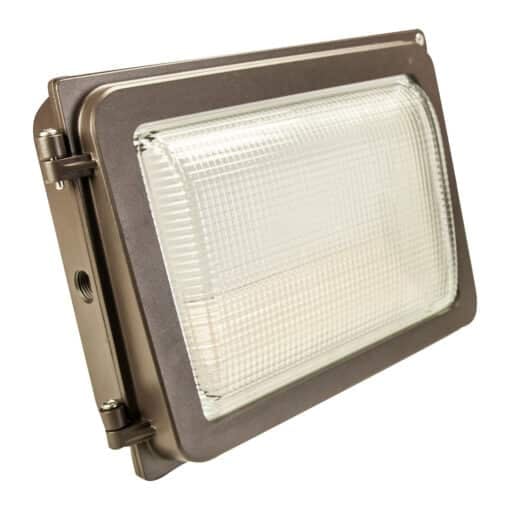

TCP LED Wall Pack 30/40/60W CCT Selectable 120-277V – SWPUZDSW5CCT

Key Specification

• Weight: 9 lbs
• Wattage: 30W/40W/60W
• Color Temperature (CCT): 3000K/4000K/5000K
• Lumens:4,200/5,600/7,800
• Voltage: 120-277V
• Dimmable: Dimmable

The TCP SFWPUZDSW5CCT LED Wall Pack offers adaptable and energy‑efficient outdoor illumination with field‑selectable wattage and color temperature settings. Able to operate at 30W, 40W, or 60W and 3000K, 4000K, or 5000K CCT, it delivers flexible lighting output to suit various exterior lighting needs. Built with durable construction and universal 120–277V compatibility, this wall pack ensures reliable performance for commercial and security lighting applications.

Ideal Applications

• Building exterior and perimeter lighting
• Entrances and loading dock illumination
• Parking areas and walkways
• Security and accent lighting
• Facility façades and service doors

What’s Included / Features

The TCP SFWPUZDSW5CCT wall pack is designed with field‑selectable wattage and color temperature, allowing installers to adjust the output during installation based on project requirements. With selectable 30W, 40W, or 60W power settings and 3000K / 4000K / 5000K color temperatures, this fixture provides adaptable illumination for different outdoor environments while reducing the need for multiple fixture models on hand. It delivers approximately 4200, 5600, or 7800 lumens depending on the selected setting.

Constructed with a die‑cast aluminum housing and impact‑resistant lens, this LED wall pack is built to withstand harsh outdoor conditions and maintain long‑term performance. It features IP65 wet‑location protection for dependable operation in exposed environments and supports integrated controls such as a standard photocell for automated dusk‑to‑dawn operation. With a 50,000‑hour rated life and CRI > 80, it ensures bright, uniform lighting while minimizing maintenance.

Key Features

• Selectable 30W / 40W / 60W power output
• Selectable 3000K / 4000K / 5000K color temperature
• Up to 7800 lumens depending on selection
• 120–277V universal voltage operation
• Durable die‑cast aluminum housing with impact‑resistant lens
• IP65 wet‑location rating for outdoor reliability
• Integrated photocell standard for automated control
• 50,000‑hour LED life for reduced maintenance
• High CRI > 80 for quality light performance
