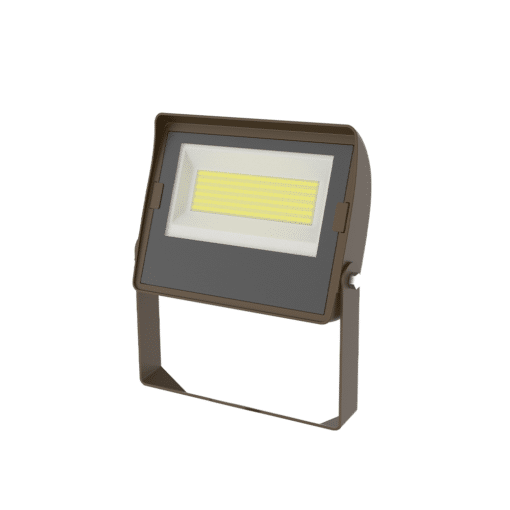

TCP LED Flood Light 30W/40W/60W, Selectable 3000K/4000K/5000K, 120-277V, Trunnion Mount – SFLYUZDSW7CCT

Key Specification

• Wattage: 60
• Lumens: 8300
• Voltage: 120-277V
• Dimmable: Dimmable
• Color Temperature (CCT): 3000K/4000K/5000K

The TCP SFLYUZDSW7CCT LED Flood Light delivers flexible and energy-efficient outdoor lighting with selectable wattage and color temperature options. Designed for versatility, it allows users to select 30W, 40W, or 60W output and 3000K, 4000K, or 5000K color temperatures to match different lighting environments. Operating on 120–277V universal voltage, it provides bright and uniform illumination for commercial and residential outdoor spaces. Built with durable construction and dimmable capability, it ensures reliable performance for security and accent lighting applications.

Ideal Applications

• Building and property security lighting
• Wall washing and façade illumination
• Sign and billboard lighting
• Parking areas and walkways
• Landscape and architectural lighting
• Commercial and industrial outdoor lighting

What’s Included / Features

The TCP SFLYUZDSW7CCT flood light is designed with field-selectable wattage and color temperature, allowing installers to easily adjust lighting output during installation. The selectable 30W, 40W, or 60W settings deliver approximately 5200, 6500, or 7800 lumens, providing adaptable brightness for various outdoor lighting needs. The 3000K, 4000K, or 5000K CCT options allow users to choose warm, neutral, or daylight illumination depending on the environment.

Constructed with a die-cast aluminum housing and impact-resistant tempered glass lens, this fixture is designed to withstand harsh outdoor conditions while maintaining long-term performance. It supports 0–10V dimming, operates on 120–277V, and features an IP65 wet-location rating for reliable outdoor use. With a 50,000-hour rated lifespan, it helps reduce maintenance and replacement costs while delivering consistent lighting performance.

Key Features

• Selectable 30W / 40W / 60W power output
• Selectable 3000K / 4000K / 5000K color temperature
• Up to 7,800 lumens of bright illumination
• 120–277V universal voltage operation
• 0–10V dimmable for lighting control systems
• Durable die-cast aluminum housing with tempered glass lens
• IP65 rated for wet outdoor locations
• Long 50,000-hour LED lifespan for reduced maintenance
• Yoke mount design for flexible installation

Download Spec Sheet
