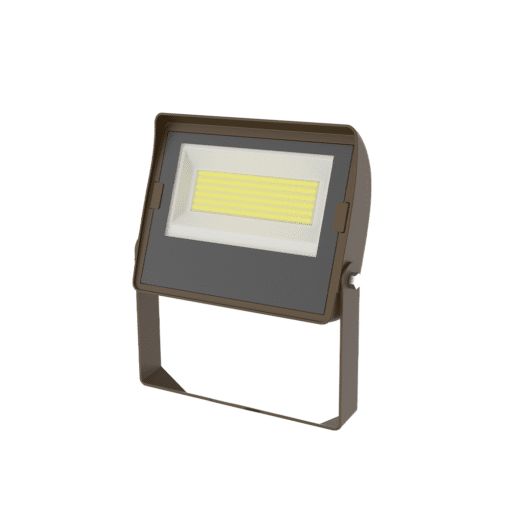

TCP LED Flood Light 10/20/30W CCT Selectable 120-277V – SFLYUZDSW4CCT

Key Specification

• Wattage: 30
• Lumens: 4200
• Color Temperature: 3000K/4000K/5000K
• Voltage: 120-277V
• Dimmable: Dimmable

The TCP SFLYUZDSW4CCT LED Flood Light offers flexible outdoor illumination with selectable wattage and color temperature settings. Designed for versatility, it allows users to choose between 10W, 20W, or 30W output and 3000K, 4000K, or 5000K color temperatures. Operating on 120–277V universal voltage, it delivers bright and uniform lighting for a wide range of outdoor applications. With durable construction and dimmable capability, this flood light provides reliable and energy-efficient performance.

Ideal Applications

• Building and property security lighting
• Wall washing and façade illumination
• Sign and billboard lighting
• Landscape and architectural lighting
• Parking areas and walkways
• Commercial and industrial outdoor lighting

What’s Included / Features

The TCP SFLYUZDSW4CCT flood light is designed with field-selectable wattage and color temperature, allowing installers to easily adjust the fixture during installation. The selectable 10W, 20W, or 30W output delivers approximately 1300, 2600, or 3900 lumens, providing adaptable brightness for different outdoor lighting needs. The selectable 3000K, 4000K, or 5000K color temperatures help create warm, neutral, or daylight illumination depending on the environment.

Constructed with a die-cast aluminum housing and impact-resistant tempered glass lens, the fixture is built to withstand demanding outdoor conditions. It features 0–10V dimming capability, IP65 wet-location protection, and a 50,000-hour rated life, helping reduce maintenance costs while delivering consistent lighting performance. The flood light also supports yoke mounting for flexible installation on walls, poles, or structures.

Key Features

• Selectable 10W / 20W / 30W power output
• Selectable 3000K / 4000K / 5000K color temperature
• Up to 3900 lumens of bright illumination
• 120–277V universal voltage operation
• 0–10V dimmable for lighting control systems
• Durable die-cast aluminum housing with tempered glass lens
• IP65 rated for wet outdoor locations
• Long 50,000-hour LED lifespan for reduced maintenance
• Yoke mount design for flexible installation
