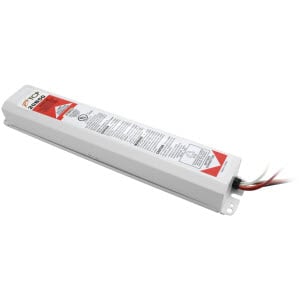

TCP Emergency Ballast – 20B50

Key Specification

• Weight: 2.8 Lbs
• Voltage: 120-277V
• Lumens: 1400
• Wattages: 3.3

The TCP 20B50 Emergency Ballast provides dependable backup lighting for fluorescent fixtures during power outages. It automatically switches to emergency mode when normal power fails, ensuring continuous illumination for safety and compliance. Designed for commercial and institutional lighting systems, it delivers high emergency light output and reliable performance. With a durable rechargeable battery and dual-voltage operation, it integrates easily into new or existing lighting installations.

Ideal Applications

• Office and commercial buildings
• Hospitals and healthcare facilities
• Schools and educational institutions
• Retail stores and shopping centers
• Emergency exit and egress pathway lighting

What’s Included / Features

The TCP 20B50 emergency ballast is engineered to convert standard fluorescent fixtures into reliable emergency lighting units. When AC power is interrupted, the ballast instantly switches to battery power and operates one or two lamps in emergency mode for a minimum of 90 minutes. This ensures sufficient illumination for safe evacuation and visibility during power failures.

Built with a high-temperature, maintenance-free nickel-cadmium battery, the ballast provides long service life and consistent performance. It offers up to 1400 lumens of initial emergency light output depending on lamp configuration and includes an LED test switch with charging indicator for easy monitoring and maintenance. The unit supports multiple fluorescent lamp types and works with most electronic ballasts, making it suitable for retrofit or new installations.

Key Features

• Provides up to 1400 lumens of emergency light output
• Minimum 90 minutes of emergency illumination
• Dual voltage input: 120/277V AC
• Maintenance-free nickel-cadmium battery with long life
• Compatible with T5, T5HO, T8, T12 and 4-pin CFL lamps
• Works with most one- to four-lamp electronic ballasts
• LED test switch and charging indicator included
• UL listed and suitable for damp locations
