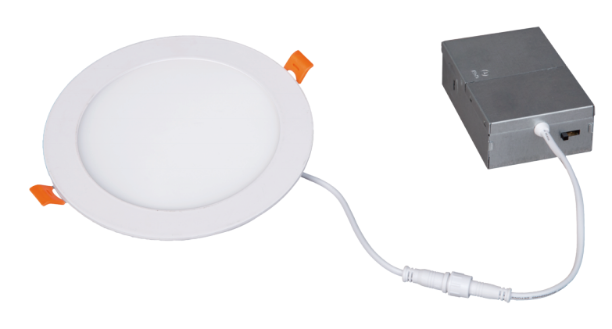

Raycos 6" Inch ULtra Slim Downlight 12W, 2700K/3000K/3500K/4000K/5000K, 120V - RY-USDL-R6-12W-5CCT

Key Specification

• Product Type: LED Ultra Slim Downlight / Surface Mini Panel
• Available Models: RY-USDL-R4-9W-5CCT and RY-USDL-R6-12W-5CCT
• Sizes: 4" Round and 6" Round
• Power: 9W (4") / 12W (6")
• Input Voltage: AC 120V
• Dimming: TRIAC Dimmable
• Lumens: 700 LM (4") / 1000 LM (6")
• Protection Rating: IP20 – For Indoor Use Only
• Power Factor: >0.7
• Beam Angle: 110°
• Colour Temperature: 5CCT – 2700K / 3000K / 3500K / 4000K / 5000K
• CRI (Ra): >80
• Working Life: Lumen maintenance over 70% at 50,000+ hours
• Operating Temperature: -25°C to +45°C (-13°F to +113°F)
• Certification: ETL / ENERGY STAR
• Construction: Die-cast aluminium body for optimal heat dissipation
• Installation: Snap-in mounting springs with easy wiring access
• Junction Box: Included; no additional hardware required
• Finish Options: White, Nickel, or Black
• Warranty: 5-Year Limited Warranty
• Applications: Commercial, residential, and hospitality
• Key Feature: 1" thin design suitable for tight ceiling spaces
• Driver: Separate steel-encased LED driver with watertight seal

The Raycos 6″ Ultra Slim Downlight provides efficient, versatile illumination in a compact low-profile design. Featuring 12W LED technology and five selectable colour temperatures from 2700K to 5000K, it allows you to customise the lighting atmosphere for different spaces. Designed for 120V applications, its ultra-slim profile is ideal for installations where ceiling space is limited.

Ideal Applications

• Living rooms and family rooms
• Bedrooms and hallways
• Kitchens and dining areas
• Offices and workspaces
• Retail stores and showrooms
• Hospitality and common areas
• Residential recessed lighting
• Commercial interior lighting
• Installations with limited ceiling clearance

What's Included

The Raycos 6″ Ultra Slim Downlight includes an integrated 12W LED light source with five selectable colour temperature options: 2700K, 3000K, 3500K, 4000K, and 5000K. This provides the flexibility to choose the preferred light appearance according to the room design and application requirements.

Its ultra-slim design makes it a practical solution for installations where traditional recessed housings may not be suitable due to limited ceiling space. Operating at 120V, this energy-efficient downlight provides a clean, modern lighting solution for a variety of residential and commercial applications.

Key Features Include:

• 6-inch ultra-slim LED downlight
• 12W energy-efficient LED technology
• 5 selectable colour temperatures: 2700K, 3000K, 3500K, 4000K, and 5000K
• 120V operation
• Ultra-slim, low-profile design
• Ideal for limited ceiling clearance
• Integrated LED light source
• Suitable for residential and commercial applications
• Ideal for new installations, renovations, and lighting upgrades
