Raycos 5″ Dual Mount Recessed/Surface 0-10V 9W, 2700K/3000K/3500K/4000K/5000K, 120-277V - RY-5R-SMD-5CCT 0-10V

Key Specification

• Color Temperature: 5CCT — 2700K / 3000K / 3500K / 4000K / 5000K
• Wattage: 14W
• Voltage: 120–277V
• Power Frequency: 60Hz
• Power Factor: >0.9
• CRI: 90
• Beam Angle: 120°
• Material: Metal + Composite
• Lifespan: ≥70,000 Hours
• Dimming: 0–10V Dimmable
• Lumens per Watt: 85.7 lm/W
• Base: E26 Conversion Included
• Operating Temperature: -20°C to 45°C
• Rating: Suitable for Wet Locations
• Warranty: 5-Year Limited Warranty

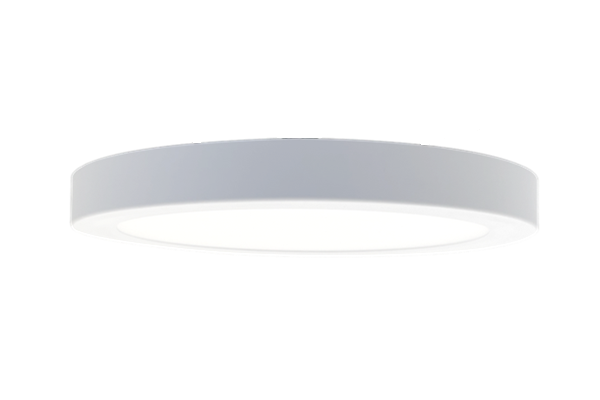

The Raycos 5″ Dual Mount LED provides flexible installation options with both recessed and surface-mount configurations. Featuring energy-efficient 9W LED technology, five selectable colour temperatures from 2700K to 5000K, and 0-10V dimming capability, it offers versatile lighting control for a wide range of applications. Designed for 120-277V operation, this compact fixture is suitable for both residential and commercial installations.

Ideal Applications

• Residential recessed lighting
• Commercial interior lighting
• Offices and workspaces
• Retail stores and showrooms
• Living rooms and family rooms
• Kitchens and dining areas
• Hallways and common areas
• Hospitality and commercial spaces
• New construction projects
• Remodel and renovation projects
• Installations requiring 0-10V dimming
• Applications requiring recessed or surface-mount installation

What's Included

The Raycos 5″ Dual Mount LED includes an integrated 9W LED light source with five selectable colour temperature options: 2700K, 3000K, 3500K, 4000K, and 5000K. This allows users to customise the lighting appearance according to the space, design, and application requirements.

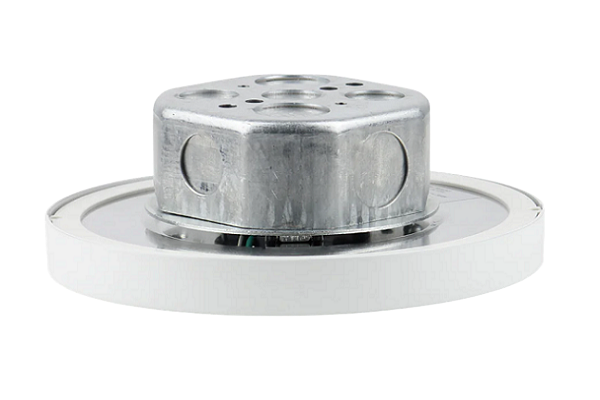

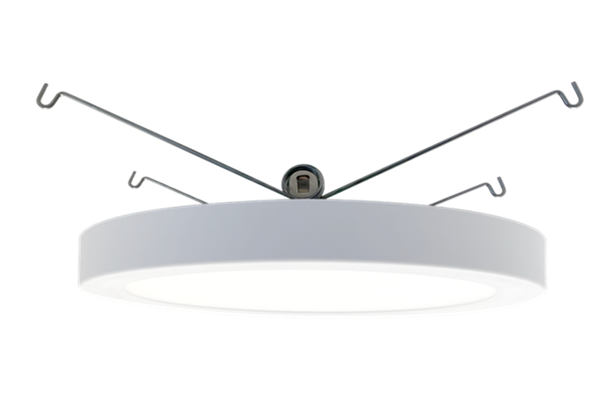

Its dual-mount design provides installation flexibility, allowing the fixture to be installed as either a recessed or surface-mounted light. The 0-10V dimming capability enables compatible lighting control systems to adjust illumination levels, making it suitable for applications requiring flexible lighting control. With a wide 120-277V operating range, this versatile fixture is suitable for a variety of residential and commercial projects.

Key Features Include:

• 5-inch dual-mount LED light
• Recessed or surface-mount installation
• 9W energy-efficient LED technology
• 5 selectable colour temperatures: 2700K, 3000K, 3500K, 4000K, and 5000K
• 0-10V dimming capability
• 120-277V operation
• Integrated LED light source
• Flexible installation options
• Compact, low-profile design
• Suitable for residential and commercial applications
• Ideal for new construction, remodel, and renovation projects
• Suitable for applications requiring adjustable lighting control

Need help matching a driver? Text us a picture and we’ll match it fast.
