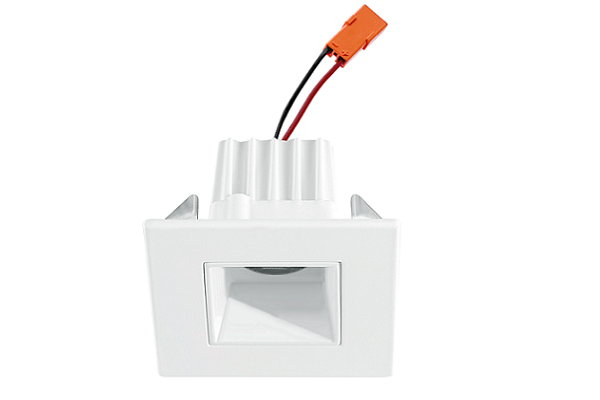

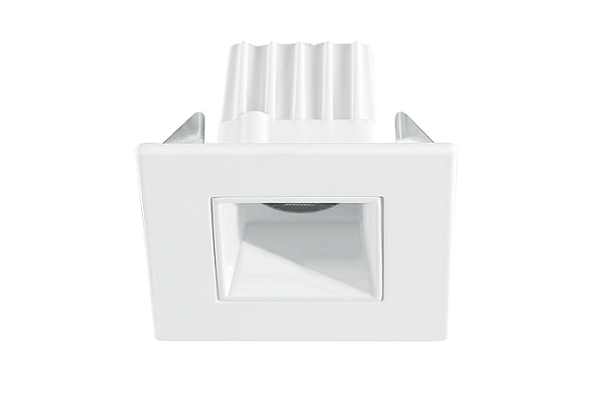

Raycos 2" Non IC Remodel Housing 9.5W, 3000K, 120V - TR2SQ-WH

Key Specification

• Housing Type: 2" New Construction IC Housing
• Model: H2-ICAT-NC
• Material: Aluminium
• Dimensions: 13 7/8" L × 14 5/8" W × 4 5/8" H
• Ceiling Cutout Size: 2 5/8" (66–68 mm)
• Maximum LED Trim Wattage: 9.5W
• Input Voltage/Frequency: 120V / 60Hz
• Light Output: 600 lumens
• Efficacy: 63 lm/W
• CRI: 90
• Colour Temperature: 3000K
• Trim Style: 2" Smooth Round Trim
• Operating Temperature: -30°C to 40°C
• Location Rating: Suitable for damp locations
• Junction Box: Listed for through-branch circuit wiring (4-in/4-out)
• Wiring Capacity: Maximum of four No. 12 AWG branch circuit conductors
• Wire Requirement: Use wire rated for at least 90°C

The Raycos 2″ Non-IC Remodel Housing provides an efficient and compact recessed lighting solution for renovation and retrofit applications. Featuring 9.5W LED technology and a warm 3000K colour temperature, it delivers comfortable, consistent illumination for a variety of interior spaces. Designed for 120V operation, this compact housing is ideal for suitable remodel installations.

Ideal Applications

• Remodel and renovation projects
• Residential recessed lighting
• Living rooms and family rooms
• Bedrooms and hallways
• Kitchens and dining areas
• Offices and commercial spaces
• Retail stores and showrooms
• Hospitality and common areas
• Compact recessed lighting installations

What's Included

The Raycos 2″ Non-IC Remodel Housing includes an integrated 9.5W LED light source designed to provide efficient and consistent illumination. Its 3000K colour temperature produces a warm and inviting light, making it suitable for residential interiors, hospitality areas, and other spaces requiring comfortable general lighting.

Designed specifically for remodel applications, this compact recessed housing provides a practical solution for upgrading or adding recessed lighting in existing ceilings. Operating at 120V, it is suitable for compatible installations where a Non-IC rated housing is appropriate.

Key Features Include:

• 2-inch Non-IC remodel housing
• 9.5W energy-efficient LED technology
• 3000K warm colour temperature
• 120V operation
• Compact recessed lighting design
• Designed for remodel and renovation applications
• Integrated LED light source
• Suitable for compatible ceiling installations
• Ideal for residential and commercial applications
