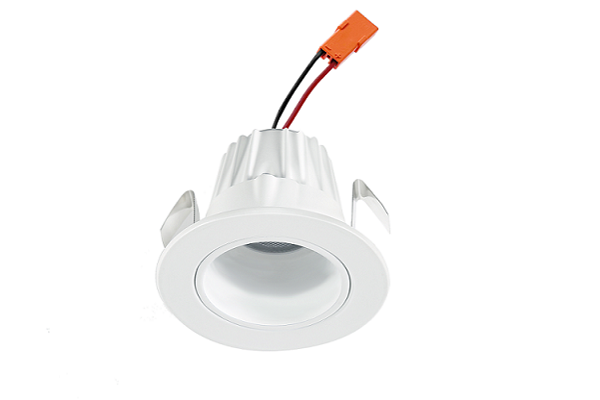

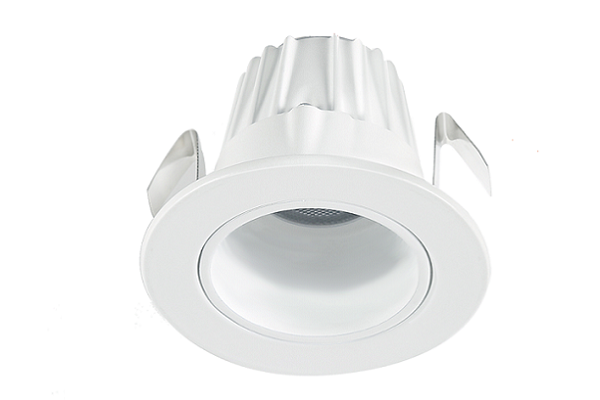

Raycos 2 Inch Smooth Round Led Trim 9.5W, 3000K, 120V - TR2SR-WH

Key Specification

• Housing Type: 2" New Construction IC Housing
• Model: H2-ICAT-NC
• Material: Aluminium
• Dimensions: 13 7/8" L × 14 5/8" W × 4 5/8" H
• Ceiling Cutout Size: 2 5/8" (66–68 mm)
• Maximum LED Trim Wattage: 9.5W
• Input Voltage/Frequency: 120V / 60Hz
• Light Output: 600 lumens
• Efficacy: 63 lm/W
• CRI: 90
• Colour Temperature: 3000K
• Trim Style: 2" Smooth Round Trim
• Operating Temperature: -30°C to 40°C
• Location Rating: Suitable for damp locations
• Junction Box: Listed for through-branch circuit wiring (4-in/4-out)
• Wiring Capacity: Maximum of four No. 12 AWG branch circuit conductors
• Wire Requirement: Use wire rated for at least 90°C

The Raycos 2″ Smooth Round LED Trim provides efficient and comfortable illumination in a compact recessed lighting design. Featuring 9.5W LED technology and a warm 3000K colour temperature, it delivers a clean and inviting light for a wide range of interior spaces. The smooth round trim offers a modern, minimalist appearance and is designed for 120V applications.

Ideal Applications

• Living rooms and family rooms
• Bedrooms and hallways
• Kitchens and dining areas
• Offices and workspaces
• Retail stores and showrooms
• Hospitality and common areas
• Residential recessed lighting
• Commercial interior lighting applications

What's Included

The Raycos 2″ Smooth Round LED Trim includes an integrated 9.5W LED light source designed to provide efficient and consistent illumination. Its 3000K colour temperature produces a warm, comfortable light that is well suited for residential interiors, hospitality spaces, and other applications where a welcoming lighting atmosphere is desired.

The smooth round trim provides a clean, modern finish that complements a variety of interior designs. Operating at 120V, this compact LED trim is a practical solution for suitable recessed lighting installations and upgrades.

Key Features Include:

• 2-inch smooth round LED trim
• 9.5W energy-efficient LED technology
• 3000K warm colour temperature
• 120V operation
• Smooth, modern trim design
• Compact recessed lighting solution
• Integrated LED light source
• Suitable for residential and commercial applications
• Ideal for recessed lighting installations and upgrades

Need help matching a driver? Text us a picture and we’ll match it fast.
