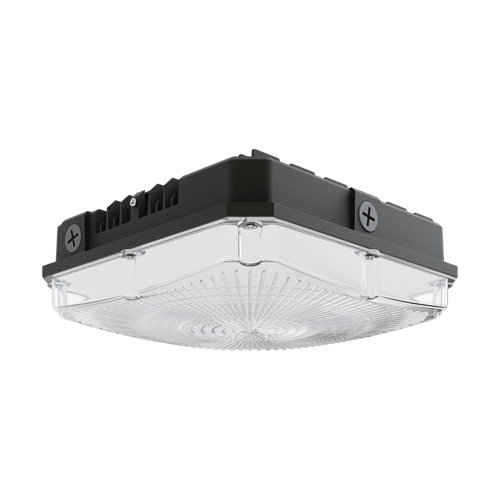

Portor Square Canopy Luminaire 40W/60W/70W, 3000K/4000K/5000K, 120-277V - PT-CAT2-HW-3CP

Key Specification

• CCT: 3000K / 4000K / 5000K
• CRI: 80+
• Dimmable: 0-10V Dimming
• Lighting Angle: 155º
• Voltage: 120V-277V
• Power Frequency: 50/60 Hz
• Power Factor: >0.9
• THD: ≤10%
• Working Temperature: -40ºF to 104ºF
• Storage Temperature: -40ºF to 158ºF
• IP Rating: IP65 Wet Locations
• Body Finish: Dark Bronze
• Warranty: 3-Year Limited Warranty

The PT-CAT2-HW-3CP Portor Square Canopy Luminaire is a high-performance LED lighting solution designed for dependable illumination in commercial and industrial canopy applications. Featuring selectable color temperatures of 3000K, 4000K, and 5000K, this fixture provides flexible lighting options to meet various visibility and ambiance requirements. With selectable wattages of 40W, 60W, and 70W, it delivers powerful and energy-efficient illumination while helping reduce operating and maintenance costs. Its sleek square design and rugged construction make it ideal for long-lasting indoor and outdoor use.

Ideal Applications

• Parking garages and covered parking structures
• Gas station and fueling canopies
• Commercial building entrances
• Warehouses and loading dock areas
• Walkways and covered pathways
• Retail centers and shopping plazas
• Hospitality and public facilities

The PT-CAT2-HW-3CP is engineered to provide reliable LED performance with customizable lighting control for a wide range of canopy installations. The selectable wattage and color temperature settings allow users to adjust brightness levels and lighting tone according to project needs. Designed for operation on 120-277V systems, this luminaire integrates seamlessly into standard commercial electrical infrastructures.

Built with durable outdoor-rated materials, this canopy fixture is designed to withstand harsh environmental conditions while maintaining long-lasting LED efficiency. Its advanced optical system ensures uniform light distribution and improved visibility, enhancing safety and lighting performance in covered outdoor and semi-outdoor spaces.

Features / What's Included

• Selectable Wattages: 40W / 60W / 70W
• Selectable CCT: 3000K / 4000K / 5000K
• Voltage Range: 120-277V
• Energy-efficient LED technology
• Modern square canopy luminaire design
• Uniform and dependable light distribution
• Durable outdoor-rated construction
• Long lifespan with reduced maintenance
• Suitable for commercial and industrial applications
• Model: PT-CAT2-HW-3CP
