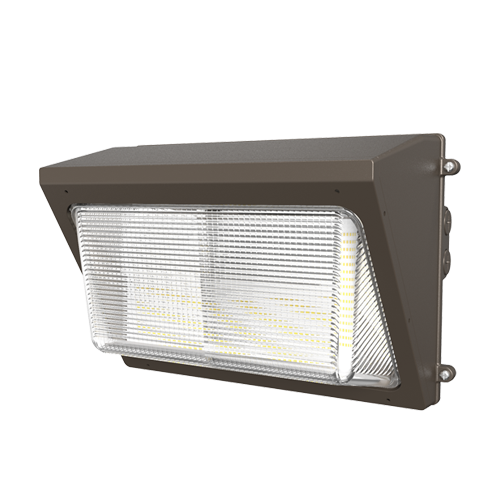

Portor Half Cut-off Wall Pack 40W/50W/60W, 3000K/4000K/5000K, 120-277V - PT-WPH-60-3CPB

Key Specification

• CCT: 3000K / 4000K / 5000K
• Distribution: Narrow / Medium / Wide
• CRI: 80
• Dimming: 0–10V Dimming
• Voltage: 100V–277V
• Power Frequency: 50/60 Hz
• Current: 0.9 – 0.33A
• Power Factor: >0.9
• THD: ≤20%
• Working Temperature: -40°F to 113°F
• EM Working Temperature: -32°F to 122°F
• IP Rating: IP65 Wet Location
• Warranty: 5-Year Limited Warranty (Standard)

The Portor Half Cut-off Wall Pack is a durable and energy-efficient outdoor LED lighting solution designed to provide reliable illumination for commercial and industrial exterior applications. Featuring selectable wattage options of 40W, 50W, and 60W along with adjustable color temperatures of 3000K, 4000K, and 5000K, this fixture offers flexible lighting customization for various outdoor environments. Its half cut-off wall pack design delivers broad and effective light distribution while helping reduce excessive glare for improved visibility and security. Designed for universal 120-277V operation, this luminaire combines dependable performance, energy savings, and long-lasting LED efficiency.

Ideal Applications

• Commercial building exteriors
• Warehouses and industrial facilities
• Parking areas and loading docks
• Security and perimeter lighting
• Schools and educational campuses
• Retail centers and shopping plazas
• Walkways and pedestrian pathways
• General outdoor wall-mounted lighting applications

What’s Included / Features

The Portor Half Cut-off Wall Pack is engineered to provide customizable and efficient outdoor illumination for commercial and industrial applications. Users can select between 40W, 50W, and 60W output settings to achieve the desired brightness level, while the integrated selectable color temperature functionality allows adjustment between 3000K warm white, 4000K neutral white, and 5000K daylight illumination. This versatility makes the fixture ideal for security lighting, building exteriors, pathways, and perimeter applications.

Its half cut-off design provides broad and evenly distributed illumination with improved glare control for enhanced visibility and outdoor safety. Built with advanced LED technology, this fixture delivers high energy efficiency, long operational life, and reduced maintenance requirements. The durable housing is designed for dependable outdoor performance, while the universal 120-277V compatibility supports flexible installation across a variety of electrical systems.

Features

• Selectable wattage: 40W / 50W / 60W
• Selectable color temperatures: 3000K / 4000K / 5000K
• Universal 120-277V operation
• Half cut-off wall pack design
• Bright and uniform outdoor illumination
• Improved glare control and light distribution
• High-performance LED technology
• Durable construction for outdoor applications
• Energy-efficient and low-maintenance operation
• Suitable for commercial and industrial environments
• Long-lasting and reliable performance
• Quick and easy installation

Need help matching a driver? Text us a picture and we’ll match it fast.
