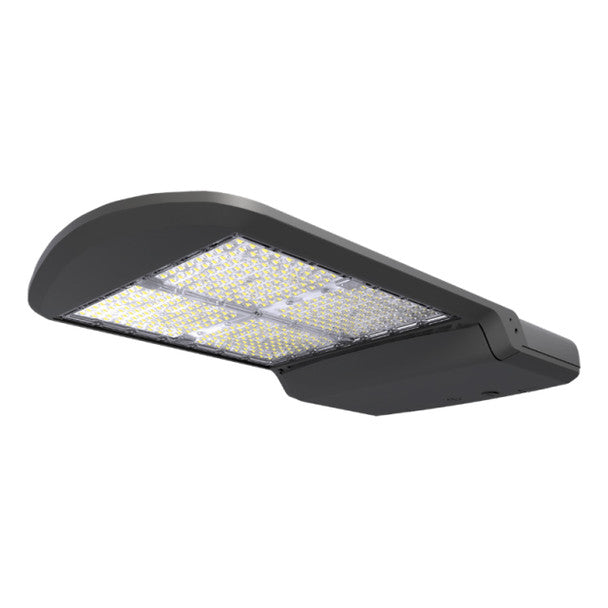

Portor Area/Site Light 100W/120W/150W, 3000K/4000K/5000K, 100-277V - PT-AL2N-150-3CP-W
Portor Area/Site Light 100W/120W/150W, 3000K/4000K/5000K, 100-277V - PT-AL2N-150-3CP-W
SKU:PT-AL2N-150-3CP-W
Couldn't load pickup availability
Key Specification
-
CCT: 3000K / 4000K / 5000K
-
CRI: 70+
-
Dimming: 0-10V dimming
-
Light Distribution: Type III (Standard), Type IV & V (Optional)
-
Input Voltage: 100–277V (347–480V optional)
-
Power Frequency: 50/60 Hz
-
Current: 0.9–0.33A
-
Power Factor: >0.9
-
Total Harmonic Distortion (THD): ≤15%
-
Operating Temperature: -40°F to 122°F
-
IP Rating: IP65 (Wet Location Rated)
-
Warranty: 5-Year Limited Warranty
The Portor PT-AL2N-150-3CP-W Area/Site Light is a versatile LED lighting solution designed for commercial, industrial, and municipal outdoor applications. Available in 100W, 120W, and 150W configurations with selectable 3000K, 4000K, and 5000K colour temperatures, it delivers efficient, high-quality illumination while reducing energy consumption. Operating on a universal 100-277V input range, this fixture provides reliable performance, long service life, and low maintenance in demanding outdoor environments.
Ideal Applications
-
Parking lots and parking garages
-
Commercial building exteriors
-
Industrial facilities and warehouses
-
Roadways and access roads
-
Educational campuses
-
Public parks and recreational areas
-
Retail shopping centres
-
Loading docks and service yards
-
Security and perimeter lighting
-
Municipal and government facilities
What’s Included / Features
The PT-AL2N-150-3CP-W combines energy efficiency, durability, and lighting flexibility in a professional-grade outdoor fixture. With multiple wattage options and selectable colour temperatures, it allows installers to customise illumination levels for a wide range of outdoor applications while helping reduce operating costs.
Constructed with a durable die-cast aluminium housing and weather-resistant design, this LED area light is built for long-term outdoor operation. The universal 100-277V operating voltage simplifies installation across various electrical systems, making it suitable for both retrofit projects and new construction installations.
Key Features
-
Available in 100W, 120W, and 150W power options
-
Selectable 3000K, 4000K, and 5000K colour temperatures
-
100-277V universal input voltage
-
High-efficiency LED technology for reduced energy consumption
-
Bright, uniform illumination with reduced glare
-
Durable die-cast aluminium housing
-
Weather-resistant construction for outdoor reliability
-
Long operational lifespan with minimal maintenance
-
Ideal replacement for traditional HID area lighting
-
Suitable for commercial, industrial, municipal, and security lighting applications
