Portor Architectural LED Bollard 14W/19W/24W, Round Post Top Open Style, Selectable 3000K/4000K/5000K, 120-277V – PT-ABL-R-PTP-O-3CP

Key Specification

• CCT: 3000K / 4000K / 5000K
• CRI: 70+
• Dimmable: 0-10V Dimmable
• Voltage: 120V-277V
• Power Factor: >0.9
• Surge Protector: 4KV
• Working Temperature: -40ºF to 113ºF
• IP Rating: IP65 Wet Location
• Warranty: 5-Year Limited Warranty

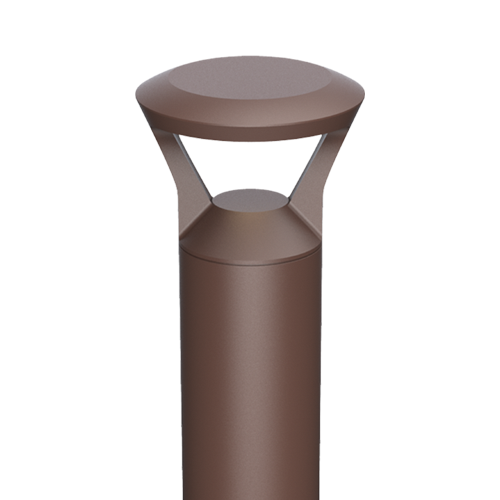

The PT-ABL-R-PTP-O-3CP Portor Architectural Round Post-top Open Style Bollard is a modern outdoor lighting solution designed to provide efficient illumination with an elegant architectural appearance. Featuring selectable color temperatures of 3000K, 4000K, and 5000K, this fixture offers flexible lighting options to suit a variety of outdoor environments. With selectable wattages of 14W, 19W, and 24W, it delivers dependable brightness while maintaining energy efficiency. Its open-style post-top design enhances outdoor aesthetics while providing balanced and effective light distribution.

Ideal Applications

• Pathways and pedestrian walkways
• Commercial landscapes
• Parks and recreational spaces
• Residential communities
• Courtyards and plazas
• Campus and municipal lighting
• Hospitality and outdoor seating areas

The PT-ABL-R-PTP-O-3CP is engineered for reliable outdoor performance while complementing modern architectural settings. The selectable wattage and color temperature features allow users to customize illumination levels and lighting tone based on project requirements. Operating on 120-277V systems, this bollard fixture is compatible with a wide range of commercial and residential electrical installations.

Constructed with durable outdoor-rated materials, this luminaire is built to withstand varying weather conditions while delivering long-lasting LED performance. Its open-style optical design provides uniform illumination with enhanced visibility and visual comfort, making it an excellent choice for decorative and functional outdoor lighting applications.

Features / What's Included

• Selectable Wattages: 14W / 19W / 24W
• Selectable CCT: 3000K / 4000K / 5000K
• Voltage Range: 120-277V
• Energy-efficient LED technology
• Architectural round post-top open style design
• Uniform and balanced light distribution
• Durable outdoor-rated construction
• Long operational lifespan with low maintenance
• Suitable for commercial and residential outdoor applications
• Model: PT-ABL-R-PTP-O-3CP

Need help matching a driver? Text us a picture and we’ll match it fast.

Download Spec Sheet
