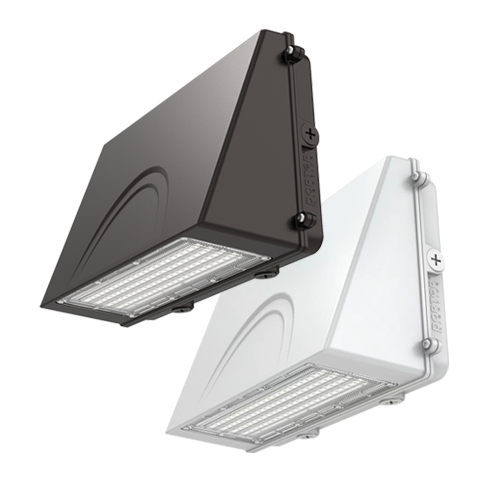

Portor Architectural Full Cut-Off Wall Pack 36W/48W/60W, 3000K/4000K/5000K, 120-277V, Bronze Finish – PT-WPF-LW-3CP

Key Specification

• Wattage: LW (36W / 48W / 60W) / HW (72W / 96W / 120W)
• CCT: 3000K / 4000K / 5000K
• CRI: 80+
• Dimming: 0–10V Dimming
• Voltage: 120V–277V
• Power Frequency: 50/60 Hz
• Power Factor: >0.9
• THD: ≤20%
• Working Temperature: -40°F to 113°F
• IP Rating: IP65 Wet Location
• Warranty: 5-Year Limited Warranty (Standard)

The Portor Architectural Full Cut-Off Wall Pack Luminaire is a sleek and energy-efficient outdoor LED lighting solution designed to provide reliable illumination with controlled light distribution and reduced glare. Featuring selectable wattage options of 36W, 48W, and 60W along with adjustable color temperatures of 3000K, 4000K, and 5000K, this fixture offers flexible lighting customization for commercial and industrial exterior applications. Its architectural full cut-off design helps minimize uplight and light trespass while delivering bright and uniform illumination for improved visibility and security. Designed for universal 120-277V operation, this luminaire combines dependable performance, modern styling, and long-lasting LED efficiency.

Ideal Applications

• Commercial building exteriors
• Warehouses and industrial facilities
• Parking garages and loading areas
• Security and perimeter lighting
• Schools and educational campuses
• Retail centers and shopping plazas
• Walkways and pedestrian pathways
• General outdoor wall-mounted lighting applications

What’s Included / Features

The Portor Architectural Full Cut-Off Wall Pack Luminaire is engineered to provide customizable and efficient outdoor illumination for demanding commercial and industrial environments. Users can select between 36W, 48W, and 60W output settings to achieve the desired brightness level, while the integrated selectable color temperature functionality allows adjustment between 3000K warm white, 4000K neutral white, and 5000K daylight illumination. This versatility makes the fixture ideal for security lighting, building exteriors, pathways, and perimeter applications.

Its full cut-off architectural design helps reduce glare and unwanted uplight while maintaining bright and evenly distributed illumination for enhanced outdoor visibility and safety. Built with advanced LED technology, this fixture delivers high energy efficiency, long operational life, and reduced maintenance requirements. The durable outdoor-rated housing is designed for dependable long-term performance, while the universal 120-277V compatibility supports flexible installation across a wide range of electrical systems.

Features

• Selectable wattage: 36W / 48W / 60W
• Selectable color temperatures: 3000K / 4000K / 5000K
• Universal 120-277V operation
• Architectural full cut-off wall pack design
• Bright and uniform outdoor illumination
• Reduced glare and controlled light distribution
• High-performance LED technology
• Durable construction for outdoor applications
• Energy-efficient and low-maintenance operation
• Suitable for commercial and industrial environments
• Long-lasting and reliable performance
• Quick and easy installation
