Portor Lighting

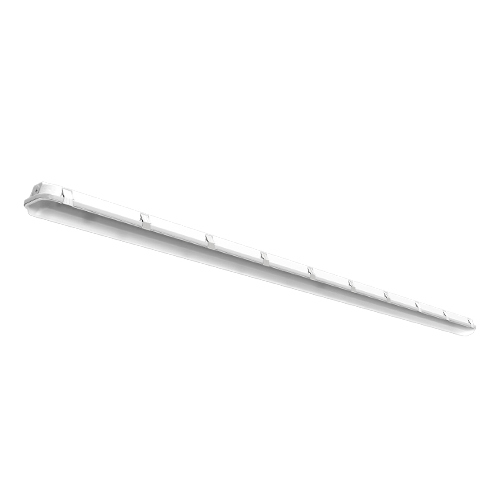

Portor 8’ Modest Style Vapor-Seal Luminaire 70W/80W/90W, 3500K/4000K/5000K, 120-277V - PT-VS-MO-8F-3CP

Portor 8’ Modest Style Vapor-Seal Luminaire 70W/80W/90W, 3500K/4000K/5000K, 120-277V - PT-VS-MO-8F-3CP

PT-VS-MO-8F-3CP

$259.64 USD
$259.64 USD
Sale Sold out

Key Specification

  • CCT: 3500K / 4000K / 5000K
  • CRI: 80+
  • Dimming: 1-10V dimmable
  • Beam Angle: 110°
  • Input Voltage: 120–277V, 50/60 Hz
  • Current: 0.9–0.33A
  • Power Factor: >0.9
  • THD: ≤10%
  • Operating Temperature: -40°F to 122°F
  • IP Rating: IP66
  • Warranty: 3-Year Limited Warranty

The Portor PT-VS-MO-8F-3CP Modest Style Vapor-Seal Luminaire is a high-performance LED fixture designed for demanding commercial and industrial environments. Featuring selectable 70W, 80W, and 90W power settings and adjustable 3500K, 4000K, and 5000K colour temperatures, it delivers bright, uniform illumination with excellent energy efficiency. Operating on a universal 120-277V input range, this 8-foot vapor-seal luminaire provides superior environmental protection, reduced maintenance, and long service life for wet and harsh locations.

Ideal Applications

  • Factories and manufacturing facilities
  • Warehouses and distribution centres
  • Loading docks
  • Parking garages
  • Cold storage and refrigeration rooms
  • Food processing facilities
  • Laboratories
  • Car washes
  • Tunnels and utility areas
  • Marine and vessel lighting applications

What’s Included / Features

The PT-VS-MO-8F-3CP combines field-selectable wattage and colour temperature in a slim, rugged vapor-sealed enclosure. Installers can choose between 70W, 80W, or 90W output levels and 3500K, 4000K, or 5000K CCT settings to match the lighting requirements of each application while optimising energy consumption.

Key Features

  • Selectable 70W / 80W / 90W power settings
  • Selectable 3500K / 4000K / 5000K colour temperatures
  • 120-277V universal input voltage
  • 0-10V dimmable
  • IP66 and NEMA 4X rated
  • High-efficiency LED technology
  • Polycarbonate housing and lens
  • Surface and suspension mounting options
  • Long operational lifespan
  • Suitable for wet and harsh industrial environments
  • Ideal for warehouses, parking garages, cold storage, and utility areas

Need help matching a driver? Text us a picture and we’ll match it fast.
