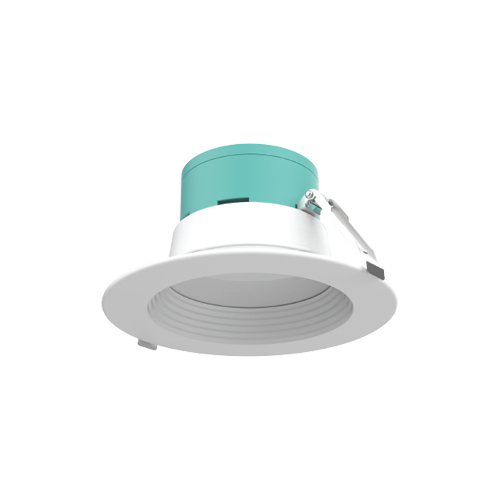

Portor 6″ Retrofit Recessed Commercial Grade Downlight 12W/17W/22W, 27K/30K/35K/40K/50K, 100V-277V - PT-CDL-6I-22-5C3P-3

Key Specification

• CCT: 2700K / 3000K / 3500K / 4000K / 5000K
• CRI: 96
• Dimming: 0–10V Dimming, 5–100% Smooth Dimming
• Voltage: 100V–277V
• Power Frequency: 50/60 Hz
• Current: 0.9 – 0.33A
• Power Factor: >0.9
• THD: ≤20%
• IP Rating: IP65 Wet Location
• Warranty: 5-Year Limited Warranty (Standard)

The Portor 6″ Retrofit Recessed Commercial Grade Downlight is a high-performance LED lighting solution engineered for reliable and energy-efficient illumination in demanding residential and commercial environments. Featuring selectable wattage options of 12W, 17W, and 22W along with adjustable 5CCT technology from warm 2700K to bright daylight 5000K, this fixture offers exceptional flexibility for various lighting applications. Its commercial-grade construction ensures dependable long-term performance, while the retrofit design allows seamless installation into existing recessed housings. Designed for universal 100V-277V operation, this downlight delivers powerful illumination with modern energy-saving efficiency.

Ideal Applications

• Commercial office buildings
• Retail stores and shopping centers
• Hospitality and hotel interiors
• Residential living spaces and kitchens
• Hallways and common areas
• Multifamily housing developments
• Renovation and retrofit projects
• General indoor recessed lighting applications

What’s Included / Features

The Portor 6-inch commercial grade retrofit downlight is engineered to provide versatile and professional-quality illumination for both residential and commercial spaces. Users can select between 12W, 17W, and 22W output levels to achieve the desired brightness, while the integrated 5CCT selectable technology allows quick adjustment between warm, neutral, and cool daylight color temperatures. This adaptability makes the fixture ideal for ambient, task, and general lighting applications.

Built with commercial-grade durability, this fixture is designed to withstand high-use environments while maintaining reliable and consistent lighting performance. Its retrofit configuration simplifies installation into existing recessed housings, making it an efficient upgrade solution for modern lighting systems. Advanced LED technology provides bright and uniform illumination with reduced energy consumption, long operational life, and minimal maintenance requirements.

Features

• Selectable wattage: 12W / 17W / 22W
• Universal 100V-277V operation
• 5CCT selectable: 2700K / 3000K / 3500K / 4000K / 5000K
• Commercial-grade retrofit downlight design
• Bright and uniform illumination
• High-performance LED technology
• Retrofit installation for recessed housings
• Energy-efficient and low-maintenance operation
• Suitable for residential and commercial applications
• Durable long-lasting construction
• Quick and easy installation
• Modern architectural appearance

Need help matching a driver? Text us a picture and we’ll match it fast.
