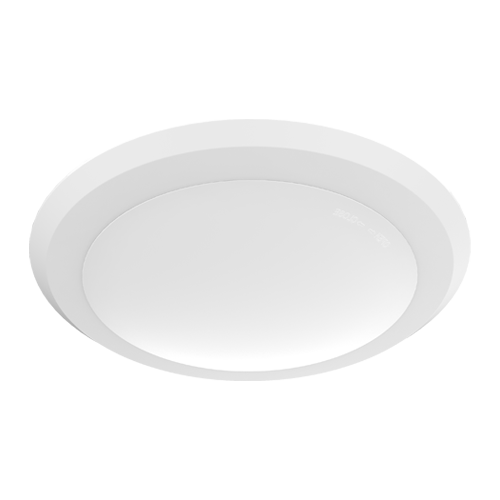

Portor 6″ Disk Downlight 12W, 27K/30K/35K/40K/50K, 120V - PT-DDL-6I-12W-5CCT-BULK24-3
Portor 6″ Disk Downlight 12W, 27K/30K/35K/40K/50K, 120V - PT-DDL-6I-12W-5CCT-BULK24-3
SKU:PT-DDL-6I-12W-5CCT-BULK24-3
Couldn't load pickup availability
Key Specification
-
Input Voltage: 120V
-
Power Frequency: 60 Hz
-
CRI: 90
-
Beam Angle: 120°
-
Dimming: Triac dimmable
-
Power Factor: >0.9
-
Location Rating: Suitable for wet locations
-
Operating Temperature: 14°F to 122°F (-10°C to 50°C)
-
Lifespan: 50,000 hrs (based on 3 hrs/day)
-
Warranty: 5-Year Limited Warranty
The Portor PT-DDL-6I-12W-5CCT-BULK24-3 Disk Downlight is a versatile and energy-efficient LED lighting solution designed for residential and light commercial interiors. Featuring 12W output and selectable 2700K, 3000K, 3500K, 4000K, and 5000K colour temperatures, it allows users to customise the lighting atmosphere for different spaces. Supplied in a BULK24 configuration, this low-profile 6″ disk-style downlight is ideal for larger projects requiring multiple fixtures. Operating on 120V, it delivers reliable illumination, easy installation, and long-lasting performance.
Ideal Applications
-
Multi-unit residential developments
-
Apartment and condominium projects
-
Hotels and hospitality installations
-
Retail stores and boutiques
-
Offices and commercial interiors
-
Hallways and corridors
-
Kitchens and dining areas
-
Bathrooms and utility rooms
-
Renovation and retrofit projects
-
General indoor ambient lighting
What’s Included / Features
The PT-DDL-6I-12W-5CCT-BULK24-3 is designed to provide flexible and comfortable illumination in a sleek disk format. Its integrated 5CCT selectable technology allows installers to choose the most suitable colour temperature during installation, reducing the need to stock multiple fixture variations.
Built with an integrated LED design, this downlight offers efficient operation and reduced maintenance requirements. The low-profile 6″ configuration is well suited for spaces with limited ceiling depth, while the BULK24 packaging makes it an efficient choice for large-scale residential and commercial projects.
Key Features
-
12W energy-efficient LED output
-
5CCT selectable: 2700K / 3000K / 3500K / 4000K / 5000K
-
120V operating voltage
-
Low-profile 6″ disk downlight design
-
BULK24 configuration for larger installations
-
Integrated LED for long-lasting performance
-
Uniform illumination with reduced glare
-
Suitable for residential and light commercial interiors
-
Easy installation for new and retrofit applications
-
Ideal for spaces with limited ceiling depth
-
Low maintenance operation
