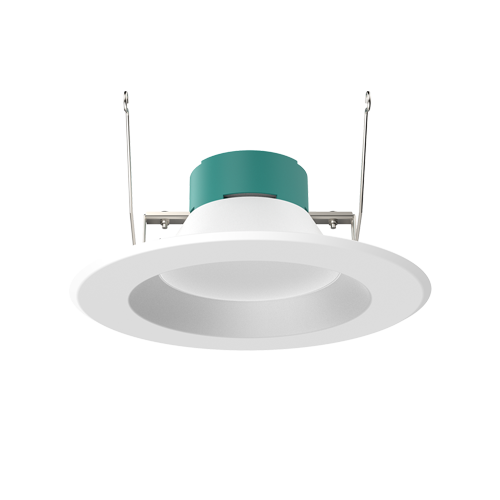

Portor 5″/6″ Smooth Retrofit Recessed Downlight 7W/10W/14W, 27K/30K/35K/40K/50K, 120V - PT-DLR-S-6I-14-5C3P-2

Key Specification

• Wattage: 7W / 10W / 14W
• CCT: 2700K / 3000K / 3500K / 4000K / 5000K
• CRI: 90
• Dimming: Triac Dimming
• Voltage: 120V
• Power Frequency: 60 Hz
• Beam Angle: 100º
• Power Factor: >0.9
• Working Temperature: -14ºF to 122ºF
• IP Rating: IP40, Suitable for Damp Locations
• Warranty: 5-Year Limited Warranty (Standard)

The Portor 5″/6″ Smooth Retrofit Recessed Downlight is a modern and energy-efficient LED lighting solution designed to provide clean, uniform illumination for residential and commercial interiors. Featuring selectable wattage options of 7W, 10W, and 14W along with five adjustable color temperatures from warm 2700K to daylight 5000K, this fixture delivers exceptional flexibility for a wide range of lighting environments. Its smooth trim design offers a sleek architectural appearance that blends seamlessly into ceilings while maintaining comfortable and consistent light output. Designed for retrofit installations, this downlight easily fits into existing 5-inch and 6-inch recessed housings.

Ideal Applications

• Residential living rooms and bedrooms
• Kitchens and dining areas
• Hallways and entryways
• Office and workspace lighting
• Retail and commercial interiors
• Hospitality and hotel environments
• Renovation and remodeling projects
• General indoor recessed lighting applications

What’s Included / Features

The Portor smooth retrofit recessed downlight is engineered for versatile lighting performance and easy customization. Users can select between 7W, 10W, and 14W output settings to achieve the desired brightness level, while the integrated 5CCT technology allows seamless adjustment between warm, neutral, and cool lighting tones. This adaptability makes the fixture suitable for both residential comfort lighting and commercial task illumination.

Its smooth trim construction creates a refined and contemporary ceiling appearance while ensuring even light distribution with minimal glare. The fixture also supports Triac dimming for smooth brightness adjustment and delivers high CRI performance for enhanced color accuracy and visual clarity. Built for easy retrofit installation, the downlight is compatible with most standard 5-inch and 6-inch recessed cans and offers long-lasting LED efficiency with low maintenance requirements.

Features

• Selectable wattage: 7W / 10W / 14W
• 5CCT selectable: 2700K / 3000K / 3500K / 4000K / 5000K
• Smooth trim modern design
• Fits 5″ and 6″ recessed housings
• High CRI 90 for accurate color rendering
• Triac dimmable functionality
• Wide 100° beam angle
• 120V operation
• Energy-efficient LED technology
• Quick and easy retrofit installation
• Suitable for residential and commercial use
• Long-lasting and low-maintenance performance

Need help matching a driver? Text us a picture and we’ll match it fast.
