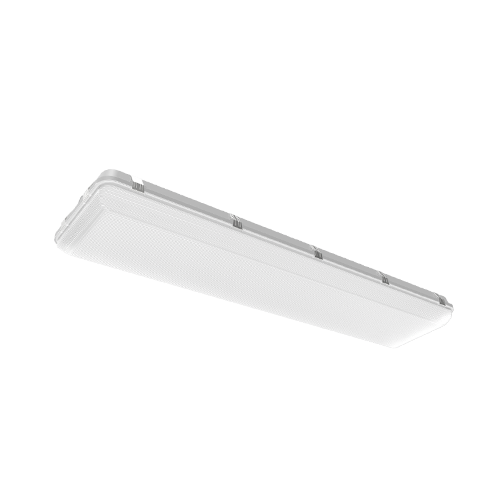

Portor 4′ Wide Style Vapor-Seal Luminaire 150W/175W/200W, 3500K/4000K/5000K, 120-277V - PT-VS-WD-4F-HW-3CP

Key Specification

• CCT: 3500K / 4000K / 5000K
• CRI: 80+
• Dimming: 1-10V dimmable
• Beam Angle: 110°
• Input Voltage: 120–277V, 50/60 Hz
• Current: 0.9–0.33A
• Power Factor: >0.9
• THD: ≤10%
• Operating Temperature: -40°F to 122°F
• IP Rating: IP66
• Warranty: 5-Year Limited Warranty

The Portor PT-VS-WD-4F-HW-3CP Wide Style Vapor-Seal Luminaire is a high-output LED fixture designed for demanding commercial and industrial environments. Featuring selectable 150W, 175W, and 200W power settings and adjustable 3500K, 4000K, and 5000K colour temperatures, it delivers up to 20,400 lumens of bright, uniform illumination. Operating on a universal 120-277V input range, this 4-foot vapor-seal luminaire provides excellent energy efficiency, superior environmental protection, and long service life.

Ideal Applications

• Factories and manufacturing facilities
• Warehouses and distribution centres
• Loading docks
• Parking garages
• Cold storage and refrigeration rooms
• Food processing facilities
• Laboratories
• Car washes
• Tunnels and utility areas
• Marine and vessel lighting applications

What’s Included / Features
