Portor Lighting

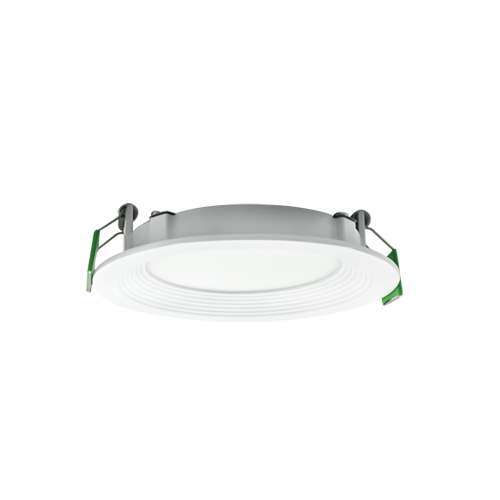

Portor 4″ Round Slim Baffle Recessed Downlight 9W, 27K/30K/35K/40K/50K, 120V - PT-DLSB-R-4I-9W-5CCT-3
Portor 4″ Round Slim Baffle Recessed Downlight 9W, 27K/30K/35K/40K/50K, 120V - PT-DLSB-R-4I-9W-5CCT-3
SKU:PT-DLSB-R-4I-9W-5CCT-3
Couldn't load pickup availability
Key Specification
-
CCT: 2700K / 3000K / 3500K / 4000K / 5000K
-
CRI: 90
-
Dimming: Triac dimmable
-
Input Voltage: 120V
-
Power Frequency: 60 Hz
-
Beam Angle: 120°
-
Power Factor: >0.9
-
Total Harmonic Distortion (THD): ≤20%
-
Operating Temperature: 14°F to 122°F (-10°C to 50°C)
-
IP Rating: Wet Location Rated
-
Warranty: 5-Year Limited Warranty
The Portor PT-DLSB-R-4I-9W-5CCT-3 Round Slim Baffle Recessed Downlight is a compact and energy-efficient LED lighting solution designed for residential and light commercial interiors. Featuring 9W output, a baffle trim design for enhanced glare control, and selectable 2700K, 3000K, 3500K, 4000K, and 5000K colour temperatures, it provides both visual comfort and lighting flexibility. Operating on 120V, this ultra-slim 4″ recessed downlight delivers reliable illumination, easy installation, and long-lasting performance in areas with limited ceiling depth.
Ideal Applications
-
Residential living rooms and bedrooms
-
Kitchens and dining areas
-
Hallways and corridors
-
Bathrooms and utility rooms
-
Apartment and condominium units
-
Retail stores and boutiques
-
Offices and reception areas
-
Hospitality and guest room lighting
-
Renovation and retrofit projects
-
Architectural accent and ambient lighting
What’s Included / Features
The PT-DLSB-R-4I-9W-5CCT-3 is designed to deliver flexible and comfortable illumination in a slim recessed format with improved glare reduction. Its integrated 5CCT selectable technology allows installers to choose the most suitable colour temperature during installation, reducing the need to stock multiple fixture variations.
The baffle trim design helps minimise direct glare and creates a softer lighting effect, making it ideal for spaces where visual comfort is important. Built with an integrated LED design, this downlight offers efficient operation, reduced maintenance requirements, and straightforward installation in both new construction and retrofit applications.
Key Features
-
9W energy-efficient LED output
-
5CCT selectable: 2700K / 3000K / 3500K / 4000K / 5000K
-
120V operating voltage
-
Ultra-slim 4″ round recessed downlight design
-
Baffle trim for enhanced glare control
-
Integrated LED for long-lasting performance
-
Uniform illumination with improved visual comfort
-
Suitable for residential and light commercial interiors
-
Easy installation for new and retrofit applications
-
Ideal for spaces with limited ceiling depth
-
Low maintenance operation
