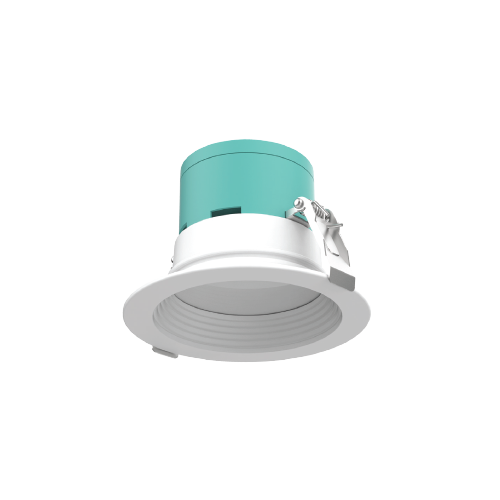

Portor 4″ Retrofit Recessed Commercial Grade Downlight, 6W/9W/12W, 27K/30K/35K/40K/50K, 120-277V - PT-CDL-4I-12-5C3P-3

Key Specification

• CCT: 2700K / 3000K / 3500K / 4000K / 5000K
• CRI: 96
• Dimming: 0–10V Dimming, 5–100% Smooth Dimming
• Voltage: 100V–277V
• Power Frequency: 50/60 Hz
• Current: 0.9 – 0.33A
• Power Factor: >0.9
• THD: ≤20%
• IP Rating: IP65 Wet Location
• Warranty: 5-Year Limited Warranty (Standard)

The Portor 4″ Retrofit Recessed Commercial Grade Downlight is a durable and energy-efficient LED lighting solution designed for demanding residential and commercial applications. Featuring selectable wattage options of 6W, 9W, and 12W along with adjustable 5CCT technology from warm 2700K to bright daylight 5000K, this fixture provides exceptional flexibility for a wide range of lighting environments. Its commercial-grade construction delivers reliable performance and long-lasting durability, while the retrofit design allows easy installation into existing recessed housings. Designed for universal 120-277V operation, this downlight combines professional-grade illumination with modern energy-saving efficiency.

Ideal Applications

• Commercial office buildings
• Retail stores and shopping spaces
• Hospitality and hotel interiors
• Residential living areas and kitchens
• Hallways and common areas
• Multifamily housing projects
• Renovation and retrofit applications
• General indoor recessed lighting installations

What’s Included / Features

The Portor 4-inch commercial grade retrofit downlight is engineered to deliver flexible and high-performance illumination for both residential and commercial environments. Users can select between 6W, 9W, and 12W output settings to achieve the desired brightness level, while the integrated 5CCT selectable technology allows easy adjustment between warm, neutral, and daylight color temperatures. This versatility makes the fixture suitable for ambient, task, and general lighting applications.

Built with commercial-grade durability, this fixture is designed for long-term reliability and dependable operation in high-use environments. Its retrofit configuration enables quick installation into compatible recessed housings, making it an ideal upgrade for existing lighting systems. Advanced LED technology ensures bright and uniform illumination with reduced energy consumption and minimal maintenance requirements.

Features

• Selectable wattage: 6W / 9W / 12W
• Universal 120-277V operation
• 5CCT selectable: 2700K / 3000K / 3500K / 4000K / 5000K
• Commercial-grade retrofit downlight design
• Bright and uniform illumination
• High-performance LED technology
• Retrofit installation for recessed housings
• Energy-efficient and low-maintenance operation
• Suitable for residential and commercial applications
• Durable long-lasting construction
• Quick and easy installation
• Modern architectural appearance
