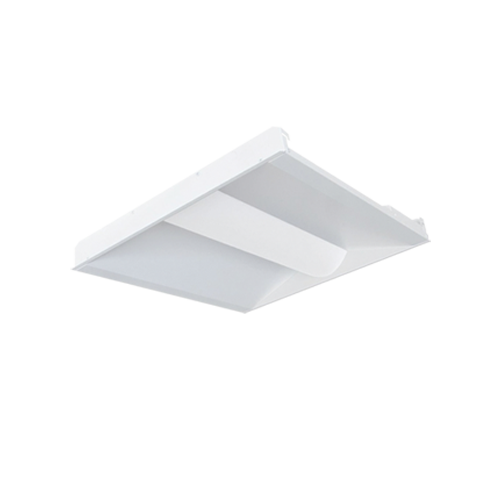

Portor 2′ x 2′ High Output Center Basket Troffer 30W/35W/40W, 3500K/4000K/5000K, 120-277V - PT-TRO-HO-22-3CP

Key Specification

• CCT: 3500K / 4000K / 5000K
• CRI: 80
• Dimmable: 0–10V Dimmable
• Beam Angle: 120º
• Voltage: 120V–277V, 50/60 Hz
• Power Factor: >0.9
• THD: ≤20%
• Working Temperature: -40°F to 122°F
• IP Rating: Suitable for Damp Locations
• Warranty: 5-Year Limited Warranty

The Portor 2′ x 2′ High Output Center Basket Troffer is a high-performance LED lighting solution designed to provide bright, uniform, and energy-efficient illumination for commercial and institutional interiors. Featuring selectable wattage options of 30W, 35W, and 40W along with adjustable color temperatures of 3500K, 4000K, and 5000K, this fixture offers flexible lighting customization for various environments and applications. Its center basket troffer design delivers smooth and glare-reduced illumination while maintaining a modern architectural appearance. Designed for universal 120-277V operation, this fixture combines dependable performance, energy savings, and long-lasting LED efficiency.

Ideal Applications

• Commercial office buildings
• Schools and educational facilities
• Hospitals and healthcare environments
• Retail stores and shopping spaces
• Conference and meeting rooms
• Government and municipal buildings
• Hallways and common areas
• General commercial indoor lighting applications

What’s Included / Features

The Portor 2′ x 2′ High Output Center Basket Troffer is engineered to provide customizable and professional-quality illumination for demanding commercial environments. Users can select between 30W, 35W, and 40W output levels to achieve the desired brightness, while the integrated selectable color temperature functionality allows adjustment between 3500K warm neutral, 4000K cool neutral, and 5000K daylight illumination. This versatility makes the fixture suitable for offices, educational spaces, healthcare facilities, and other professional applications.

Its center basket design helps deliver balanced and glare-reduced illumination for improved visual comfort and productivity. Built with advanced LED technology, this fixture offers high energy efficiency, long operational life, and reduced maintenance requirements. The universal 120-277V compatibility supports flexible installation across a wide range of commercial electrical systems, making it an ideal solution for both retrofit and new construction projects.

Features

• Selectable wattage: 30W / 35W / 40W
• Selectable color temperatures: 3500K / 4000K / 5000K
• Universal 120-277V operation
• 2′ x 2′ high output center basket troffer design
• Bright and uniform glare-reduced illumination
• High-performance LED technology
• Energy-efficient and low-maintenance operation
• Suitable for commercial and institutional applications
• Modern architectural appearance
• Long-lasting and reliable performance
• Quick and easy installation
• Ideal for offices, schools, and healthcare facilities
