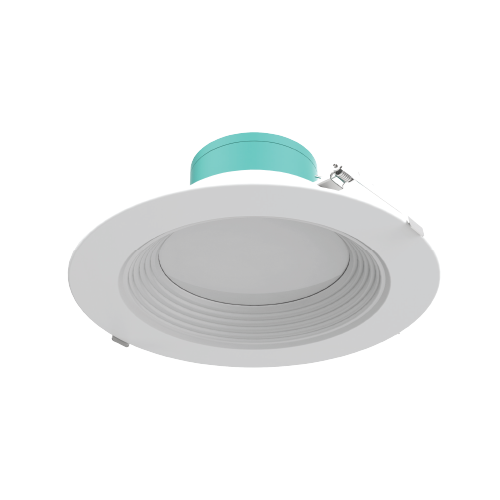

Portor 10″ Retrofit Recessed Commercial Grade Downlight 22W/30W/38W, 27K/30K/35K/40K/50K, 100-277V - PT-CDL-10I-38-5C3P-3

Key Specification

• CCT: 2700K / 3000K / 3500K / 4000K / 5000K
• CRI: 96
• Dimming: 0–10V Dimming, 5–100% Smooth Dimming
• Voltage: 100V–277V
• Power Frequency: 50/60 Hz
• Current: 0.9 – 0.33A
• Power Factor: >0.9
• THD: ≤20%
• IP Rating: IP65 Wet Location
• Warranty: 5-Year Limited Warranty (Standard)

The Portor 10″ Retrofit Recessed Commercial Grade Downlight is a high-output and energy-efficient LED lighting solution designed for large-scale residential and commercial indoor applications. Featuring selectable wattage options of 22W, 30W, and 38W along with adjustable 5CCT technology from warm 2700K to bright daylight 5000K, this fixture delivers exceptional lighting flexibility and performance. Its commercial-grade construction ensures reliable long-term durability, while the retrofit design allows seamless installation into existing recessed housings. Designed for universal 100-277V operation, this downlight provides bright and uniform illumination with modern energy-saving efficiency.

Ideal Applications

• Commercial office buildings
• Retail stores and shopping centers
• Hospitality and hotel interiors
• Large residential spaces and kitchens
• Hallways and common areas
• Multifamily housing projects
• Renovation and retrofit applications
• General indoor recessed lighting installations

What’s Included / Features

The Portor 10-inch commercial grade retrofit downlight is engineered to provide professional-quality illumination with customizable brightness and color temperature options. Users can select between 22W, 30W, and 38W output levels to achieve the desired illumination intensity, while the integrated 5CCT selectable technology allows easy adjustment between warm, neutral, and daylight color temperatures. This versatility makes the fixture ideal for ambient, task, and high-output general lighting applications.

Built with durable commercial-grade construction, this fixture is designed for dependable operation in demanding indoor environments. Its retrofit configuration simplifies installation into compatible recessed housings, making it an efficient upgrade solution for existing lighting systems. Advanced LED technology ensures bright and even illumination with reduced energy consumption, long operational life, and minimal maintenance requirements.

Features

• Selectable wattage: 22W / 30W / 38W
• Universal 100-277V operation
• 5CCT selectable: 2700K / 3000K / 3500K / 4000K / 5000K
• Commercial-grade retrofit downlight design
• Bright and uniform illumination
• High-performance LED technology
• Retrofit installation for recessed housings
• Energy-efficient and low-maintenance operation
• Suitable for residential and commercial applications
• Durable long-lasting construction
• Quick and easy installation
• Modern architectural appearance

Need help matching a driver? Text us a picture and we’ll match it fast.
