Portor Lighting

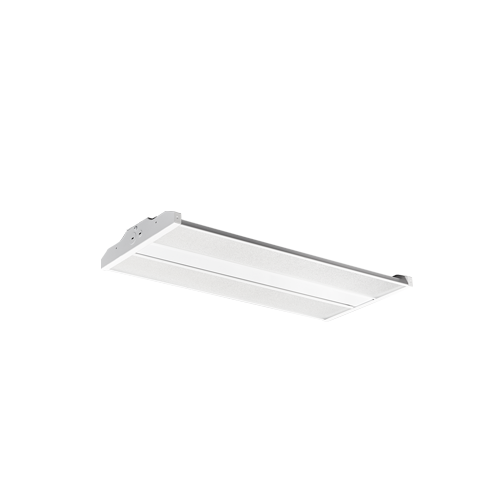

Portor 1.4′ Twin Lens Linear High Bay 78W/92W/115W, 4000K/5000K, 120-277V - PT-LHTL-115-2C3P

Portor 1.4′ Twin Lens Linear High Bay 78W/92W/115W, 4000K/5000K, 120-277V - PT-LHTL-115-2C3P

PT-LHTL-115-2C3P

$96.41 USD
$96.41 USD
Sale Sold out

Key Specification

  • CCT: 4000K / 5000K
  • CRI: 80+
  • Dimming: 0-10V dimmable
  • Input Voltage: 120–277V
  • Power Frequency: 50/60 Hz
  • Power Factor: >0.9
  • Driver Efficiency: >85%
  • THD: ≤10%
  • Current: 1.54–3.33A
  • Optics: 85° x 85° PC matte lens
  • Construction: Galvanized cold-rolled steel housing with white powder-coated finish
  • Mounting: V-Hooks included
  • Location Rating: Suitable for damp locations
  • Operating Temperature: -4°F to 122°F
  • Lifespan: L70 rated for 100,000 hours
  • Certifications: UL Listed, DLC Premium
  • Controls: Occupancy sensors with daylight harvesting, TEELIO Bluetooth controls, and Lutron AWN compatible
  • Warranty: 5-Year Limited Warranty

The Portor PT-LHTL-115-2C3P Twin Lens Linear High Bay is a compact, high-performance LED fixture designed for commercial and industrial high-ceiling applications. Available in 78W, 92W, and 115W configurations with selectable 4000K and 5000K colour temperatures, it delivers bright, energy-efficient illumination with excellent light distribution. Operating on a universal 120-277V input range, this 1.4-foot linear high bay provides reliable performance, reduced maintenance, and long service life in demanding environments.

Ideal Applications

  • Warehouses and distribution centres
  • Manufacturing facilities
  • Industrial workshops
  • Storage and logistics areas
  • Retail stockrooms
  • Gymnasiums and recreational facilities
  • Commercial workspaces
  • Assembly and production lines
  • Indoor loading areas
  • High-ceiling utility spaces

What’s Included / Features

The PT-LHTL-115-2C3P combines compact design, powerful illumination, and energy-saving LED technology for demanding indoor environments. Its selectable wattage and colour temperature options allow contractors and facility managers to optimise lighting levels and visual comfort for a wide range of applications.

Designed with a twin lens optical system, this linear high bay provides enhanced light distribution and improved fixture efficiency. The durable construction and universal 120-277V operation make it an ideal solution for both retrofit projects and new installations where reliable, high-output lighting is required.

Key Features

  • Selectable 78W / 92W / 115W power options
  • Selectable 4000K / 5000K colour temperatures
  • 120-277V universal input voltage
  • 1.4-foot compact linear high bay design
  • Twin lens optical system for enhanced light distribution
  • High-efficiency LED technology for reduced energy costs
  • Bright, uniform illumination with reduced glare
  • Durable construction for commercial and industrial environments
  • Long operational lifespan with minimal maintenance
  • Suitable for warehouses, manufacturing facilities, and other high-ceiling applications
