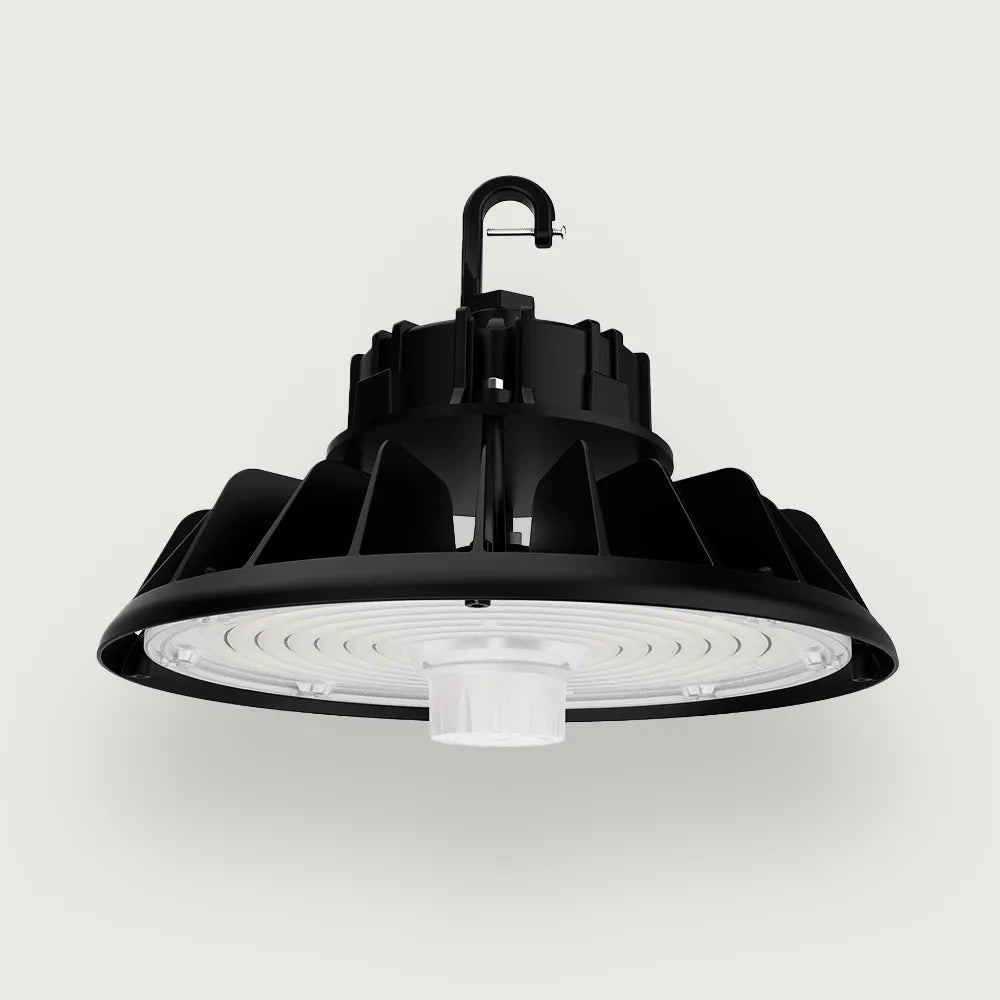

The NuGem Select LED Round High Bay 240W Max delivers powerful, high-output lighting with an efficient 150 LM/W performance for large industrial and commercial facilities. Designed with selectable 3-wattage settings and 277–480V operation, it offers flexible installation in high-voltage environments. Wet-rated, dimmable, and smart-enabled in a durable black finish, it ensures reliable performance in demanding conditions.
Applications
Premium indoor luminaire for hanging or pendant mounting in high ceiling spaces above 25 feet. Suitable for gymnasiums, warehouses, manufacturing, packaging, storage, aisles, and covered decks.
Construction
Manufactured for durability using solid heavy duty die cast aluminum housing with anti-UV polyester coating to resist water, corrosion, discoloration, and scratching. Wet Location rated.
Electrical
Input voltages 120-277V models with 0-10V Continuous Dimming. Tunable 3-CCT (3500K, 4000K, 5000K) and Tunable 3-Wattages. Operating temperatures -40°F to 113°F (-40°C to 45°C).
Mounting
Steel Hook Mount for hanging and integrated 6-FT cord standard. Optional adjustable Yoke Mount for surface mounting available.
Optics
Anti-UV Clear Polycarbonate Ridged Lens with 90 degree beam angle standard. 90 degree Aluminum and Prismatic Polycarbonate Reflectors available. Glare Shield Polycarbonate Drop Lens available.
Controls
Installed fixture mounted PIR or Microwave Sensor with Daylight Priority. Remote Control or Bluetooth App Control options available. Installed Step-Down Autotransformer for 480V to 277V applications available.
Emergency
Installed 90 Minute Emergency Backup Battery Driver options available.
Warranty
5 year exclusive limited warranty.
