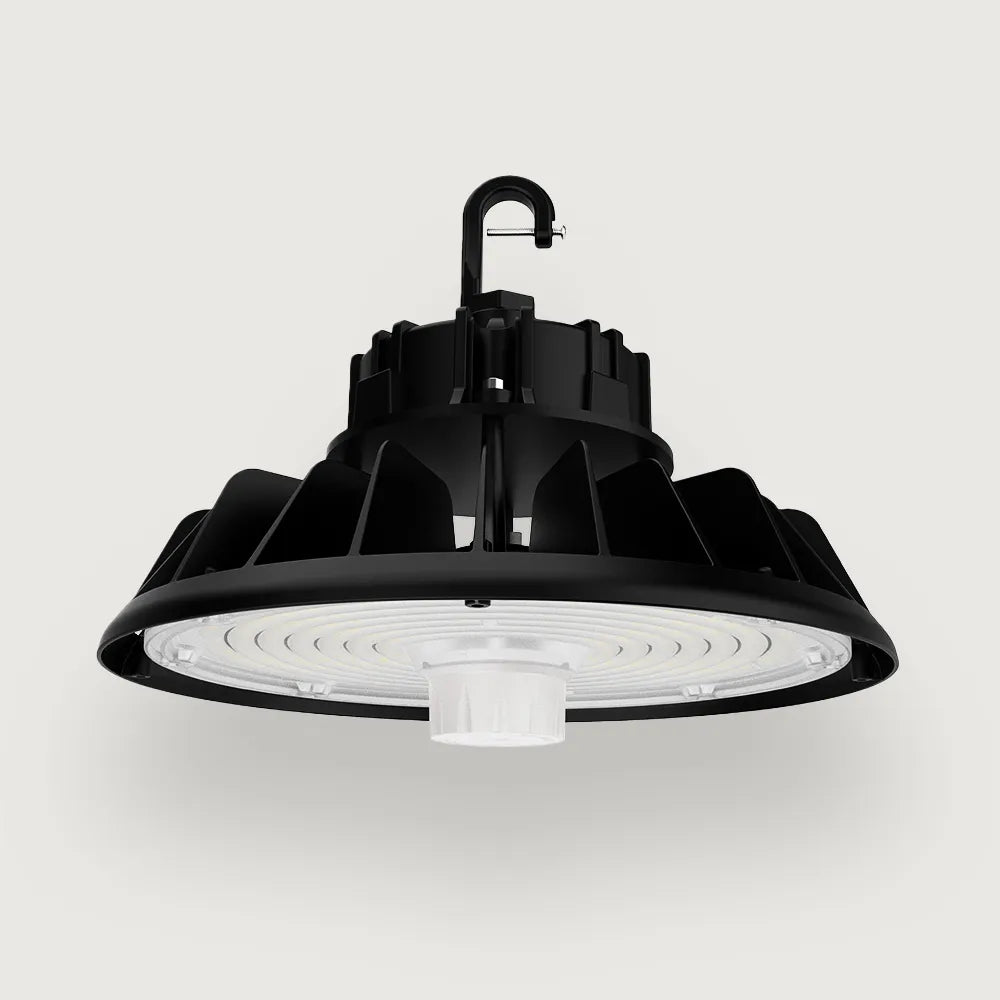

The NuGem Select LED Round High Bay 150W Max delivers high-efficiency performance at 150 LM/W, providing powerful illumination for industrial and commercial spaces. Featuring selectable 3-wattage settings and wet-rated construction, it’s built for durability in demanding environments. Dimmable and smart-enabled in a sleek black finish, it offers flexible, energy-saving lighting control.
Applications
Premium indoor luminaire for hanging or pendant mounting in high ceiling spaces above 25 feet. Suitable for gymnasiums, warehouses, manufacturing, packaging, storage, aisles, and covered decks.
Construction
Manufactured for durability using solid heavy duty die cast aluminum housing with anti-UV polyester coating to resist water, corrosion, discoloration, and scratching. Wet Location rated.
Electrical
Input voltages 120-277V models with 0-10V Continuous Dimming. Tunable 3-CCT (3500K, 4000K, 5000K) and Tunable 3-Wattages. Operating temperatures -40°F to 113°F (-40°C to 45°C).
Mounting
Steel Hook Mount for hanging and integrated 6-FT cord standard. Optional adjustable Yoke Mount for surface mounting available.
Optics
Anti-UV Clear Polycarbonate Ridged Lens with 90 degree beam angle standard. 90 degree Aluminum and Prismatic Polycarbonate Reflectors available. Glare Shield Polycarbonate Drop Lens available.
Controls
Installed fixture mounted PIR or Microwave Sensor with Daylight Priority. Remote Control or Bluetooth App Control options available. Installed Step-Down Autotransformer for 480V to 277V applications available.
Emergency
Installed 90 Minute Emergency Backup Battery Driver options available.
Warranty
5 year exclusive limited warranty.
