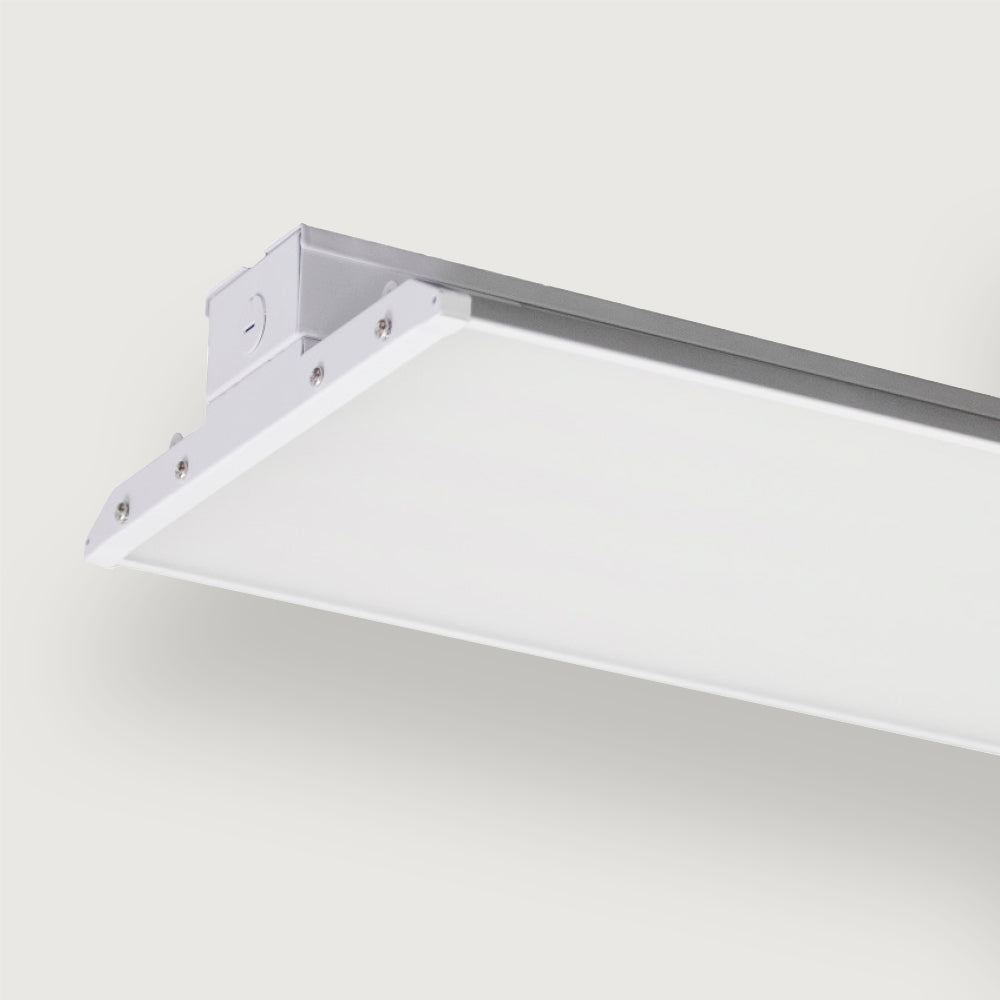

NuGem Select LED Linear High Bay 220W Max, 3-Wattages, 120-277V, Damp Rated, 150LM/W Dimmable + Smart White

The NuGem Select LED Linear High Bay 220W Max delivers bright, energy-efficient illumination at 150 LM/W, ideal for commercial and industrial spaces. With selectable 3-wattage settings and damp-rated construction, it provides flexible, reliable lighting for any environment. Dimmable and smart-enabled in a sleek white finish, it operates on 120–277V for versatile, high-performance installation.

Applications

Premium indoor luminaire for hanging or pendant mounting in high ceiling spaces above 25 feet. Suitable for gymnasiums, warehouses, manufacturing, packaging, storage, aisles, and covered decks.

Construction

Manufactured for durability using aluminum sheet housing with semi-gloss coating to resist corrosion, discoloration, and scratching. Ventilated driver bay for additional heat dissipation. Damp Location rated.

Electrical

Input voltages 120-277V models with 0-10V Continuous Dimming. Tunable 3-CCT (3500K, 4000K, 5000K) and Tunable 3-Wattages. Operating temperatures -4°F to 104°F (-20°C to 40°C).

Mounting

Aluminum V-Hooks and Chains for hanging standard. Optional Pendant Mount Bracket or pair of 10-FT Aircraft Cables available.

Optics

Anti-UV Frosted Micro-Filter Polycarbonate Lens standard.

Controls

Fixture mounted PIR or Microwave Smart Sensor with Daylight Priority. Remote Control available. Installed Step-Down Autotransformer for 480V to 277V applications available.

Emergency

Installed 90 Minute Emergency Backup Battery Driver options available.

Warranty

5 year exclusive limited warranty.
