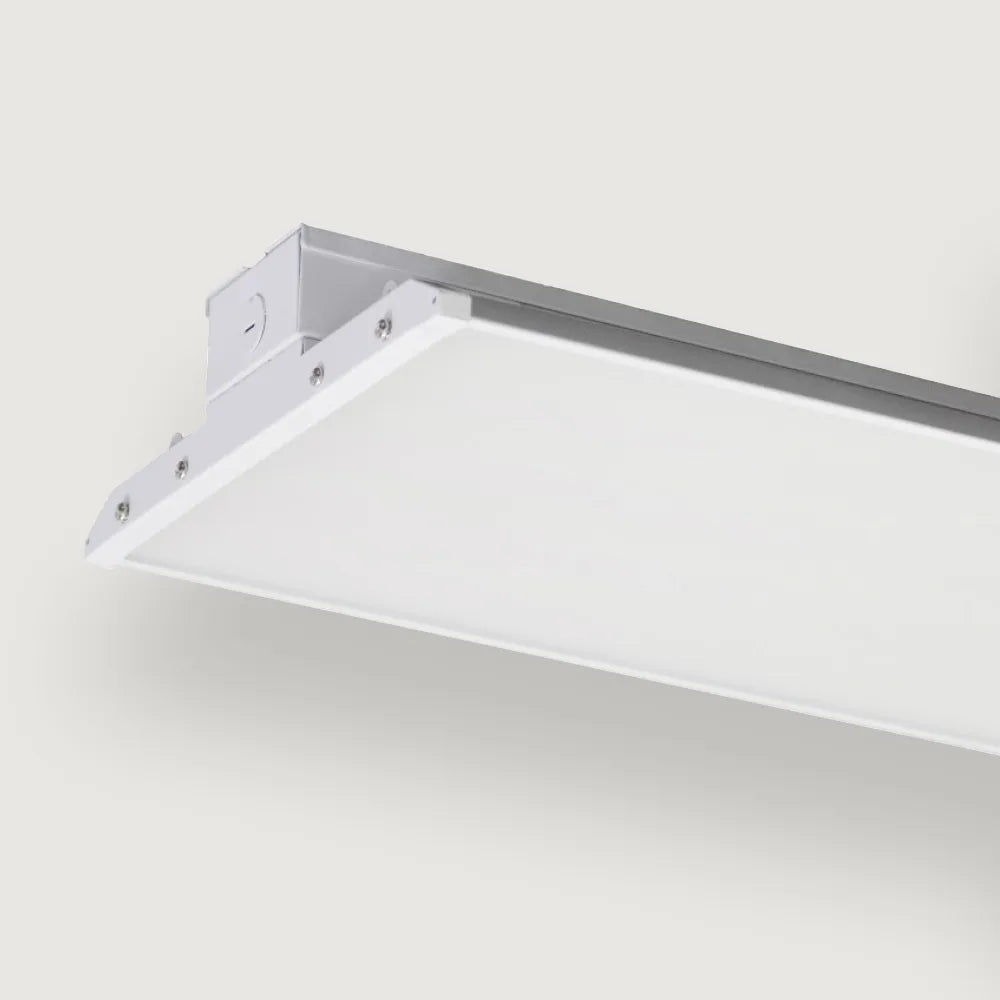

The NuGem Select LED Linear High Bay 160W Max delivers powerful, energy-efficient lighting at 150 LM/W, perfect for industrial and commercial spaces. Featuring selectable 3-wattage settings and 277–480V operation, it provides flexible installation for high-voltage environments. Damp-rated, dimmable, and smart-enabled in a sleek white finish, it ensures reliable, high-performance illumination.
Applications
Premium indoor luminaire for hanging or pendant mounting in high ceiling spaces above 25 feet. Suitable for gymnasiums, warehouses, manufacturing, packaging, storage, aisles, and covered decks.
Construction
Manufactured for durability using aluminum sheet housing with semi-gloss coating to resist corrosion, discoloration, and scratching. Ventilated driver bay for additional heat dissipation. Damp Location rated.
Electrical
Input voltages 120-277V models with 0-10V Continuous Dimming. Tunable 3-CCT (3500K, 4000K, 5000K) and Tunable 3-Wattages. Operating temperatures -4°F to 104°F (-20°C to 40°C).
Mounting
Aluminum V-Hooks and Chains for hanging standard. Optional Pendant Mount Bracket or pair of 10-FT Aircraft Cables available.
Optics
Anti-UV Frosted Micro-Filter Polycarbonate Lens standard.
Controls
Fixture mounted PIR or Microwave Smart Sensor with Daylight Priority. Remote Control available. Installed Step-Down Autotransformer for 480V to 277V applications available.
Emergency
Installed 90 Minute Emergency Backup Battery Driver options available.
Warranty
5 year exclusive limited warranty.
