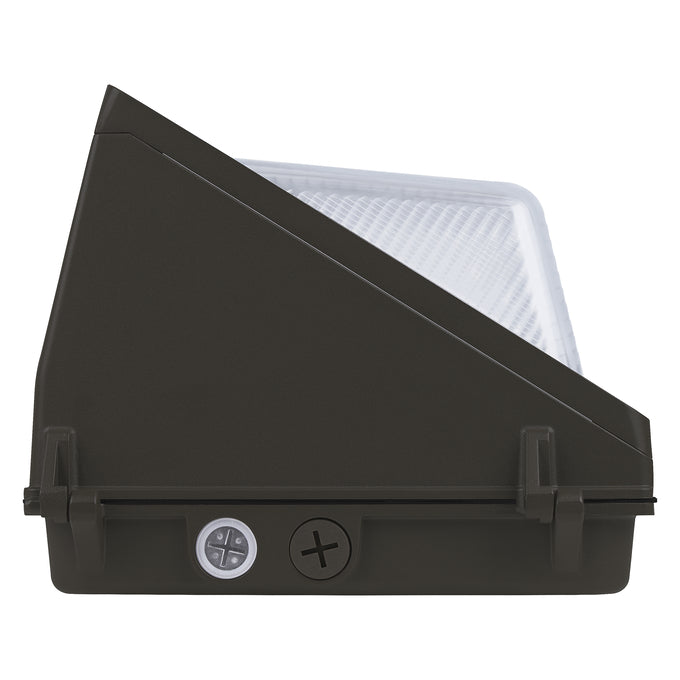

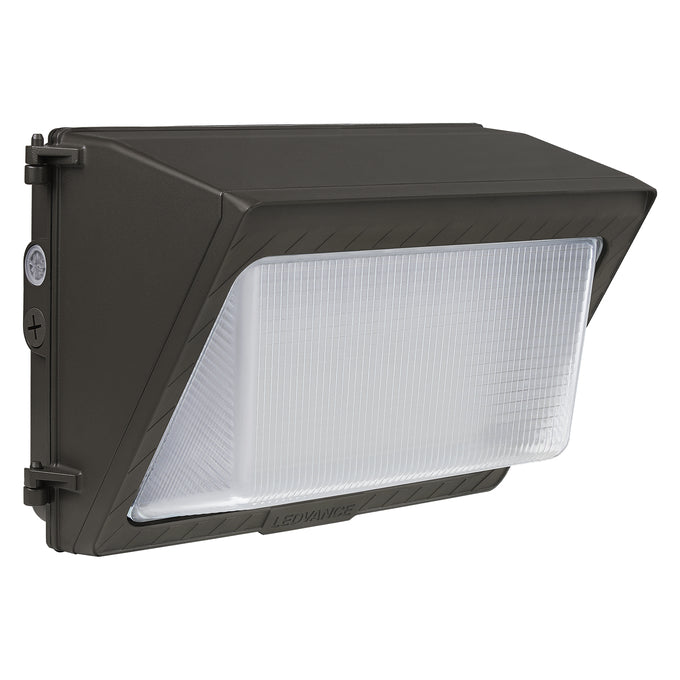

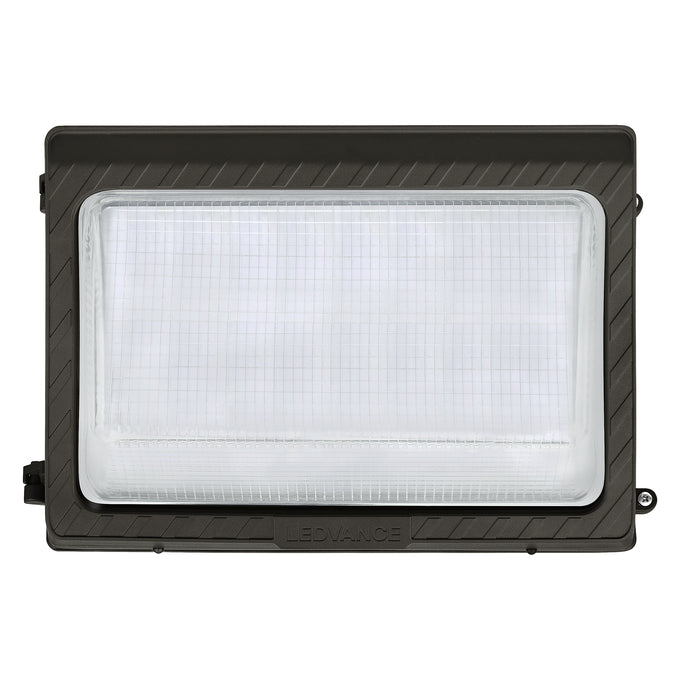

LED Wall Pack – 80W, Selectable CCT, 120-277V – WALPAKNPS080UNHD8SC2ADJBZP

Key Specification

• Wattage: 50W / 65W / 80W (Selectable)
• Voltage: 120–347V
• Power Factor: ≥0.90
• Total Harmonic Distortion: <20%
• Lumens Output: 7500 / 9750 / 12000 lm
• Efficacy: 150 lm/W
• Color Temperature (CCT): 3000K / 4000K / 5000K (Selectable)
• CRI: 80
• Luminaire Type: Wall Pack (Non-Cut Off)
• Dimming: Yes (0–10V)
• Mounting: Surface
• Application: Outdoor
• Material: Aluminum Housing
• Finish Color: Bronze
• Dimensions: 14" L × 10" W × 7" H
• Weight: 8.82 lb
• Operating Temperature Range: -40°C to +50°C
• Lifespan: 100,000 hours
• Certifications: RoHS, CSA, FCC, cULus
• Warranty: 5 Years

The LED Wall Pack – 80W, Selectable CCT, 120-277V delivers powerful and energy-efficient outdoor lighting for security and area illumination. Its durable design provides bright, uniform light for building exteriors and large surrounding spaces.
With selectable CCT, it allows flexible adjustment of color temperature to suit different environments and lighting requirements. The wide voltage range ensures stable and reliable performance.
This wall pack is an ideal replacement for traditional outdoor fixtures, offering high output, long life, and reduced maintenance.

Ideal Applications

• Building exteriors and facades
• Parking lots and large walkways
• Perimeter and security lighting
• Warehouses and industrial buildings
• Commercial properties and offices
• Loading docks and entryways

Features & What’s Included

This LED wall pack is designed to deliver high-performance outdoor illumination with excellent energy efficiency. With an 80W power rating, it provides strong light output for larger areas while reducing energy consumption compared to conventional lighting systems. Its selectable CCT feature allows users to choose between multiple color temperatures, making it adaptable to various outdoor environments and lighting needs. The 120-277V wide voltage compatibility ensures flexible installation across commercial and industrial applications.

Built with a rugged and weather-resistant design, this wall pack is engineered to perform reliably in harsh outdoor conditions. It offers uniform, glare-reduced illumination that enhances visibility and safety around buildings. With its long lifespan and minimal maintenance requirements, it helps reduce operational costs while providing consistent and dependable lighting over time.

Key Feature

• Power: 80W high-output performance
• Voltage: 120-277V wide compatibility
• Selectable CCT for flexible lighting options
• Durable, weather-resistant construction
• Uniform and glare-reduced illumination
• Flicker-free and stable lighting
• Long lifespan for reduced maintenance
• Easy installation and retrofit-friendly
• Suitable for commercial and industrial use
• Ideal for security and perimeter lighting

Download Spec Sheet
