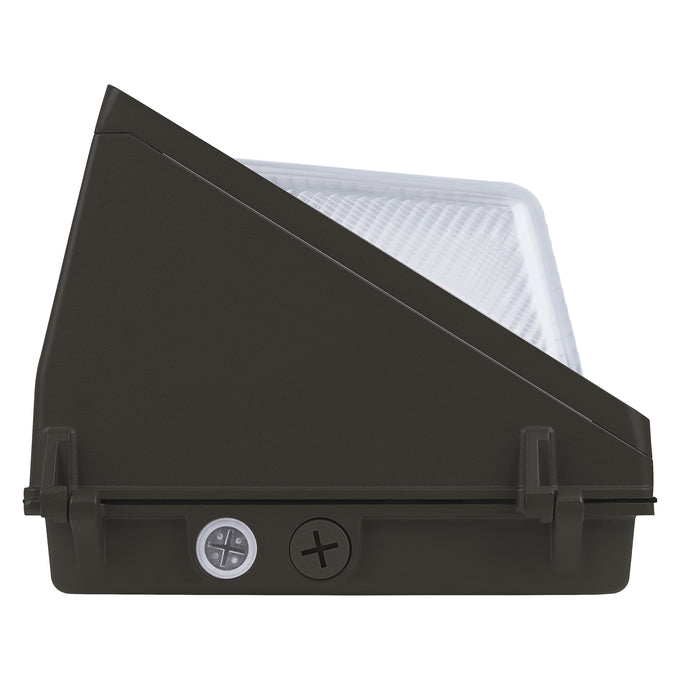

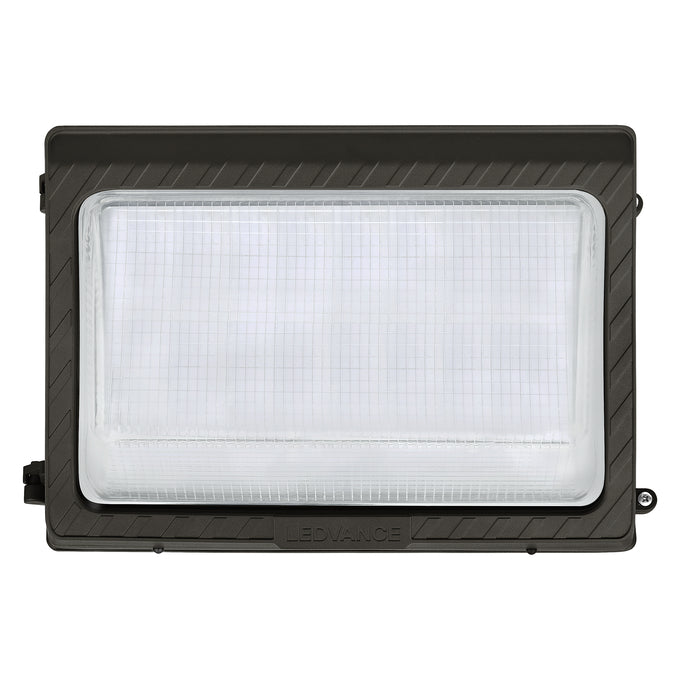

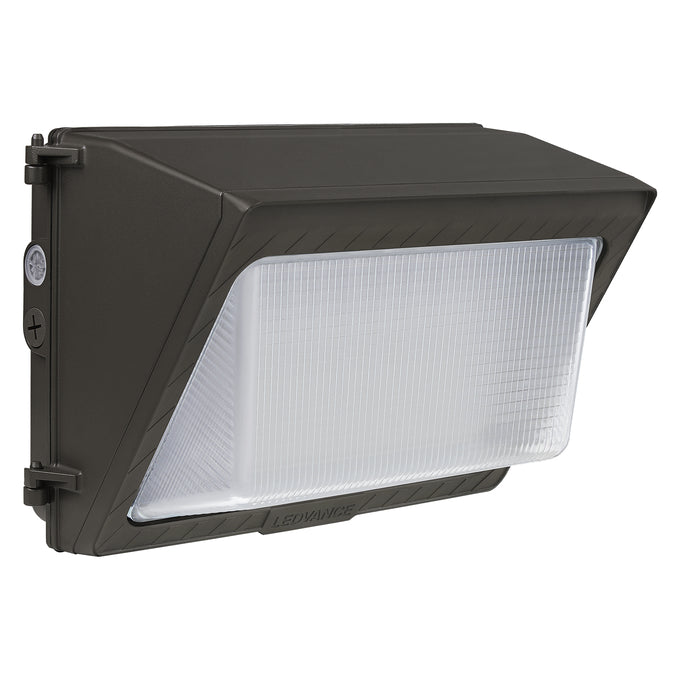

LED Wall Pack – 60W, Selectable CCT, 120-277V – WALPAKNPS060UNHD8SC2ADJBZP

Key Specification

• Wattage: 40W / 50W / 60W (Selectable)
• Voltage: 120–347V
• Power Factor: ≥0.90
• Total Harmonic Distortion: <20%
• Lumens Output: 6000 / 7500 / 9000 lm
• Efficacy: 150 lm/W
• Color Temperature (CCT): 3000K / 4000K / 5000K (Selectable)
• CRI: 80
• Luminaire Type: Wall Pack (Non-Cut Off)
• Dimming: Yes (0–10V)
• Mounting: Surface
• Application: Outdoor
• Material: Aluminum Housing
• Finish Color: Bronze
• Dimensions: 14" L × 10" W × 7" H
• Weight: 6.61 lb
• Operating Temperature Range: -40°C to +50°C
• Lifespan: 100,000 hours
• Certifications: RoHS, CSA, FCC, cULus
• Warranty: 5 Years

The LED Wall Pack – 60W, Selectable CCT, 120-277V provides high-output, energy-efficient outdoor lighting for security and general area illumination. Its rugged design delivers bright, uniform light for building exteriors and larger spaces.
With selectable CCT, it allows flexible adjustment of color temperature to suit different environments and applications. The wide voltage range ensures reliable and consistent performance.
This wall pack is an ideal upgrade from traditional outdoor fixtures, offering enhanced brightness, durability, and reduced maintenance.

Ideal Applications

• Building exteriors and facades
• Parking lots and walkways
• Perimeter and security lighting
• Warehouses and industrial facilities
• Commercial properties and offices
• Loading docks and entry points

Features & What’s Included

This LED wall pack is engineered to deliver powerful outdoor illumination with excellent energy efficiency. With a 60W power rating, it provides higher light output for larger areas while reducing energy consumption compared to conventional lighting systems. Its selectable CCT feature allows users to choose from multiple color temperatures, making it adaptable to various outdoor environments and lighting needs. The 120-277V wide voltage compatibility ensures flexible installation across commercial and industrial applications.

Designed for durability, this wall pack is built to withstand harsh outdoor conditions, ensuring long-term reliability and performance. It offers uniform, glare-reduced illumination that improves visibility and safety around buildings. With its long lifespan and minimal maintenance requirements, it helps reduce operational costs while delivering consistent and dependable lighting over time.

Key Feature

• Power: 60W high-output performance
• Voltage: 120-277V wide compatibility
• Selectable CCT for flexible lighting options
• Rugged, weather-resistant construction
• Uniform and glare-reduced illumination
• Flicker-free and stable lighting
• Long lifespan for reduced maintenance
• Easy installation and retrofit-friendly
• Suitable for commercial and industrial use
• Ideal for security and perimeter lighting

Download Spec Sheet
