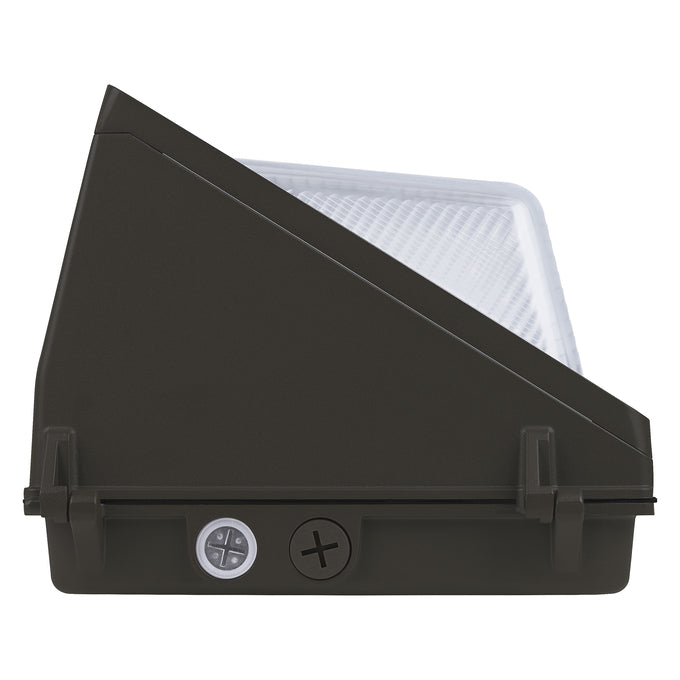

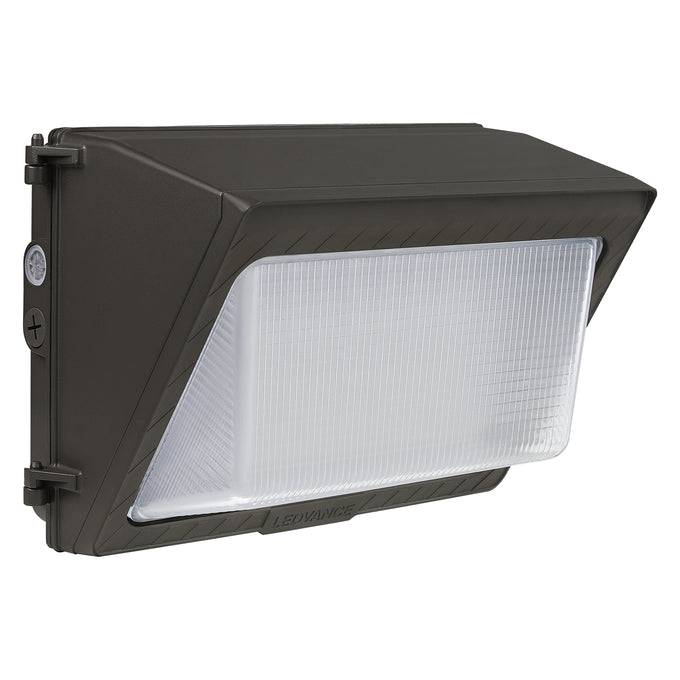

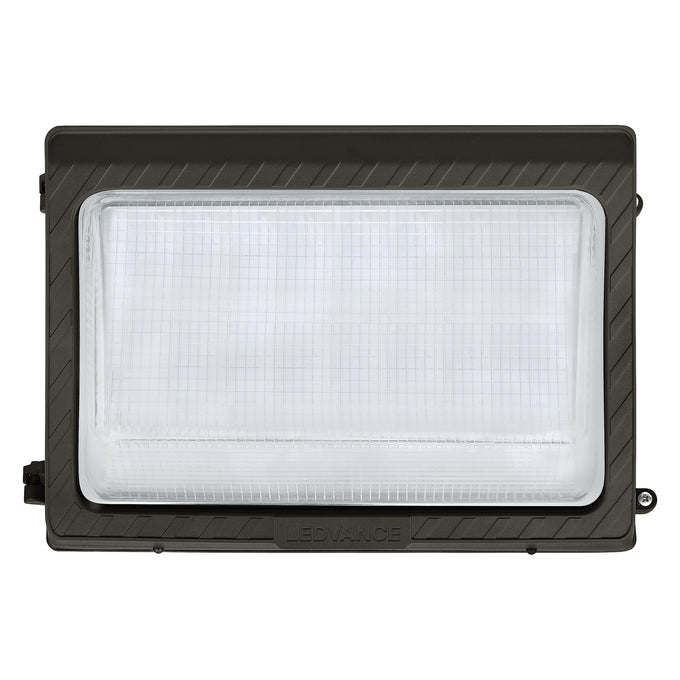

LED Wall Pack – 120W, Selectable CCT, 120-277V – WALPAKNPS120UNHD8SC2ADJBZP

Key Specification

• Wattage: 80W / 100W / 120W (Selectable)
• Voltage: 120–347V
• Power Factor: ≥0.90
• Total Harmonic Distortion: <20%
• Lumens Output: 12000 / 15000 / 18000 lm
• Efficacy: 150 lm/W
• Color Temperature (CCT): 3000K / 4000K / 5000K (Selectable)
• CRI: 80
• Luminaire Type: Wall Pack (Non-Cut Off)
• Dimming: Yes (0–10V)
• Mounting: Surface
• Application: Outdoor
• Material: Aluminum Housing
• Finish Color: Bronze
• Dimensions: 14" L × 10" W × 7" H
• Weight: 8.82 lb
• Operating Temperature Range: -40°C to +50°C
• Lifespan: 100,000 hours
• Certifications: RoHS, CSA, FCC, cULus
• Warranty: 5 Years

The LED Wall Pack – 120W, Selectable CCT, 120-277V delivers extremely high-output and energy-efficient outdoor lighting for large-scale security and area illumination. Its rugged design provides powerful, uniform light for building exteriors and expansive outdoor spaces.
With selectable CCT, it allows flexible adjustment of color temperature to suit different environments and lighting needs. The wide voltage range ensures reliable and consistent performance.
This wall pack is an ideal upgrade for traditional high-wattage fixtures, offering superior brightness, durability, and long-lasting efficiency.

Ideal Applications

• Building exteriors and large facades
• Parking lots and wide outdoor areas
• Perimeter and high-security lighting
• Warehouses and industrial complexes
• Commercial properties and campuses
• Loading docks and large entry points

Features & What’s Included

This LED wall pack is engineered to deliver maximum outdoor illumination with excellent energy efficiency. With a 120W power rating, it provides very high light output suitable for large areas while reducing energy consumption compared to conventional lighting systems. Its selectable CCT feature allows users to choose from multiple color temperatures, making it adaptable to various outdoor environments and lighting requirements. The 120-277V wide voltage compatibility ensures flexible installation across commercial and industrial applications.

Built with a durable and weather-resistant construction, this wall pack is designed to withstand harsh outdoor conditions while maintaining reliable performance. It offers uniform, glare-reduced illumination that enhances visibility, safety, and security around buildings. With its long lifespan and minimal maintenance requirements, it helps significantly reduce operational costs while delivering consistent and dependable lighting over time.

Key Feature

• Power: 120W ultra-high output performance
• Voltage: 120-277V wide compatibility
• Selectable CCT for flexible lighting options
• Rugged, weather-resistant construction
• Uniform and glare-reduced illumination
• Flicker-free and stable lighting
• Long lifespan for reduced maintenance
• Easy installation and retrofit-friendly
• Suitable for large commercial and industrial areas
• Ideal for high-security and perimeter lighting
