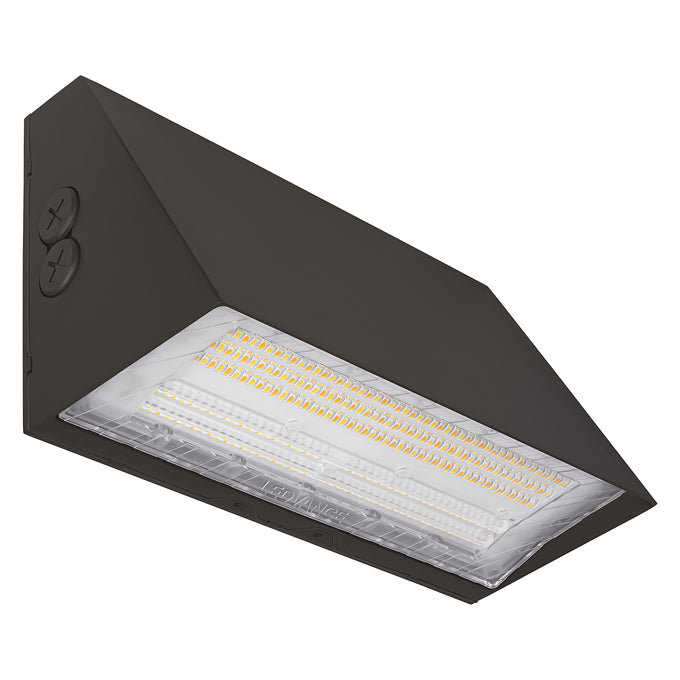

LED Wall Pack – 100W, Selectable CCT, 120-277V – WALPAKCPS100UNHD8SC2ADJBZP

Key Specification

• Wattage: 60W / 80W / 100W (Selectable)
• Voltage: 120–347V
• Power Factor: ≥0.90
• Total Harmonic Distortion: <20%
• Lumens Output: 9000 / 12000 / 15000 lm
• Efficacy: 150 lm/W
• Color Temperature (CCT): 3000K / 4000K / 5000K (Selectable)
• CRI: 80
• Luminaire Type: Wall Pack
• Dimming: Yes (0–10V)
• Mounting: Surface
• Application: Outdoor
• Material: Aluminum Housing
• Finish Color: Bronze
• Dimensions: 13.39" L × 5.91" W × 8.27" H
• Weight: 6.17 lb
• Lifespan: 100,000 hours
• Certifications: RoHS, FCC, cULus
• Warranty: 5 Years

The LED Wall Pack – 100W, Selectable CCT, 120-277V delivers high-output and energy-efficient outdoor lighting for security and area illumination. Its durable design provides bright, uniform light for building exteriors and large surrounding spaces.
With selectable CCT, it allows flexible adjustment of color temperature to suit different environments and applications. The wide voltage range ensures reliable and consistent performance.
This wall pack is an ideal upgrade from traditional fixtures, offering superior brightness, durability, and reduced maintenance.

Ideal Applications

• Building exteriors and facades
• Parking lots and large walkways
• Perimeter and security lighting
• Warehouses and industrial facilities
• Commercial properties and offices
• Loading docks and entry points

Features & What’s Included

This LED wall pack is engineered to deliver powerful outdoor illumination with excellent energy efficiency. With a 100W power rating, it provides strong light output for larger areas while reducing energy consumption compared to conventional lighting systems. Its selectable CCT feature allows users to choose from multiple color temperatures, making it adaptable for different outdoor environments and lighting needs. The 120-277V wide voltage compatibility ensures flexible installation across commercial and industrial applications.

Built with a rugged and weather-resistant design, this wall pack is capable of withstanding harsh outdoor conditions, ensuring long-term reliability and performance. It provides uniform, glare-reduced illumination that enhances safety and visibility around buildings. With its long lifespan and minimal maintenance requirements, it helps reduce operational costs while delivering consistent and dependable lighting over time.

Key Feature

• Power: 100W high-output performance
• Voltage: 120-277V wide compatibility
• Selectable CCT for flexible lighting options
• Durable, weather-resistant construction
• Uniform and glare-reduced illumination
• Flicker-free and stable lighting
• Long lifespan for reduced maintenance
• Suitable for commercial and industrial use
• Ideal for large-area security lighting
• Energy-efficient LED technology
