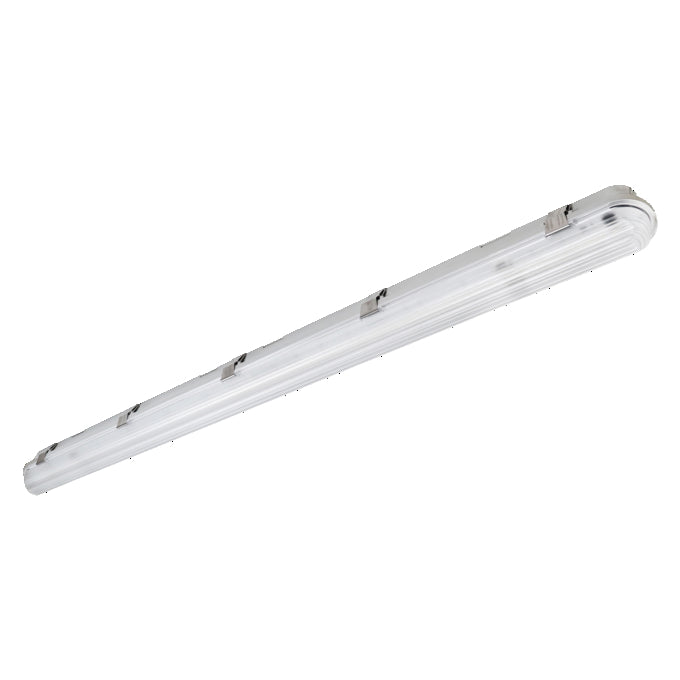

LED Vapor Tight – 8FT, 90W, Selectable CCT, 120-277V – VAPOR3AS090UNHD8SC796GR

Key Specification

• Wattage: 70W / 80W / 90W
• Voltage: 120–347 V
• Power Factor: ≥0.90
• Total Harmonic Distortion (THD): < 20%
• Lumens Output: 10080 lm / 11520 lm / 12960 lm
• Efficacy: 138 lm/W
• Color Temperature (CCT): 3500K / 4000K / 5000K
• CRI: >80
• Luminaire Type: Vapor Tight
• Dimming: Yes (0-10V)
• Mounting: Surface
• Housing Material: Polycarbonate (PC)
• Finish / Color: Gray
• Dimensions: 98.43 in (Length) × 3.74 in (Height) × 5.32 in (Width)
• Weight: 12.35 lb
• Operating Temperature Range: -40°C to +50°C
• Lifespan: 100,000 hours
• Certifications: RoHS, FCC, cULus
• Ingress Protection: IP66
• Light Source Type: SMD (Non-replaceable)

The LED Vapor Tight – 8FT, 90W, Selectable CCT, 120-277V provides high-output and energy-efficient lighting for large and demanding environments. Its robust, sealed design ensures reliable performance in wet, dusty, and harsh conditions.
With selectable CCT, it allows flexible adjustment of color temperature to suit different applications and lighting needs. The wide voltage range ensures stable and consistent operation.
This vapor tight fixture is an ideal replacement for traditional fluorescent vapor-proof lighting, offering modern efficiency and long-lasting durability.

Ideal Applications

• Parking garages and tunnels
• Warehouses and large industrial facilities
• Food processing and cold storage areas
• Car washes and washdown zones
• Stairwells and utility corridors
• Outdoor covered and damp locations

Features & What’s Included

This LED vapor tight fixture is engineered to deliver powerful and reliable illumination in harsh environments. With a 90W power rating, it provides high light output while significantly reducing energy consumption compared to traditional lighting systems. Its selectable CCT feature allows users to choose from multiple color temperatures, making it adaptable to different environments and lighting requirements. The 120-277V wide voltage compatibility ensures flexible installation across residential, commercial, and industrial applications.

Built with a durable, sealed 8FT enclosure, this vapor tight fixture is resistant to moisture, dust, and environmental contaminants, ensuring long-term performance in challenging conditions. It delivers smooth, uniform lighting that enhances visibility and safety in workspaces. With its long lifespan and minimal maintenance needs, it helps reduce operational costs while providing consistent and dependable lighting over time.

Key Feature

• Power: 90W high-output performance
• Voltage: 120-277V wide compatibility
• Length: 8FT extended design
• Selectable CCT for flexible lighting options
• Sealed vapor-tight construction
• Resistant to moisture, dust, and harsh environments
• Uniform and glare-reduced illumination
• Flicker-free and stable lighting
• Long lifespan for reduced maintenance
• Suitable for industrial and commercial use

Download Spec Sheet
