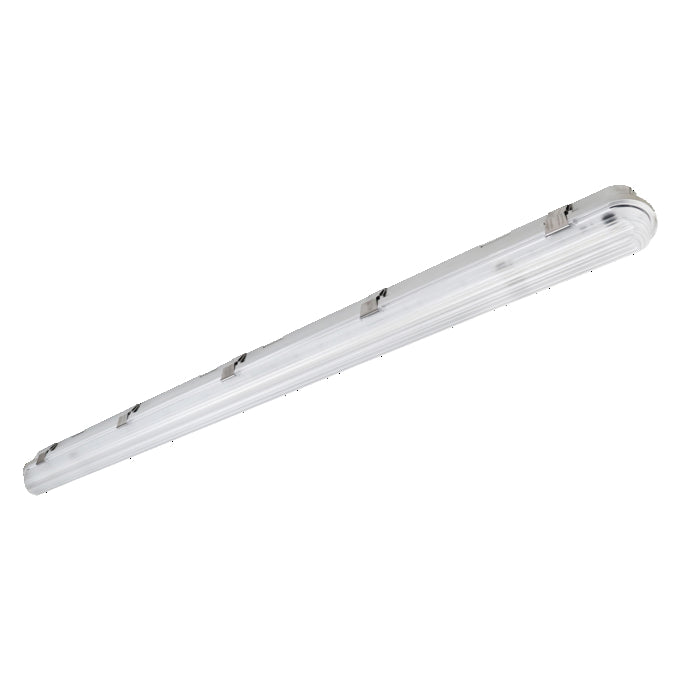

LED Vapor Tight – 4FT, 50W, Selectable CCT, 120-277V – VAPOR3AS050UNHD8SC748GR

Key Specification

• Wattage: 30W / 40W / 50W
• Voltage: 120–347 V
• Power Factor: ≥0.90
• Total Harmonic Distortion (THD): < 20%
• Lumens Output: 4320 lm / 5760 lm / 7200 lm
• Efficacy: 138 lm/W
• Color Temperature (CCT): 3500K / 4000K / 5000K
• CRI: >80
• Luminaire Type: Vapor Tight
• Dimming: Yes (0-10V)
• Mounting: Surface
• Housing Material: Polycarbonate (PC)
• Finish / Color: Gray
• Dimensions: 49.21 in (Length) × 3.35 in (Height) × 3.23 in (Width)
• Weight: 4.35 lb
• Operating Temperature Range: -40°C to +50°C
• Lifespan: 100,000 hours
• Certifications: RoHS, FCC, cULus
• Ingress Protection: IP66
• Light Source Type: SMD (Non-replaceable)

The LED Vapor Tight – 4FT, 50W, Selectable CCT, 120-277V delivers powerful and reliable lighting for demanding environments. Its rugged, sealed design ensures protection against moisture, dust, and harsh conditions.
With selectable CCT, it allows flexible adjustment of color temperature to match different applications and preferences. The wide voltage range ensures consistent and stable performance.
This vapor tight fixture is an excellent upgrade from traditional fluorescent vapor-proof lighting, offering energy efficiency and long-lasting durability.

Ideal Applications

• Parking garages and tunnels
• Warehouses and industrial facilities
• Food processing and cold storage areas
• Car washes and washdown areas
• Stairwells and utility corridors
• Outdoor covered or damp locations

Features & What’s Included

This LED vapor tight fixture is designed to deliver high-performance lighting in harsh and demanding environments. With a 50W power rating, it provides strong illumination while reducing energy consumption compared to traditional lighting systems. Its selectable CCT feature allows users to choose between multiple color temperatures, making it adaptable to various environments and lighting needs. The 120-277V wide voltage compatibility ensures flexible installation in residential, commercial, and industrial settings.

Built with a durable, sealed enclosure, this 4FT vapor tight fixture is resistant to moisture, dust, and environmental contaminants, ensuring reliable operation in challenging conditions. It delivers uniform and glare-reduced illumination, improving visibility and safety in work areas. With its long lifespan and low maintenance requirements, it helps reduce operational costs while providing consistent and dependable lighting over time.

Key Feature

• Power: 50W high-efficiency performance
• Voltage: 120-277V wide compatibility
• Length: 4FT standard design
• Selectable CCT for flexible lighting options
• Sealed vapor-tight construction
• Resistant to moisture, dust, and harsh environments
• Uniform and glare-reduced illumination
• Flicker-free and stable lighting
• Long lifespan for reduced maintenance
• Suitable for industrial and commercial use
