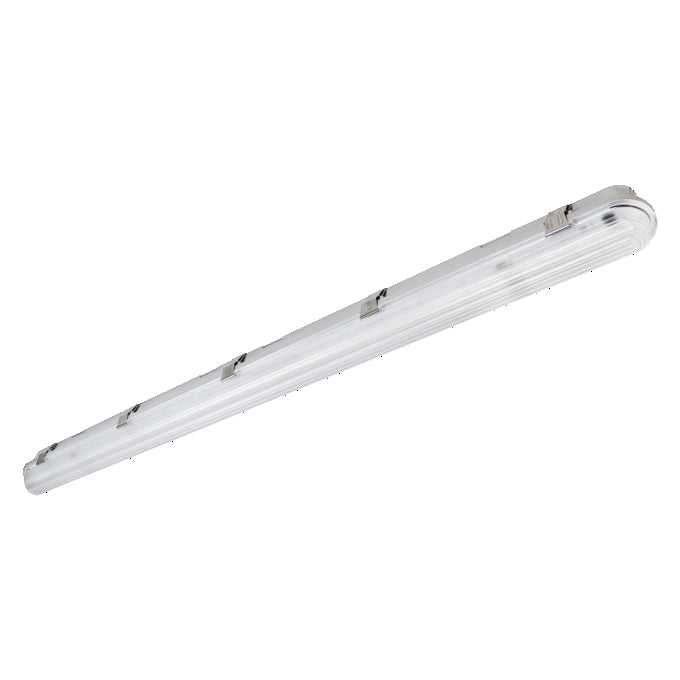

LED Vapor Tight – 2FT, 25W, Selectable CCT, 120-277V – VAPOR3AS025UNHD8SC724GR

Key Specification

• Wattage: 15W / 20W / 25W
• Voltage: 120–347 V
• Power Factor: ≥0.90
• Total Harmonic Distortion (THD): < 20%
• Lumens Output: 2100 lm / 2760 lm / 3400 lm
• Efficacy: 138 lm/W
• Color Temperature (CCT): 3500K / 4000K / 5000K
• CRI: >80
• Luminaire Type: Vapor Tight
• Dimming: Yes (0-10V)
• Mounting: Surface
• Housing Material: Polycarbonate (PC)
• Finish / Color: Gray
• Dimensions: 26.22 in (Length) × 3.35 in (Height) × 3.23 in (Width)
• Weight: 2.65 lb
• Operating Temperature Range: -40°C to +50°C
• Lifespan: 100,000 hours
• Certifications: RoHS, FCC, cULus
• Ingress Protection: IP66
• Light Source Type: SMD (Non-replaceable)

The LED Vapor Tight – 2FT, 25W, Selectable CCT, 120-277V is designed for durable and efficient lighting in demanding environments. Its rugged, sealed construction provides reliable illumination in wet, dusty, and harsh conditions.
With selectable CCT, it allows flexible adjustment of color temperature to suit different applications and lighting preferences. The wide voltage range ensures consistent and dependable performance.
This vapor tight fixture is an ideal solution for replacing traditional fluorescent vapor-proof lights with modern, energy-efficient LED technology.

Ideal Applications

• Parking garages and car washes
• Warehouses and industrial facilities
• Food processing and cold storage areas
• Stairwells and utility corridors
• Outdoor covered areas and tunnels
• Basements and maintenance areas

Features & What’s Included

This LED vapor tight fixture is engineered to deliver reliable performance in harsh and demanding environments. With a 25W power rating, it provides bright and efficient illumination while significantly reducing energy consumption compared to traditional lighting systems. Its selectable CCT feature allows users to choose between multiple color temperatures, making it adaptable to different environments and lighting needs. The 120-277V wide voltage compatibility ensures flexible installation across residential, commercial, and industrial applications.

Built with a sealed and rugged design, this 2FT vapor tight fixture protects against moisture, dust, and environmental contaminants, ensuring long-lasting performance in challenging conditions. It provides uniform, glare-reduced illumination that enhances visibility and safety. With its durable construction and long lifespan, it minimizes maintenance requirements and helps reduce overall operating costs while delivering consistent lighting performance over time.

Key Feature

• Power: 25W energy-efficient performance
• Voltage: 120-277V wide compatibility
• Length: 2FT compact design
• Selectable CCT for flexible lighting options
• Sealed, vapor-tight construction for harsh environments
• Resistant to moisture, dust, and debris
• Uniform and glare-reduced illumination
• Flicker-free and stable lighting
• Long lifespan for reduced maintenance
• Suitable for industrial and commercial use
