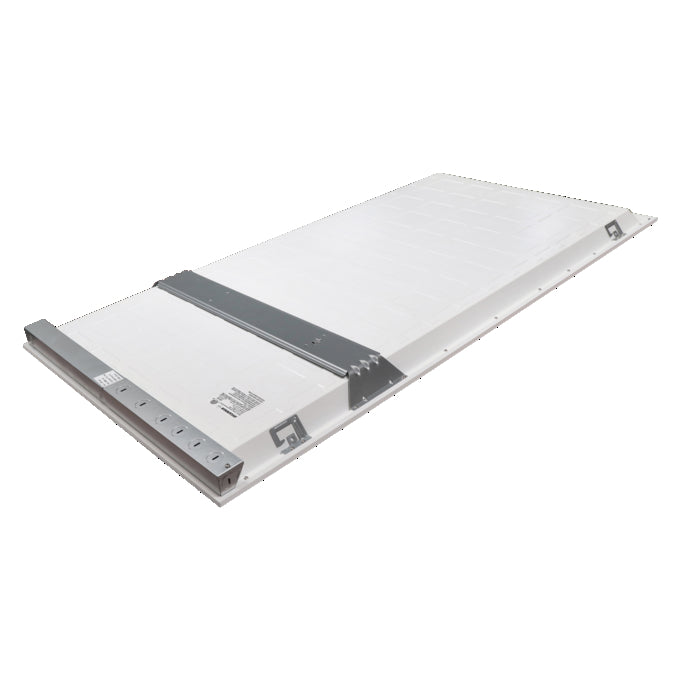

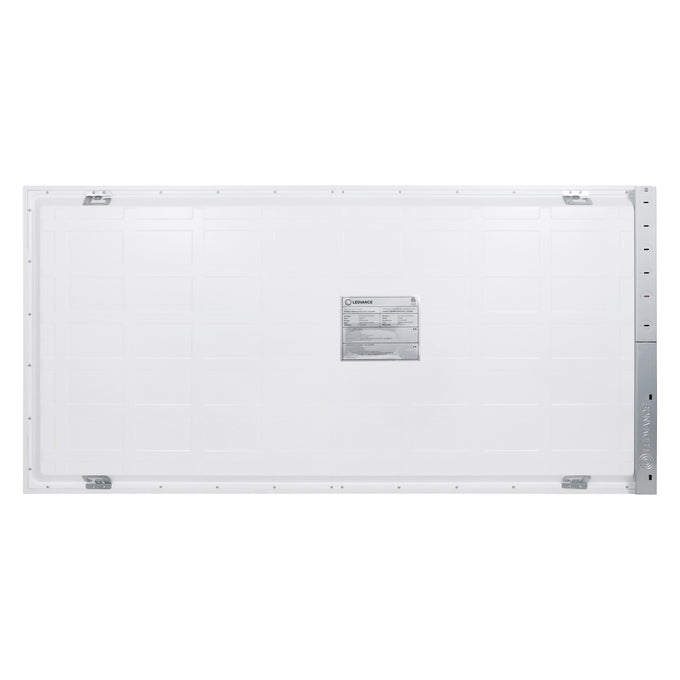

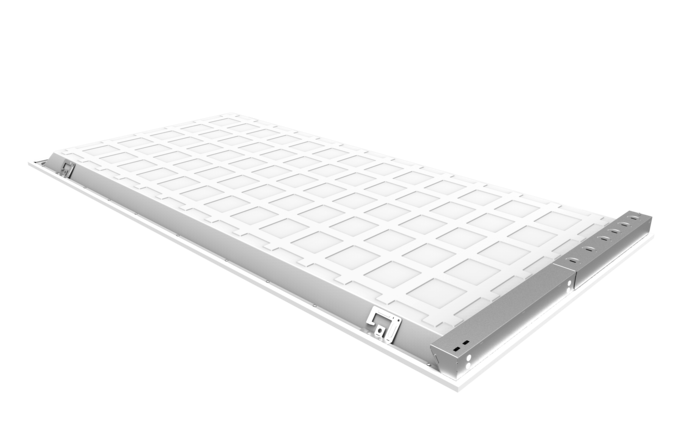

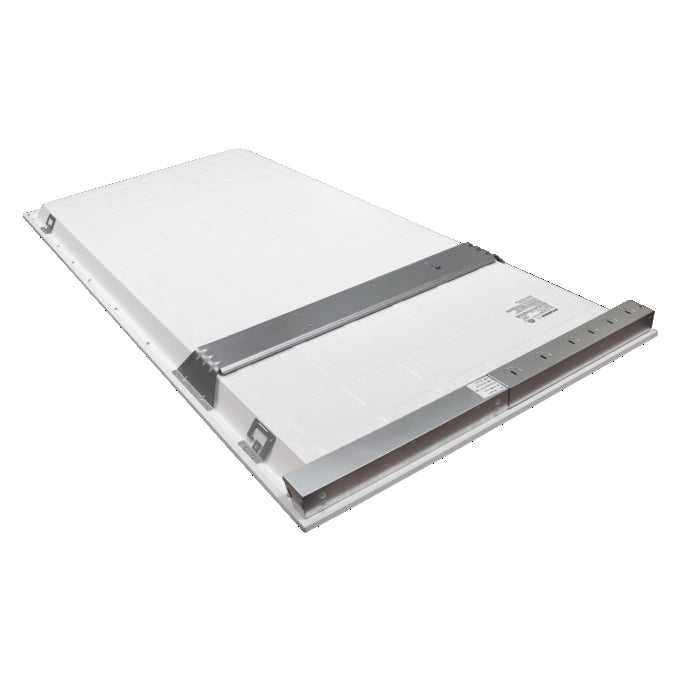

LED Panel – 2x4, 45W, Selectable CCT, 120-277V – PANELF3BS045UNVD8SC724GWH

Key Specification

• Wattage (Selectable): 30W / 35W / 45W
• Voltage Range: 120–277 V
• Power Factor: ≥0.90
• THD: < 20%
• Lumens Output: 3300 / 4000 / 5000 lm
• Efficacy: 105 lm/W
• Color Temperature (CCT): 3500K / 4000K / 5000K (Selectable)
• CRI: 80
• Luminaire Type: LED Panel (2x4)
• Dimming: Yes (0–10V)

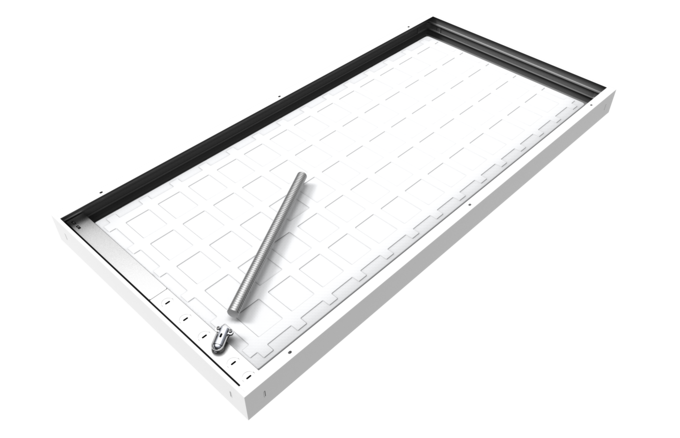

• Mounting Options: Recessed / Suspended / Surface
• Application: Indoor
• Housing Material: Steel
• Finish: White
• Dimensions: 47.8 in (L) × 23.82 in (W) × 1.6 in (H)
• Weight: 9.48 lb
• Lifespan: 50,000 hours
• Certifications: RoHS, FCC
• Light Source Type: Non-replaceable

The LED Panel – 2x4, 45W with selectable CCT delivers bright, efficient, and customizable lighting for modern indoor spaces. With adjustable color temperatures, it allows you to create the ideal lighting environment for different applications.
Designed for 120-277V operation, it ensures reliable performance across a wide range of electrical systems. Its slim, low-profile design provides clean and uniform illumination.
This LED panel is an energy-efficient replacement for traditional fluorescent fixtures, helping reduce energy and maintenance costs.

Ideal Applications

• Office buildings and corporate spaces
• Schools and educational facilities
• Hospitals and healthcare environments
• Retail stores and supermarkets
• Conference rooms and meeting areas
• Commercial and institutional buildings

Features & What’s Included

This LED panel is engineered to deliver high-quality illumination with excellent energy efficiency. Operating at 45W, it provides consistent and bright lighting suitable for larger indoor areas. The selectable CCT feature allows users to switch between different color temperatures, offering flexibility to match various environments and preferences. Its uniform light distribution minimizes glare and shadows, creating a comfortable and productive lighting experience.

Built for versatility and durability, this panel operates on a wide voltage range of 120-277V, making it compatible with a variety of electrical systems. It is designed for easy installation in standard 2x4 ceiling grids, enabling quick upgrades from traditional lighting systems. With its long lifespan and reliable performance, it reduces maintenance needs and ensures consistent lighting over time.

Key Feature

• Power: 45W energy-efficient performance
• Voltage: 120-277V wide compatibility
• Selectable CCT for adjustable lighting
• Size: 2x4 standard panel
• Uniform and glare-reduced illumination
• Slim, modern design
• Flicker-free and stable lighting
• Long lifespan for reduced maintenance
• Easy installation in ceiling grids
• Suitable for commercial and institutional use

Download Spec Sheet
