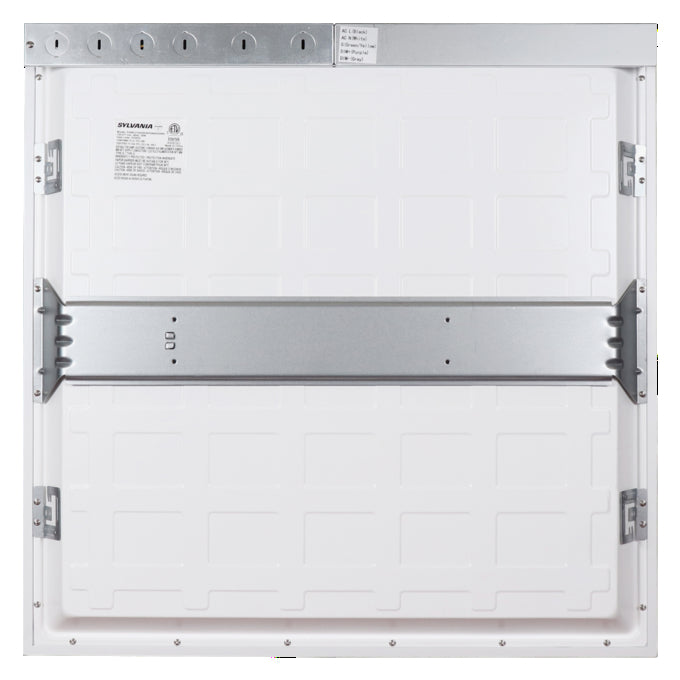

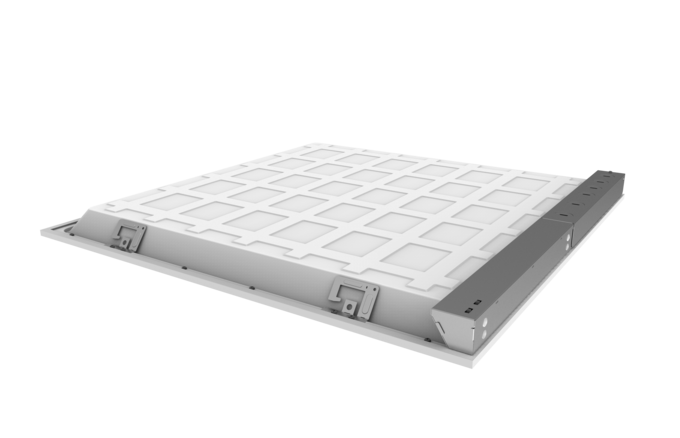

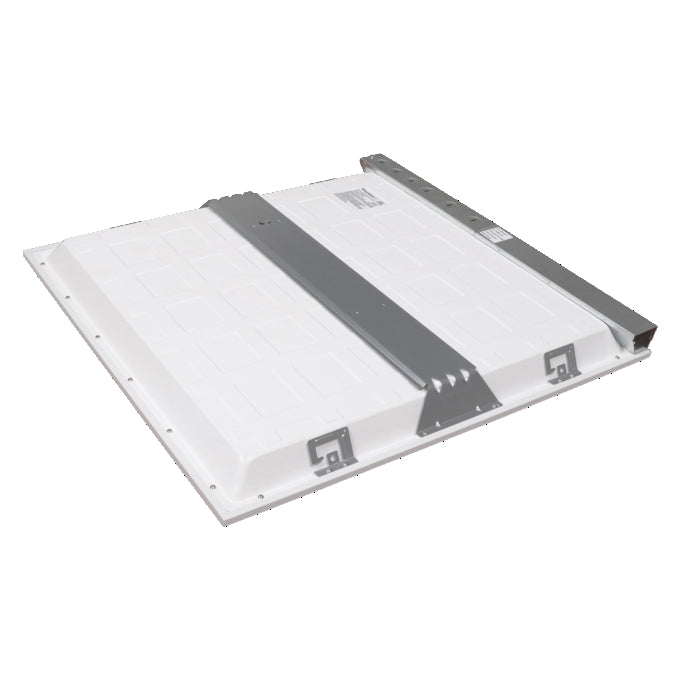

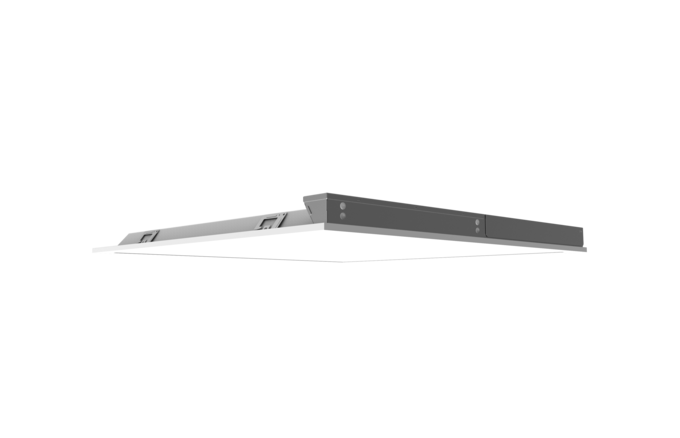

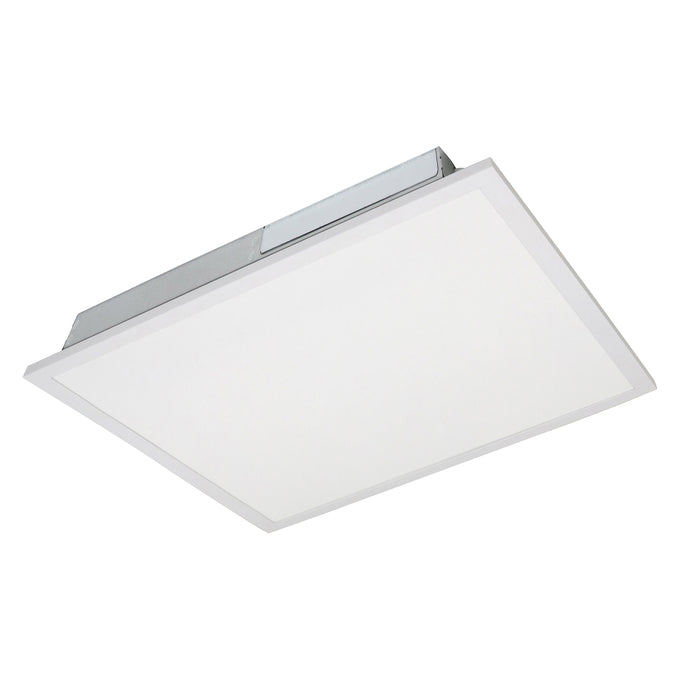

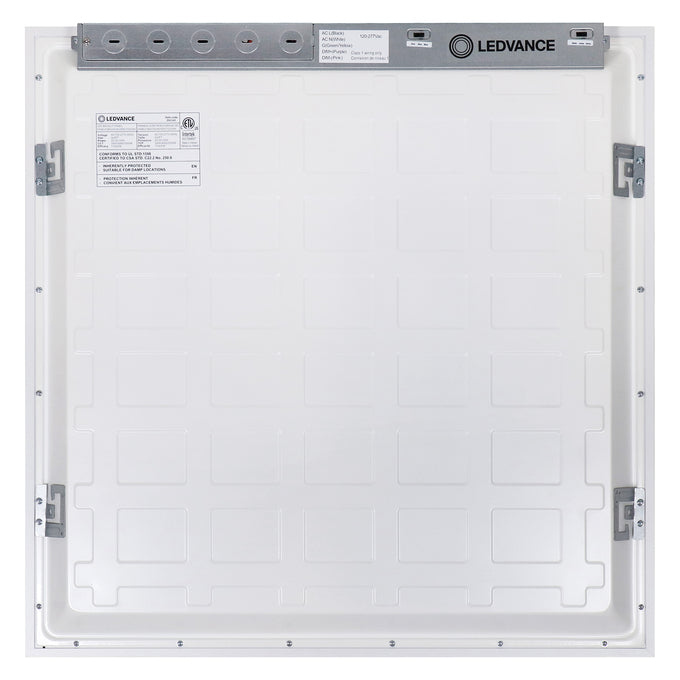

LED Panel – 2x2, 35W, Selectable CCT, 120-277V – PANELF3BS035UNVD8SC722GWH

Key Specification

• Wattage (Selectable): 20W / 30W / 35W
• Voltage Range: 120–277 V
• Power Factor: ≥0.90
• THD: < 20%
• Lumens Output: 2200 / 3300 / 3850 lm
• Efficacy: 105 lm/W
• Color Temperature (CCT): 3500K / 4000K / 5000K (Selectable)
• CRI: 80
• Luminaire Type: LED Panel (2x2)
• Dimming: Yes (0–10V)
• Mounting Options: Recessed / Suspended / Surface
• Application: Indoor
• Housing Material: Steel
• Finish: White
• Dimensions: 23.82 in (L) × 23.82 in (W) × 1.7 in (H)
• Weight: 5.29 lb
• Lifespan: 50,000 hours
• Certifications: RoHS, FCC
• Light Source Type: Non-replaceable

The LED Panel – 2x2, 35W with selectable CCT delivers efficient and uniform lighting for modern indoor spaces. With adjustable color temperatures, it allows you to customize the lighting to suit different environments.
Designed for 120-277V operation, it ensures reliable performance across a wide range of applications. Its slim, low-profile design integrates seamlessly into standard ceiling grids.
This panel is an energy-efficient solution for replacing traditional fluorescent fixtures while reducing maintenance costs.

Ideal Applications

• Offices and corporate environments
• Schools and educational facilities
• Hospitals and healthcare settings
• Retail stores and showrooms
• Conference rooms and workspaces
• Commercial and institutional buildings

Features & What’s Included

This LED panel is engineered to provide high-quality illumination with energy efficiency and flexibility. Operating at 35W, it delivers bright and consistent light suitable for a variety of indoor environments. The selectable CCT feature allows users to switch between different color temperatures, making it easy to adapt lighting for comfort, productivity, or task-specific needs. Its even light distribution minimizes glare and shadows, creating a comfortable visual experience.

Built for versatility and durability, this panel operates on a wide voltage range of 120-277V, ensuring compatibility with different electrical systems. It is designed for easy installation in standard 2x2 ceiling grids, allowing for quick upgrades from traditional fluorescent panels. With its long lifespan and reliable performance, it reduces maintenance requirements and overall operational costs.

Key Feature

• Power: 35W energy-efficient performance
• Voltage: 120-277V wide compatibility
• Selectable CCT for adjustable lighting
• Size: 2x2 standard panel
• Uniform and glare-reduced illumination
• Slim, low-profile design
• Flicker-free and stable lighting
• Long lifespan for reduced maintenance
• Easy installation in ceiling grids
• Suitable for commercial and institutional use
