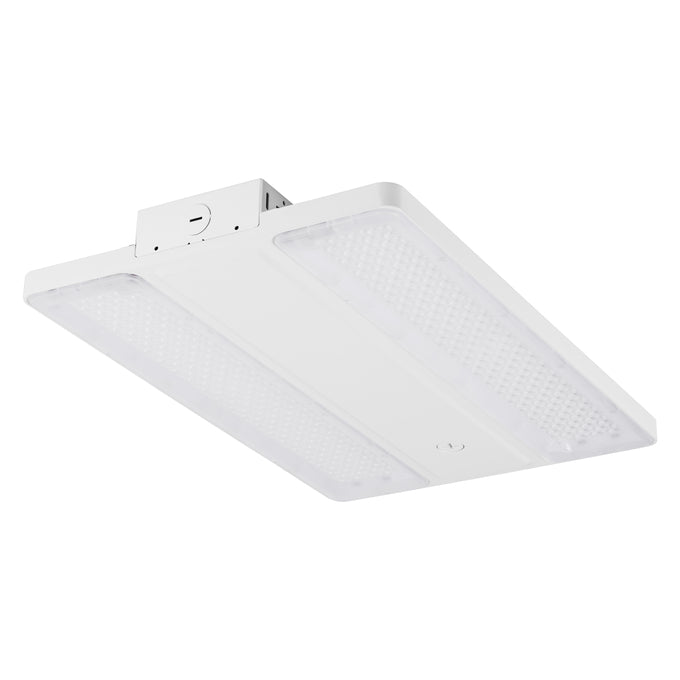

LED Linear High Bay – 2FT, 165W, Selectable CCT, 120-277V – LNHIBAVS165UNHD8SC7ADJWH

Key Specification

• Wattage (Selectable): 105W / 135W / 165W
• Voltage Range: 120–347 V
• Power Factor: ≥0.90
• THD: < 20%
• Lumens Output: 15,750 / 20,250 / 24,750 lm
• Efficacy: 135 lm/W
• Color Temperature (CCT): 3500K / 4000K / 5000K (Selectable)
• CRI: 80
• Luminaire Type: Linear High Bay
• Dimming: Yes (0–10V)
• Mounting: Suspended
• Housing Material: Steel
• Finish: White
• Dimensions: 18.11 in (L) × 11.81 in (W) × 2.01 in (H)
• Weight: 5.51 lb
• Operating Temperature: -40°C to +50°C
• Lifespan: 100,000 hours
• Certifications: RoHS, FCC, cULus
• Light Source Type: SMD (Non-replaceable)

The LED Linear High Bay – 2FT, 165W with selectable CCT delivers powerful, high-efficiency lighting for large indoor spaces. It offers adjustable color temperatures, allowing you to customize the lighting environment as needed.
Designed for 120-277V operation, it ensures reliable performance across a wide range of installations. Its compact linear design provides uniform and high-output illumination.
This high bay fixture is an ideal upgrade from traditional HID or fluorescent systems, reducing energy and maintenance costs.

Ideal Applications

• Warehouses and distribution centers
• Manufacturing and industrial facilities
• Gymnasiums and sports complexes
• Retail stores and large showrooms
• Storage facilities and workshops
• Commercial and high-ceiling environments

Features & What’s Included

This LED linear high bay is engineered for high-performance lighting, delivering 165W of powerful illumination suitable for large and high-ceiling spaces. The selectable CCT feature allows users to choose between different color temperatures, providing flexibility for various applications and preferences. Its design ensures wide and even light distribution, reducing shadows and improving visibility across expansive areas.

Built for durability and efficiency, this fixture operates on a wide voltage range of 120-277V, making it compatible with a variety of electrical systems. It is designed for easy installation and long-term use, with a robust construction that withstands demanding environments. Its energy-efficient LED technology helps reduce operational costs while delivering consistent and reliable lighting performance over time.

Key Feature

• Power: 165W high-output performance
• Voltage: 120-277V wide compatibility
• Selectable CCT for flexible lighting options
• 2FT compact linear design
• High lumen output for large spaces
• Uniform and wide light distribution
• Durable construction for industrial use
• Long lifespan with reduced maintenance
• Energy-efficient LED technology
• Ideal for high-ceiling commercial and industrial applications

Download Spec Sheet
