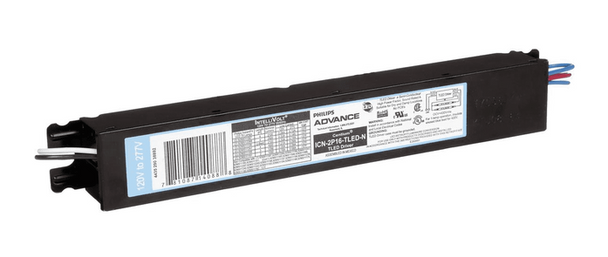

LED Driver T8 LED Electronic Parallel, 35W, 120-277V, 50/60 Hz - ICN2P35TLEDN35M

Key Specification

• Driver Type: T8 LED Electronic
• Lamp Connection: Parallel
• Input Voltage: 120–277 V
• Input Frequency: 50/60 Hz
• Compatible Lamp Type: T8 LED 8 ft (CorePro / InstantFit)
• Lamp Wattage Range: 28 W – 35 W
• Lumens Output Range: 3950 – 4200 lm
• Number of Lamps: 1–2
• Input Power Range: 44 – 77 W
• Input Current Range: 0.17 – 0.64 A
• Power Factor: 0.93 – 0.99
• Total Harmonic Distortion (THD): 10%
• Minimum Start Temperature: -13°F (-25°C)
• Dimensions (Overall): 9.5" (L) × 1.3" (W) × 1.0" (H)
• Mounting Length: 8.9" (22.6 cm)
• Brand: Centium
• Status: Active

The LED Driver T8 Electronic Parallel – 35W, 120–277V is a high-performance and energy-efficient driver designed for T8 LED tube systems. It delivers stable and reliable power output using electronic parallel technology, ensuring consistent illumination in retrofit and new installations. Supporting 50/60 Hz input, it provides dependable operation across a wide range of electrical environments. Its robust and compact design ensures long-term durability and easy integration.

Common Applications:

• T8 LED tube retrofits in commercial office buildings
• Retail lighting in supermarkets and shopping malls
• Educational institutions such as schools and universities
• Healthcare facilities including hospitals and clinics
• Warehouses and industrial lighting systems

Key Features:

• Wide input voltage range: 120–277V
• High power rating: 35W for multi-lamp T8 LED applications
• Electronic parallel design for stable and reliable performance
• Compatible with 50/60 Hz electrical systems
• Energy-efficient operation for reduced power consumption
• Compact and durable construction for long service life
