Sylvania / LEDVANCE

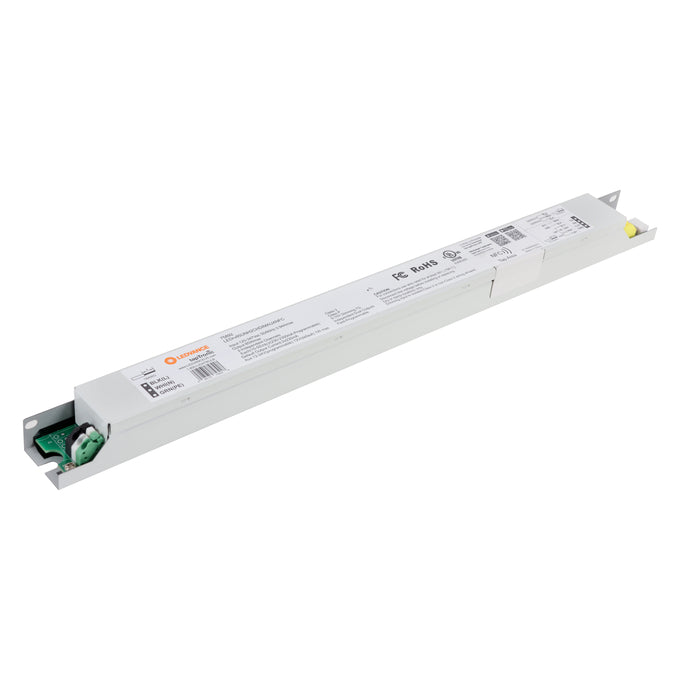

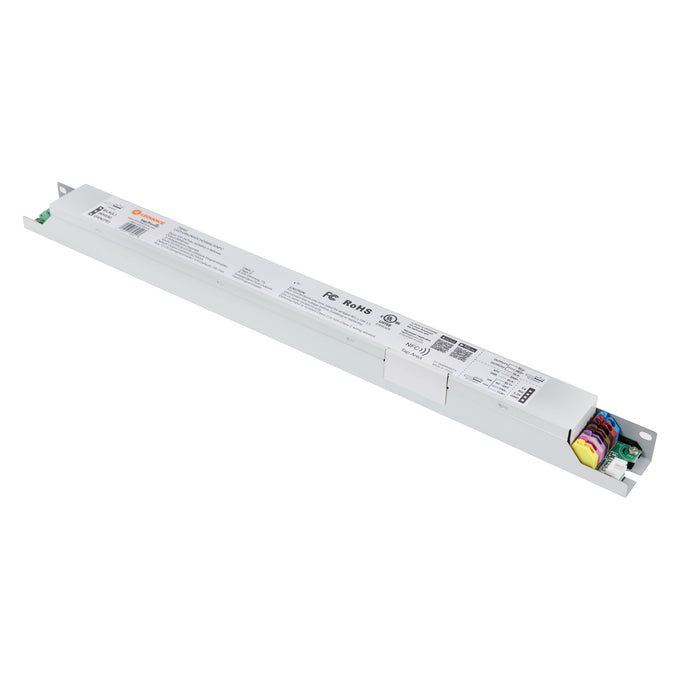

"LED Driver - 120-277V -230- 2300mA, 85W , 1-10V Dimmable - LEDrv85UNH2CHDIMAUXNFC"

"LED Driver - 120-277V -230- 2300mA, 85W , 1-10V Dimmable - LEDrv85UNH2CHDIMAUXNFC"

75892

$102.90 USD
$102.90 USD
Sale Sold out

Key Specification

  • Wattage: 85 W
  • Input Voltage: 120–347 V
  • Supply Frequency: 50–60 Hz
  • Power Factor: ≥ 0.90
  • Total Harmonic Distortion (THD): < 20%
  • Dimming: Yes (1–10V, 1–100% range)
  • Output Type: Constant Current (230–2300 mA per channel, dual independent channels)
  • Channels: 2 independent channels (customizable via app)
  • Auxiliary Output: Selectable AUX
  • Technology: NFC (Near-Field Communication)
  • Dimensions: 14.96" (L) × 1.22" (W) × 1.02" (H)
  • Weight: 0.55 lb
  • Number of Lamps: 1
  • Protection Rating: IP20
  • Protection Class: II
  • Certifications: RoHS, FCC, cULus
  • Additional Feature: 6 kV surge protection
  • Max Case Temperature: 85°C
  • Sound Rating: A
  • Type: Linear LED Driver (tapTronic, dual-channel programmable)

The LED Driver – 120–277V, 230–2300mA, 85W is a high-performance constant-current driver engineered for reliable and efficient LED lighting operation. It supports a wide input voltage range, making it ideal for both commercial and residential installations. With 1–10V dimming capability, it allows smooth and precise control of light output. Its robust design ensures consistent performance and long service life.

Common Applications:

  • Commercial lighting in offices, retail spaces, and malls
  • LED panel lights and linear lighting fixtures
  • Hospitality lighting including hotels and restaurants
  • Indoor architectural and decorative lighting systems
  • Retrofit and upgrade projects for energy-efficient lighting

Key Features:

  • Wide input voltage range: 120–277V for versatile use
  • Adjustable constant current output: 230–2300mA flexibility
  • Power capacity of 85W for medium to high-output LED fixtures
  • 1–10V dimming support for smooth brightness adjustment
  • High efficiency design for energy savings and reduced heat
  • AUXNFC4 interface for smart control and advanced integration
