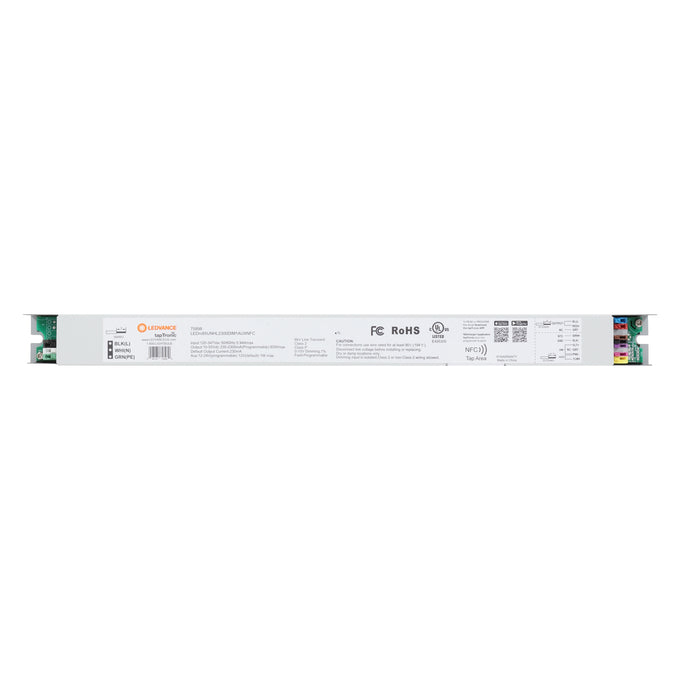

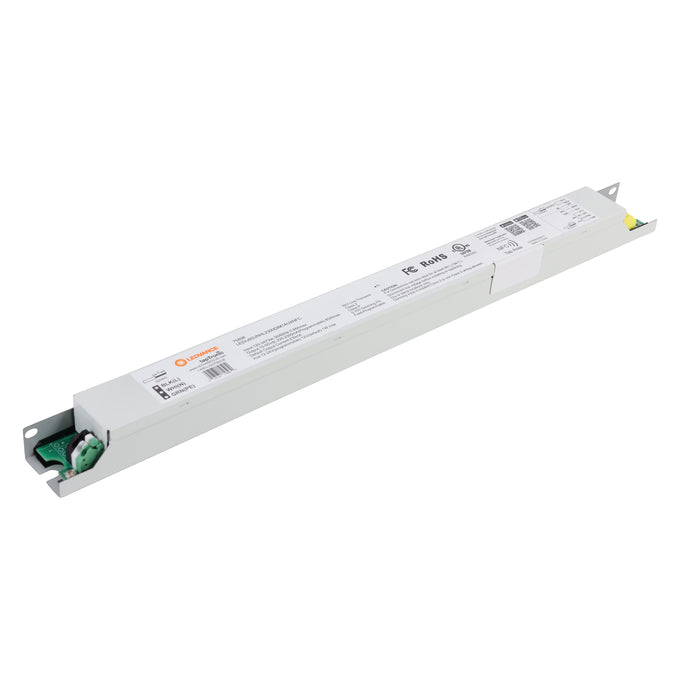

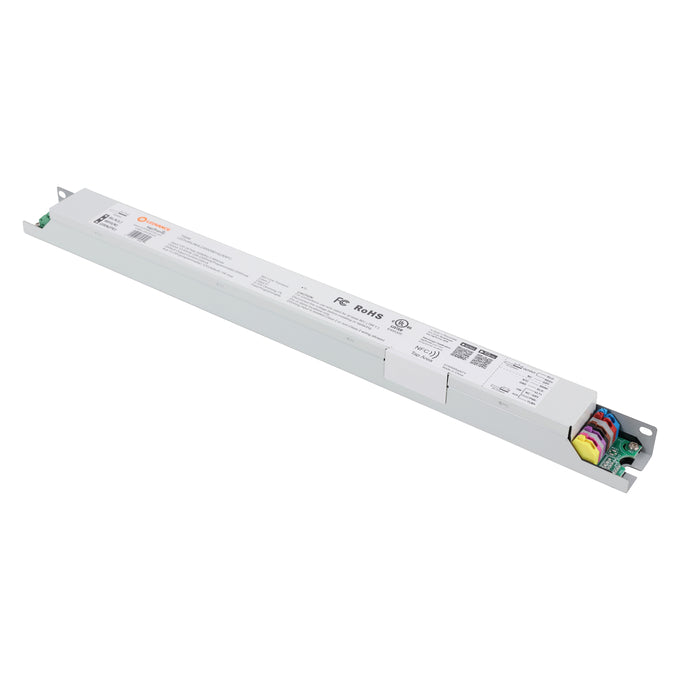

LED Driver - 120-277V - 230-2300mA , 85W , 0-10V Dimmable - LEDrv85UNHL2300DIM1AUXNFC

Key Specification

• Input Voltage: 120–277V

• Output Current: 230–2300mA (Programmable)

• Output Voltage: 8–60V DC

• Wattage: 85W

• Dimming: 0–10V (1–100%)

• Driver Type: Constant Current

• Number of Outputs: 1

• Frequency: 50–60 Hz

• Power Factor: >0.90

• THD: <20%

• Dimensions: 11.02” L × 1.18” W × 0.83” H

• Certifications: cULus, FCC, RoHS

The LED Driver – 85W, 120–277V, 0-10V Dimmable (LEDrv85UNHL2300DIM1AUXNFC) is a high-efficiency and reliable power solution designed for stable LED lighting performance. It provides consistent output with smooth 0-10V dimming control for precise brightness adjustment. Built for versatility, it operates across a wide voltage range suitable for various installations. Its durable construction ensures long-lasting and dependable operation in commercial environments.
